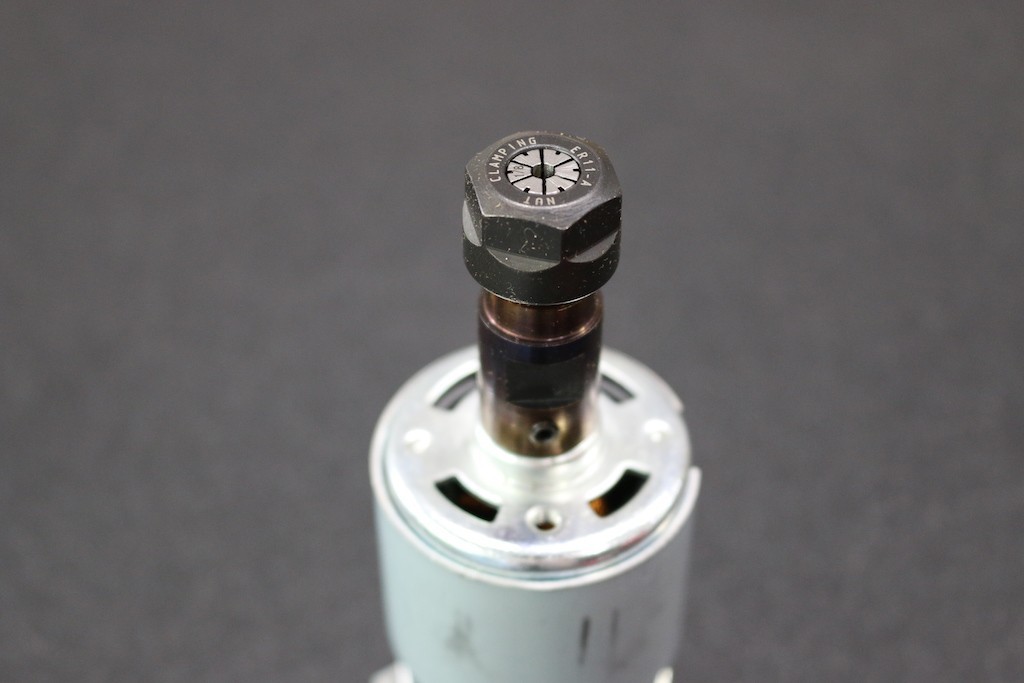

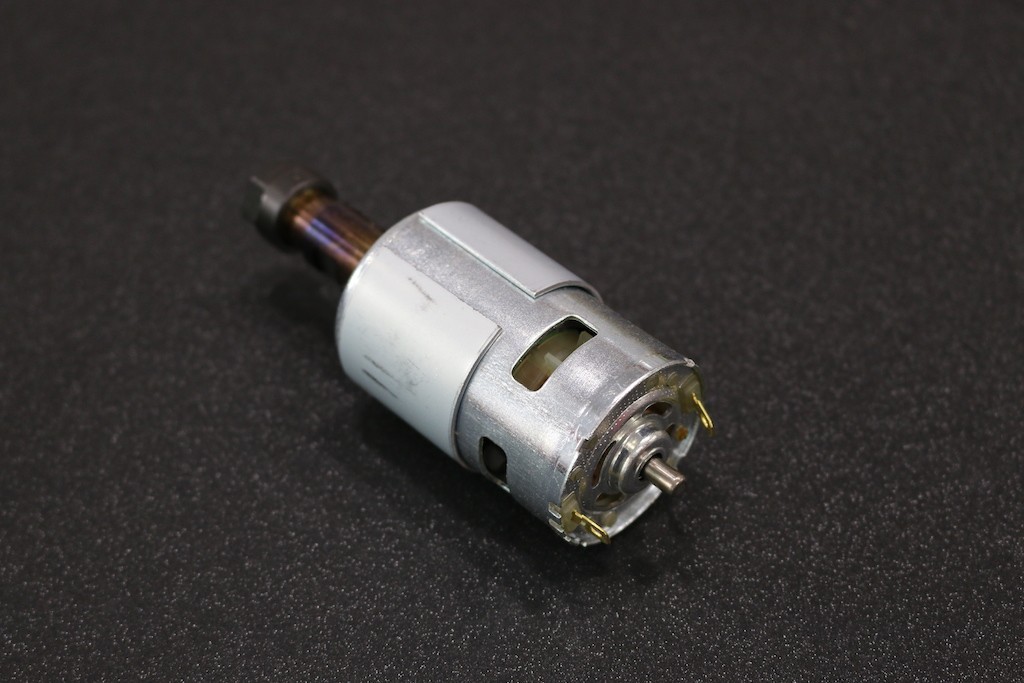

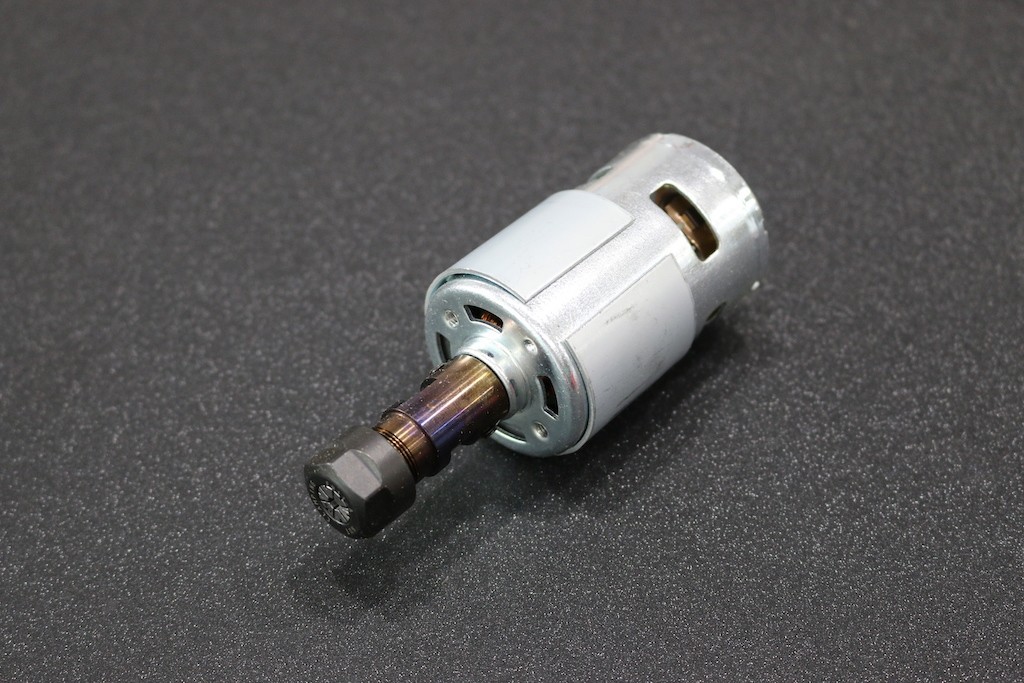

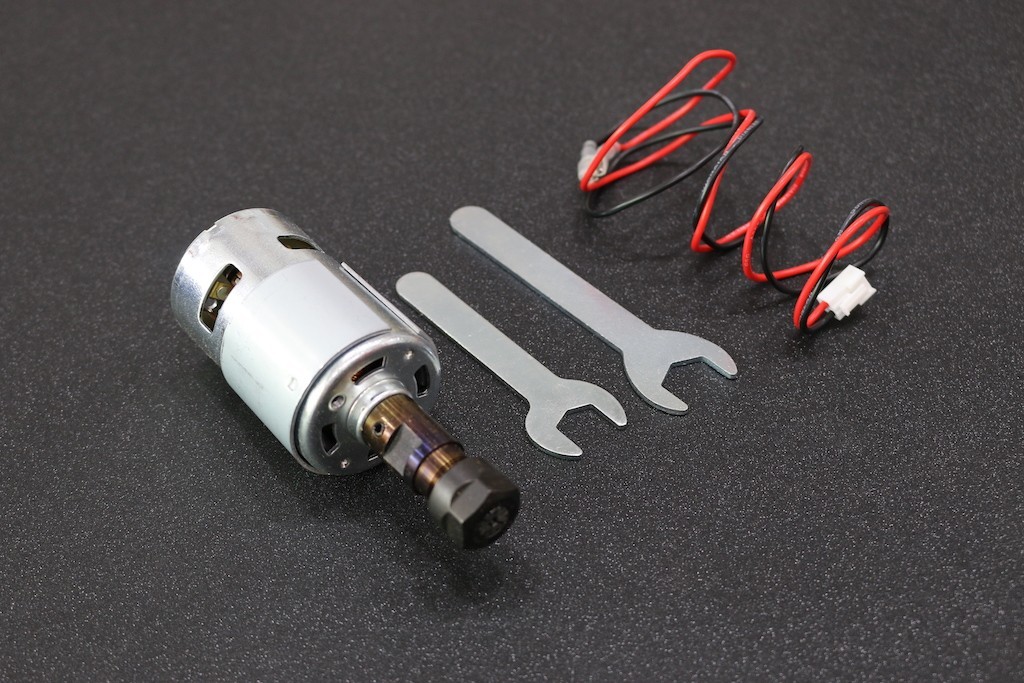

12-36V 4000-12000 RPM 775 Spindle Motor with ER11 Extension Rod

Reference: 3DP0225

Condition: New product

Send to a friend

Send to a friend

12-36V 4000-12000 RPM 775 Spindle Motor with ER11 Extension Rod

Recipient :

Name of your friend ^* :

E-mail address of your friend ^* :

^* Required fields

or Cancel
Print

More info

Detail about 12-36V 4000-12000 RPM 775 Spindle Motor with ER11 Extension Rod

Description

Rated Voltage: 12V-36V
12V Load Current: 1.7A (starting current 2.2A)
Stall Current: 4.7A
Load Power: 20.4W
Speed: ~10000 rev/min

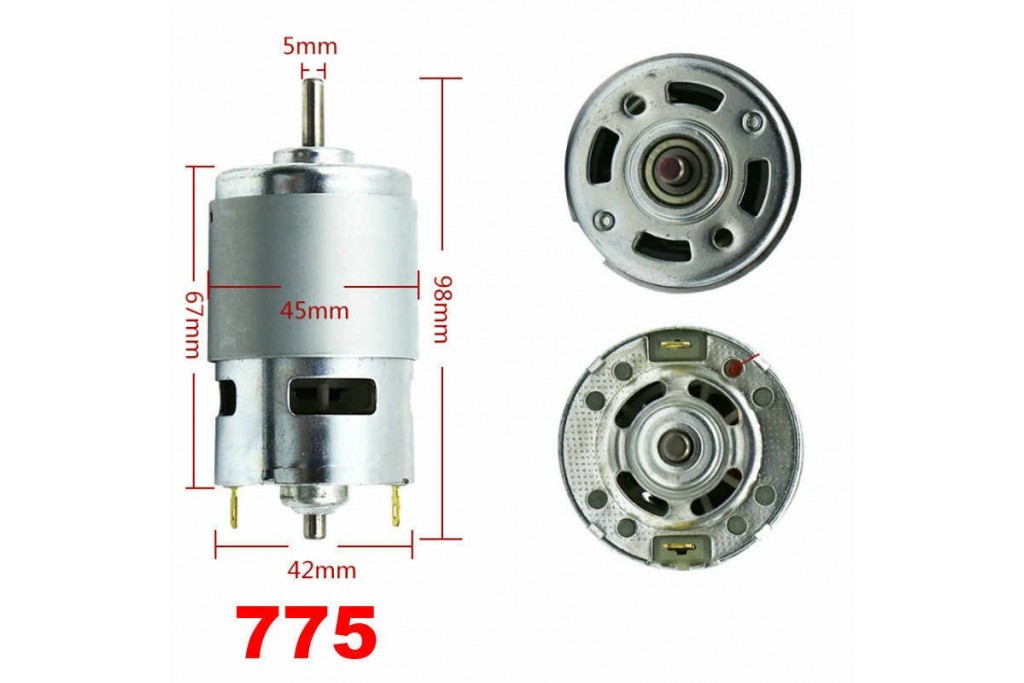

Motor Diameter: approx. 45mm
Motor Step Height: approx. 5mm
Motor Stepped Diameter: approx. 17.4mm
Motor Length: approx. 67mm (excluding shaft)
Shaft Shaft: approx. 5mm
Axis Motor Shaft Length: approx. 16mm
Terminal Spacing: approx. 34mm
Mounting Hole Pitch: approx. 29mm
Installation Hole Diameter: M4

Specifications

Drive : Motor
Application : Milling
Operation Speed : 10000(24V)
Motor Shaft : 5mm
Model Number: ER11 Spindle Motor
Voltage : 12~36V
