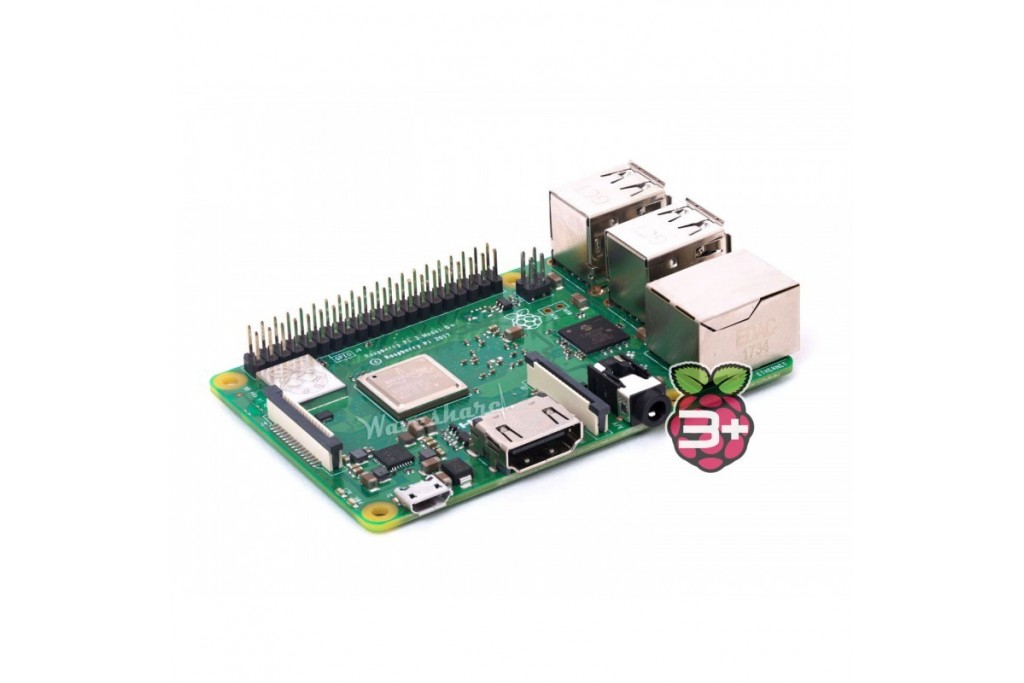

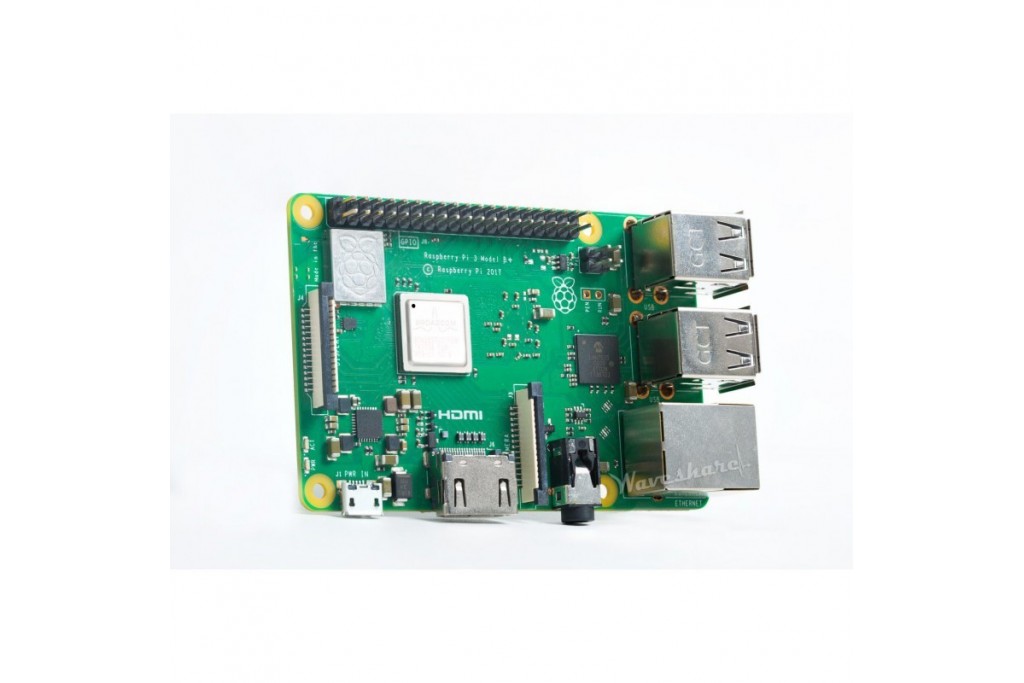

Raspberry Pi 3 Model B+, the Improved Version

Raspberry Pi 3 Model B+, the Third Generation Pi, the Improved Version

Overview

Raspberry Pi 3 Model B+ is the improved version of Raspberry Pi 3 Model B, the key improvements include:

• A 1.4GHz 64-bit quad-core ARM Cortex-A53 CPU
• Dual-band 802.11ac wireless LAN and Bluetooth 4.2
• Faster Ethernet (Gigabit Ethernet over USB 2.0)
• Power-over-Ethernet support (with separate PoE HAT)
• Improved PXE network and USB mass-storage booting
• Improved thermal management

Raspberry Pi 3 Model B+ Specifications

• Broadcom BCM2837B0, Cortex-A53 (ARMv8) 64-bit SoC @ 1.4GHz
• 1GB LPDDR2 SDRAM
• 2.4GHz and 5GHz IEEE 802.11.b/g/n/ac wireless LAN, Bluetooth 4.2, BLE
• Gigabit Ethernet over USB 2.0 (maximum throughput 300 Mbps)
• Extended 40-pin GPIO header
• Full-size HDMI
• 4 USB 2.0 ports
• CSI camera port for connecting a Raspberry Pi camera
• DSI display port for connecting a Raspberry Pi touchscreen display
• 4-pole stereo output and composite video port
• Micro SD port for loading your operating system and storing data
• 5V/2.5A DC power input
• Power-over-Ethernet (PoE) support (requires separate PoE HAT)
