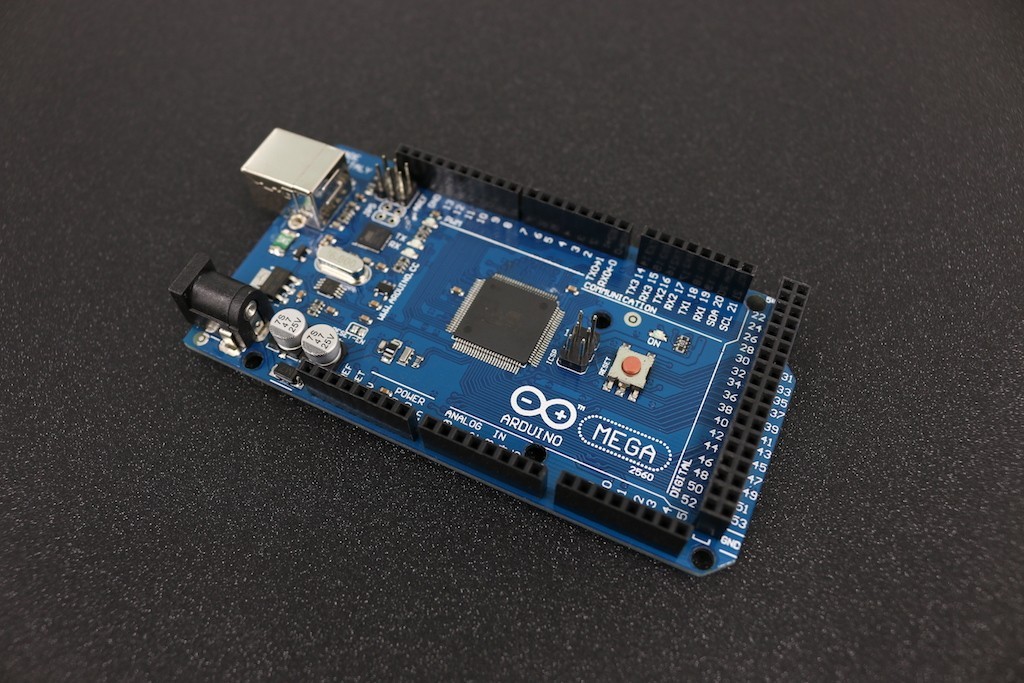

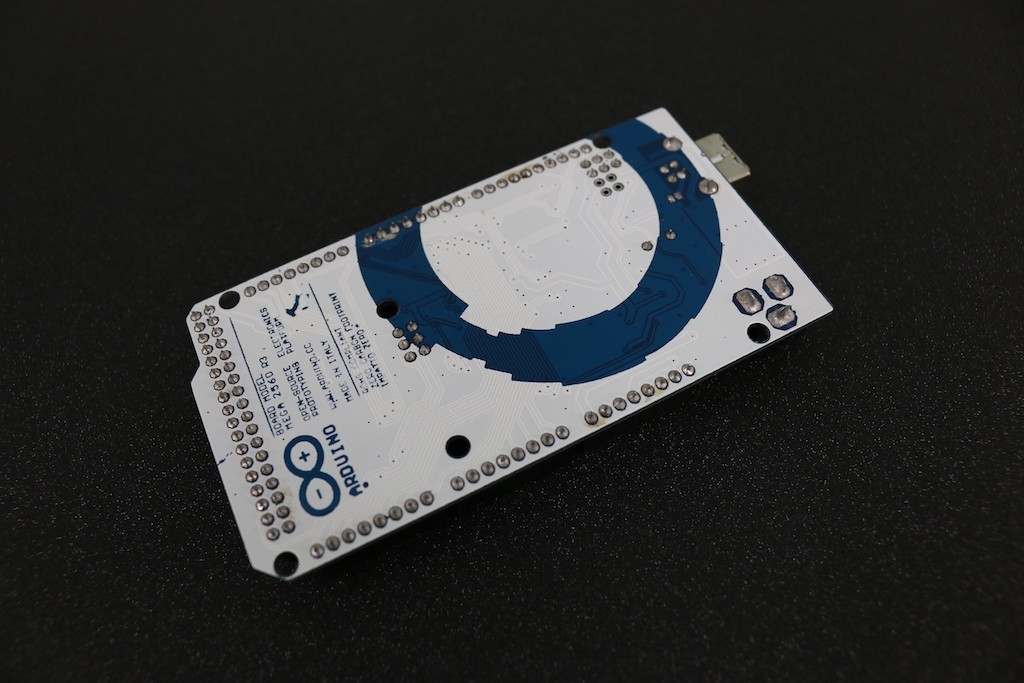

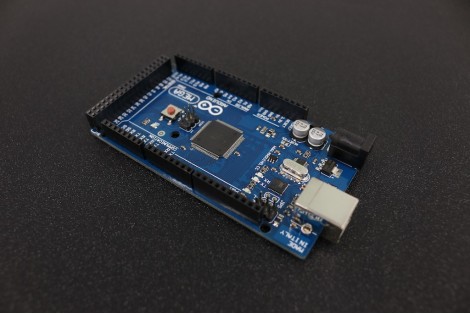

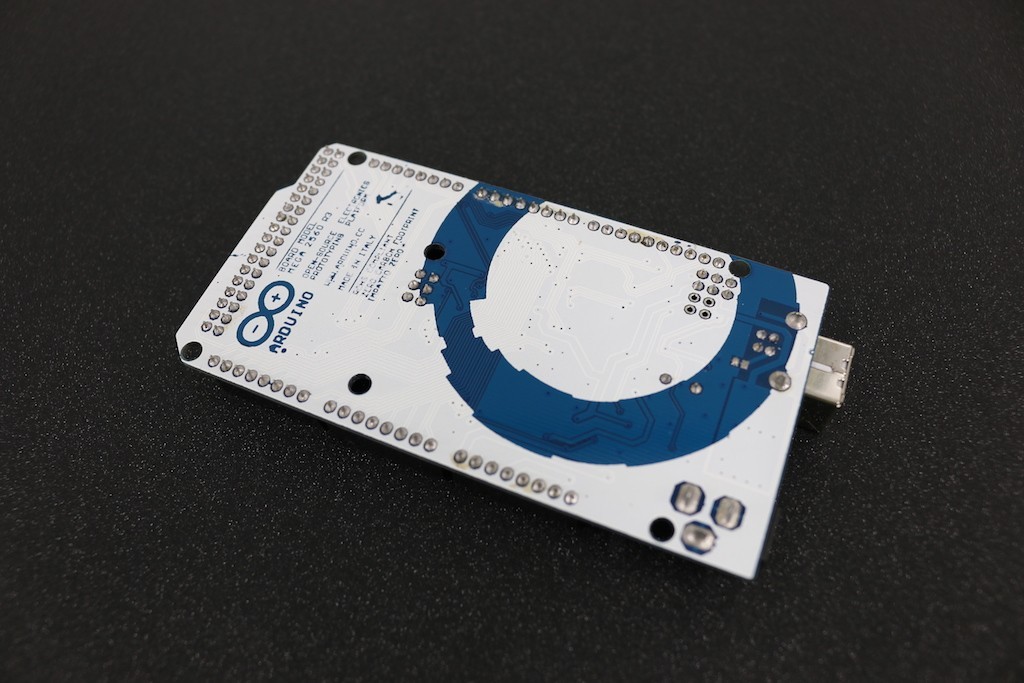

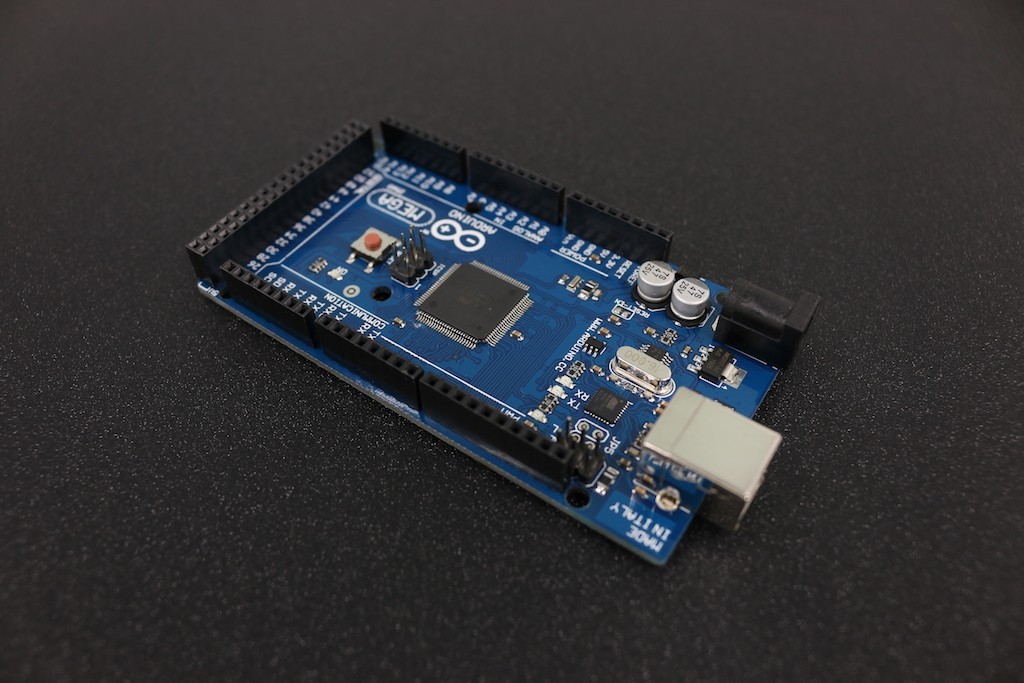

Arduino Mega 2560 Dev Board

The Arduino Mega 2560 is a microcontroller board based on the ATmega2560. It has 54 digital input/output pins (of which 15 can be used as PWM outputs), 16 analog inputs, 4 UARTs (hardware serial ports), a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started. The Mega is compatible with most shields designed for the Arduino Duemilanove or Diecimila. The Mega 2560 is an update to the Arduino Mega , which it replaces. The Mega2560 differs from all preceding boards in that it does not use the FTDI USB-to-serial driver chip. Instead, it features the ATmega16U2 (ATmega8U2 in the revision 1 and revision 2 boards) programmed as a USB-to-serial converter.

Specifications

• Microcontroller : ATmega2560
• Operating Voltage : 5V
• Input Voltage (recommended) : 7-12V
• Input Voltage (limits) : 6-20V
• Digital I/O Pins : 54 (of which 15 provide PWM output)
• Analog Input Pins : 16
• DC Current per I/O Pin : 40mA
• DC Current for 3.3V Pin : 50mA
• Flash Memory : 256 KB of which 8 KB used by bootloader
• SRAM : 8 KB
• EEPROM : 4 KB
• Clock Speed : 4 Mhz
