LCD Keypad Shield for Arduino Dev Board

DB0021

New product

More info

Detail about LCD Keypad Shield Board

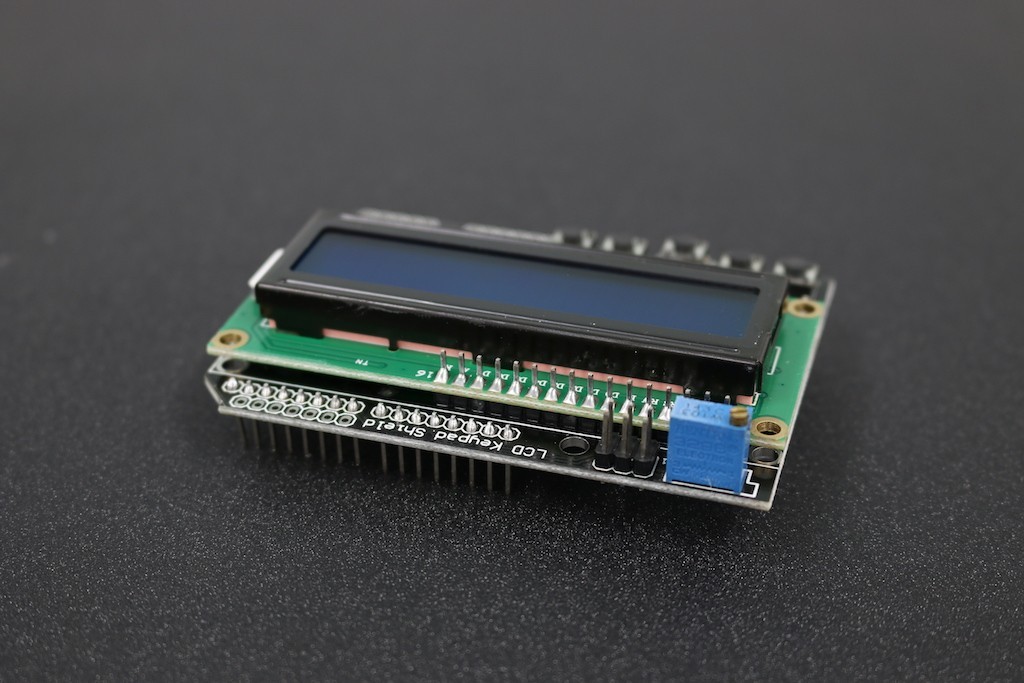

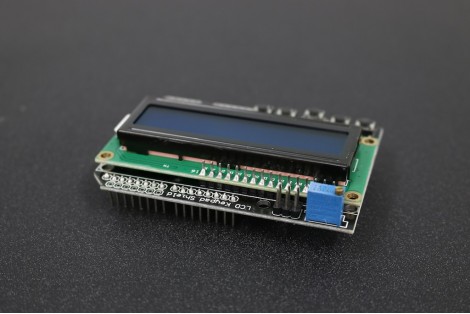

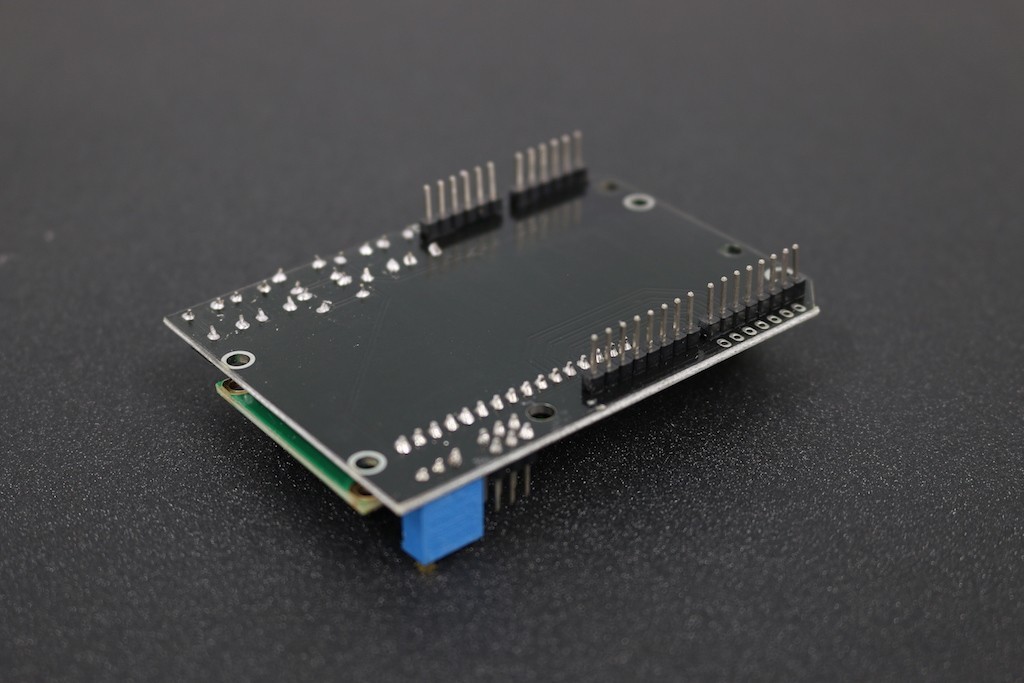

The LCD Keypad Shield is Arduino compatible boards,to provide a user-friendly interface that allows users to display what they want to and make selections etc. it consists of a 1602 white character blue backlight LCD. The keypad consists of 5 keys select, up, right, down and left. To save the digital IO pins, the keypad interface uses only one ADC channel(AD0). The key value is read through a 5 stage voltage divider. The 16 x 2 LCD Display and Keypad shield can plug directly onto the Arduino and Arduino compatible boards. The LCD panel displays characters in white with a blue backlit and can display up to two lines of 16 characters. The shield includes 6 momentary push button that can be used to implement a 5 buttons keypad including up, down, left, right and select function. The sixth push button brings out the Arduino’s reset button to the top of the shield. The 16 x 2 LCD Display and Keypad shield interfaces with the Arduino board using digital pin 4 to10 and analog pin 0. The contrast can be adjusted via a trim pot and the backlit can be turn on and off. The shield is 5V compatible.

Descriptions

  • The keypad interface uses only one ADC channel
  • Potentiometer to control contrast of LCD
  • Mate with Arduino and Arduino compatible boards
  • Display up to 16 characters by 2 line
  • Integrated the SPLC780D 16 COMs x 40 SEGs dot-matrix LCD controller and driver
  • 5V operating voltage
  • 5 button keypad – up, down, left, right, and select
  • Brings out the Arduino’s reset button to the top of the shield
