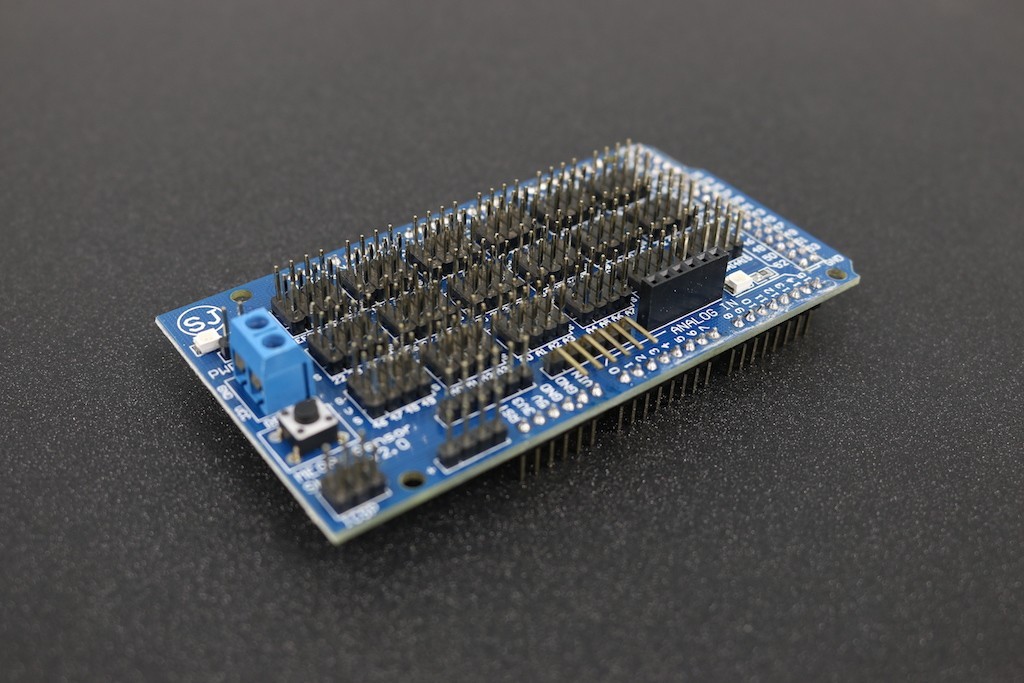

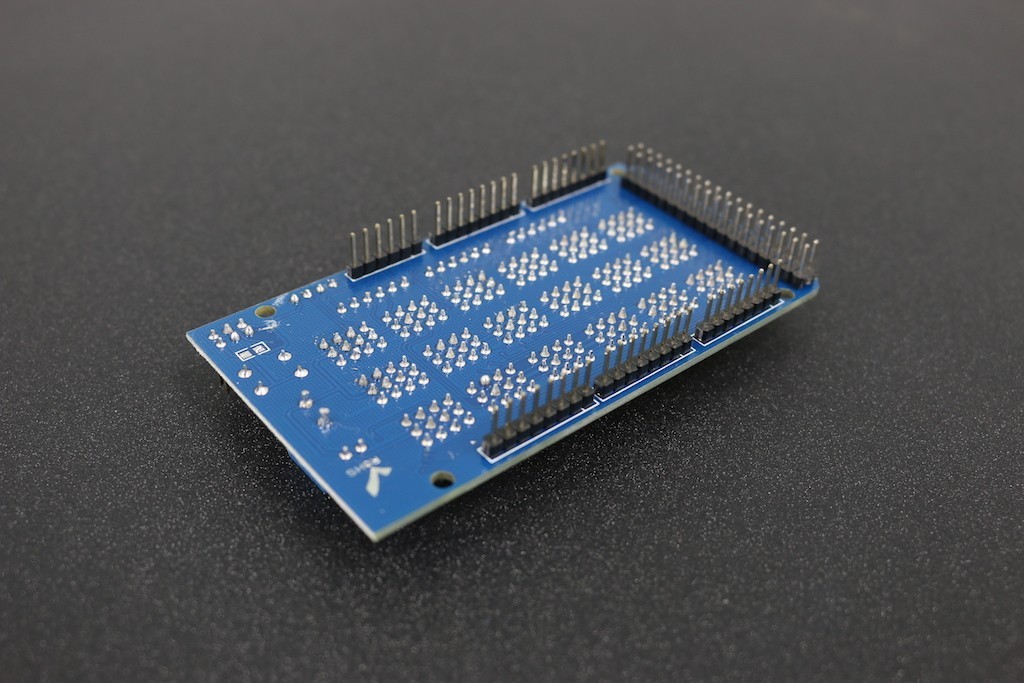

Mega Sensor Shield for Arduino Dev Board

New Arduino MEGA Sensor Shield V1.0 dedicated sensor expansion board set market expansion board advantages in one design, PCB Immersion Gold processed all of the digital and analog interfaces, the motherboard will not only be extended to the steering gear line order form ad hoc Bluetooth module communication interface, SD card module communication interface, APC220 radio frequency module communication interface, and RB URF v1.1 ultrasonic sensor interface, and independent expansion easier to use convenient. Arduino beginner, do not have cumbersome complex circuit connection and headache, will simplify the circuit on the true meaning of this sensor expansion board can easily connect the commonly used sensor, a sensor only needs a universal 3P sensor cable (regardless of digital cable and analog cable), complete the circuit connection, write the Arduino program is downloaded to the Arduino MEGA controller reads the sensor data, or receive wireless module return data, operation processing, final Easily complete your own interactive works.

The board use of Immersion Gold PCB processing technology, the motherboard will not only all the digital and analog interfaces servo extended line order form out, but also ad hoc Bluetooth module communication interface, SD card module communication interface, APC220 radio frequency module communication interface, and RB URF v1 .1 ultrasonic sensor interface, independent of a more extended use convenient. For beginners, not for the cumbersome and complex circuit connection and a headache, and this sensor expansion board truly simplify the circuit can easily be used to connect the sensor, a sensor requires only a general 3P sensor wire (regardless of digital cable and analog cable), complete the circuit connection, the preparation of the corresponding program to the MEGA Arduino controller reads the sensor data, or receive wireless module return data, after arithmetic processing, and ultimately easy to complete your own interactive work.

Features

• Frame Dimensions: 1.35x1.58"
• Active Display Dimensions: 1.2"x1.2"
• CD Logic - 3.3V @ 2-3mA
• LED Backlight - 7V @ 40-50mA (very bright)
• Full 4,096 Color Display
• Uses the Epson S1D15G10 or Philips PCF8833 Controller
• JSupport IIC interface
• Support 32 road Servo Motor Drive Shield interface.
• Support bluetooth module communication interface.
• Support SD card module communication interface.
• Support APC220 wireless RF modules communication interface.
• Support RB URF ultrasonic sensors interface.
• Support LCD serial and parallel interface.
• Support Kinds of interface and can be fully compatibles with Arduino Mega.
• Size:10cm x 5.5cm
