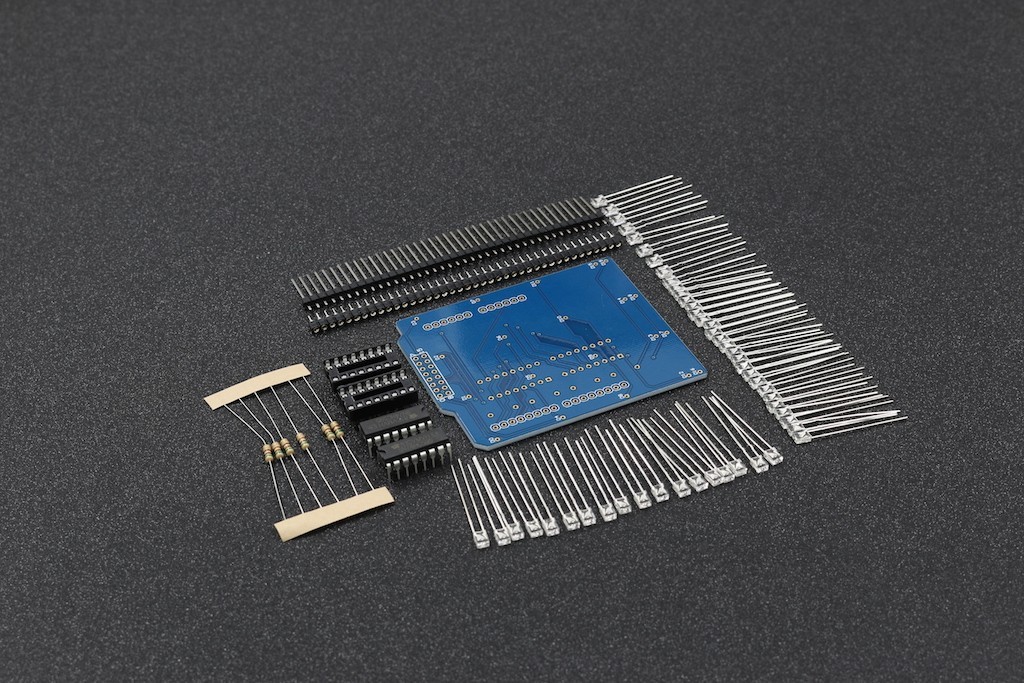

4X4X4 Blue LED 3D DIY Light Cube Kit

View larger

Previous

Next

4X4X4 Blue LED 3D DIY Light Cube Kit

Reference: MD0295

Condition: New product

Send to a friend

Send to a friend

4X4X4 Blue LED 3D DIY Light Cube Kit

Recipient :

Name of your friend ^* :

E-mail address of your friend ^* :

^* Required fields

or Cancel
Print

More info

Detail about 4X4X4 Green LED 3D DIY Light Cube Kit

Specifications

The 4x4x4 luminaire included uses a 64 cuboid LED, and an LED control for the Arduino. The expansion board uses two 74HC595 register shift chips, using eight I / Os can 4x4x4 lamp, this is the hardware needed less than the other 4x4x4 cubic lamp Expansion board (20 I / Os required for control)
Description of the circuit The display part of the 4x4x4 lamp consists of 64 cuboid LEDs, uses two 74HC595shift registration chips to control the LED anode, 4 I / O ports for Arduino controls 4 standard LED cathodes.
Electrical parameters Control Module: for arduino control board PCB size: 61 * 74mm LED Color: Green / Blue / Yellow / Red
