Official OV5647 5MP 1080p 30fps Raspberry Pi Camera Board Module

Description

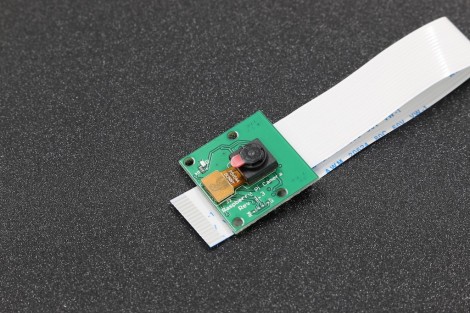

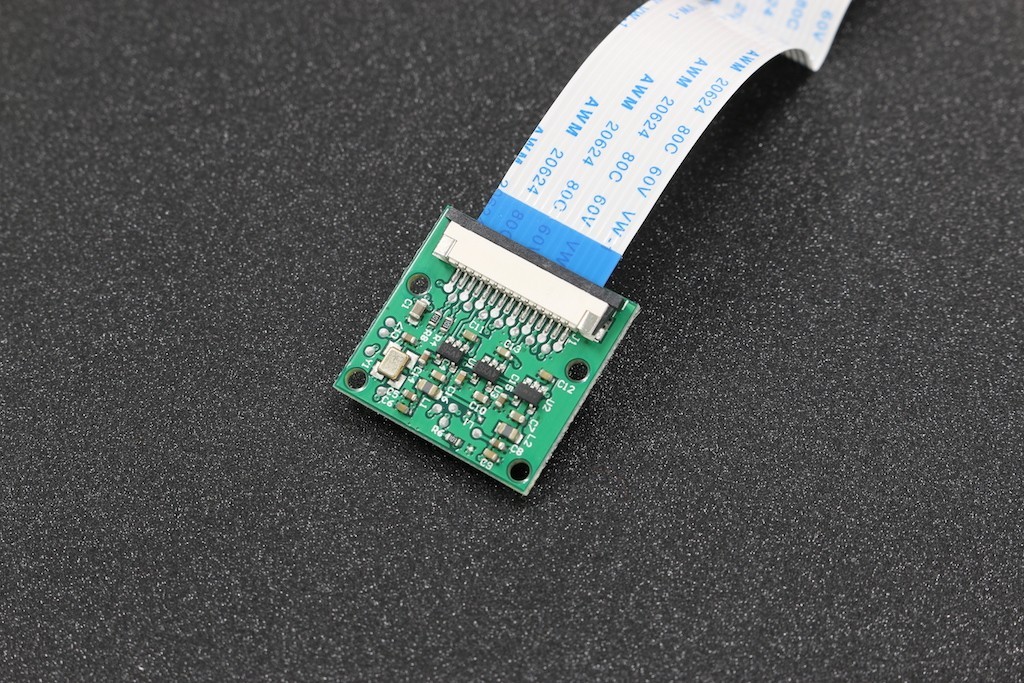

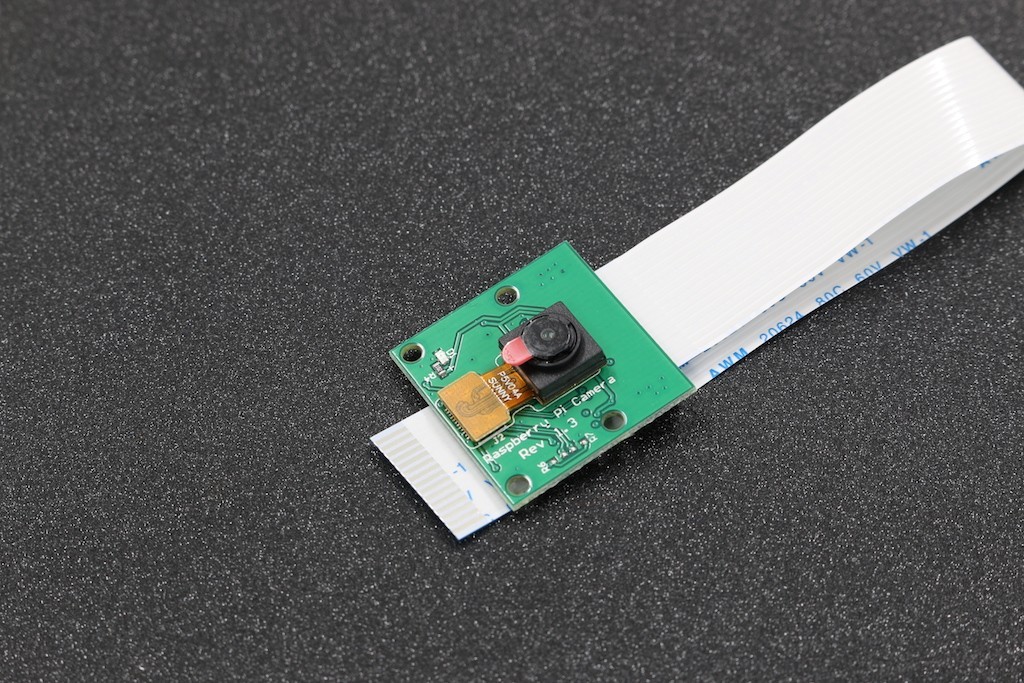

        The Raspberry Pi Camera Board plugs directly into the CSI connector on the Raspberry Pi. It's able to deliver a  clear 5MP resolution image, or 1080p HD video recording at 30fps! Latest Version 1.3! Custom designed and manufactured by the Raspberry Pi Foundation in the UK, the Raspberry Pi Camera Board features a 5MP (2592?1944 pixels) Omnivision 5647 sensor in a fixed focus module.

        The module attaches to Raspberry Pi, by way of a 15 Pin Ribbon Cable, to the dedicated 15-pin MIPI Camera Serial Interface (CSI), which was designed especially for interfacing to cameras. The CSI bus is capable of extremely high data rates, and it exclusively carries pixel data to the BCM2835 processor.

        The board itself is tiny, at around 25mm x 20mm x 9mm, and weighs just over 3g, making it perfect for mobile or other applications wheresize and weight are important. The sensor itself has a native resolution of 5 megapixel, and has a fixed focus lens onboard.

         In terms of still images, the camera is capable of 2592 x 1944 pixel static images, and also supports 1080p @ 30fps, 720p @ 60fps and 640x480p 60/90 video recording. The camera is supported in the latest version of Raspbian, the Raspberry Pi's preferred operating system.

Specifications

The Raspberry Pi Camera Board Features:

• Fully Compatible with Both the Model A and Model B Raspberry Pi

• 5MP Omnivision 5647 Camera Module

• Still Picture Resolution: 2592 x 1944

• Video: Supports 1080p @ 30fps, 720p @ 60fps and 640x480p 60/90 Recording
  15-pin MIPI Camera Serial Interface - Plugs Directly into the Raspberry Pi Board
  Size: 20 x 25 x 9mm

• Weight 3g

• Fully Compatible with many Raspberry Pi cases
