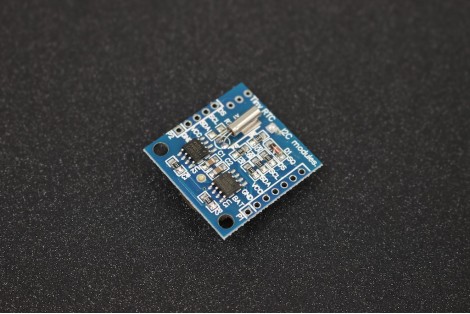

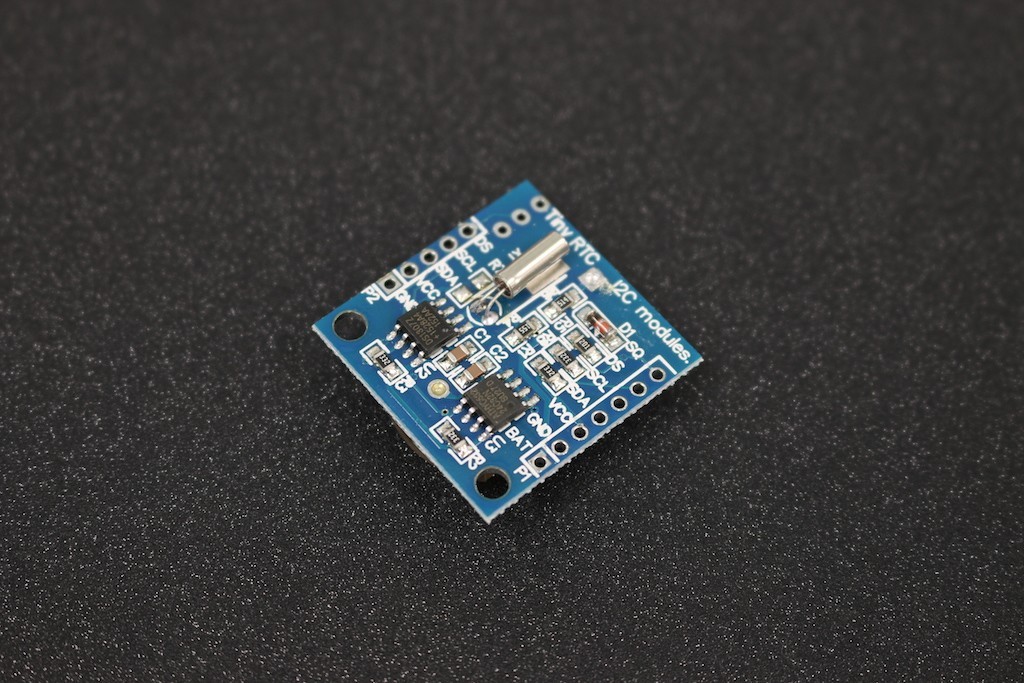

I2C RTC DS1307 AT24C32 Real Time Clock Module

View larger

Previous

Next

I2C RTC DS1307 AT24C32 Real Time Clock Module

Reference: MD0004

Condition: New product

Send to a friend

Send to a friend

I2C RTC DS1307 AT24C32 Real Time Clock Module

Recipient :

Name of your friend ^* :

E-mail address of your friend ^* :

^* Required fields

or Cancel
Print

More info

Detail about DS1307 RTC Module

This a custom designed module for the DS1307 Real Time Clock. The module comes fully assembled and pre-programmed with the current time (ok, so it's our current time - MST). The included Lithium coin cell battery (CR1225 41mAh) will run the module for a minimum of 9 years (17 years typical) without external 5V power. The DS1307 is accessed via the I2C protocol. We've written a test-bed to program the modules. This test-bed code should give you some insight on how to interface the module to any microcontroller using our example software I2C and BCD routines.

Specifications

Communication : Two wire I2C interface
Hour : Minutes : Seconds AM/PM
Format : Day Month, Date - Year
Leap year compensation
Accurate Calendar up to Year 2100
DS1307 based RTC with LIR2032 battery (Battery included) • 1Hz output pin
56 Bytes of Non-volatile memory available to user

Data Sheet

http://datasheets.maximintegrated.com/en/ds/DS1307.pdf
