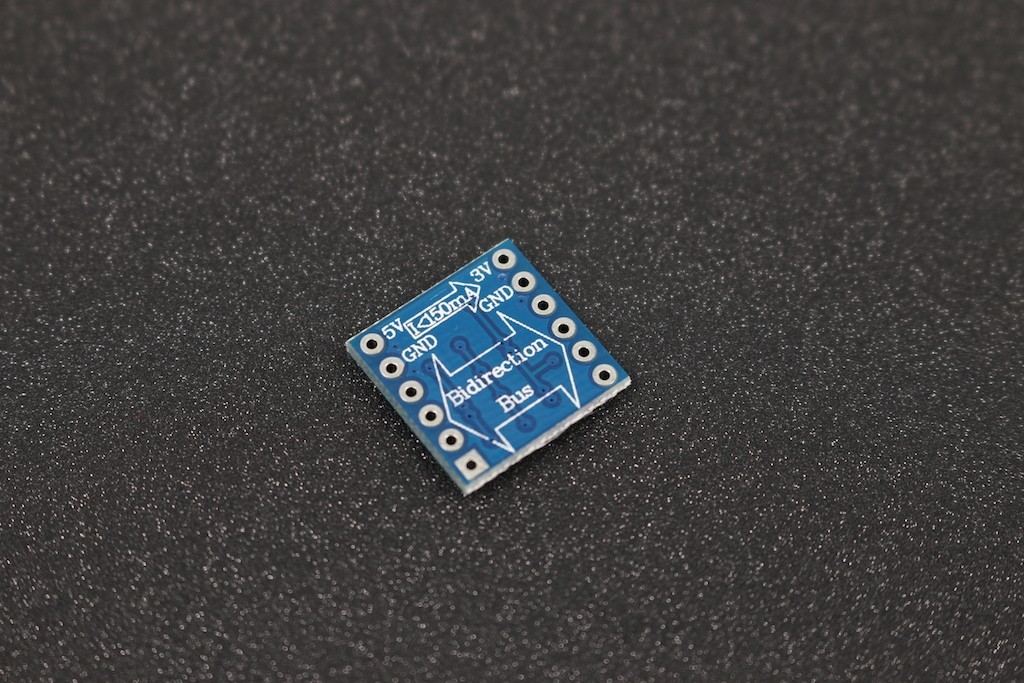

Bidirectional Level Translator Module

MD0009

New product

More info

Detail about bidirectional level Module

I2C bidirectional level translator. Used to interface 3.3V I2C device to 5V Arduino or MCU device. Can also interface UART, 1- wire, SPI signals On board 5V>3.3V 150mA regulator.

This module use four MOSFET for level translation

  • 5V connect to 5V system power (required)
  • 3V connect to 3V system power output
  • GND connect to ground
  • Bus connect to each bus translation channel

Specifications

  • Is Customized : Yes
  • Power : Medium Power
  • Usage : Transient Voltage Suppressor
  • Structure : PNP
  • Special Function : Common Point Contact Diode
  • Frequency : High Frequency
  • Type : Flashing Light IC
  • Construction : Schottky Diode
  • Material : Silicon
  • Install Style : Plug-in
  • Function : Power Triode
