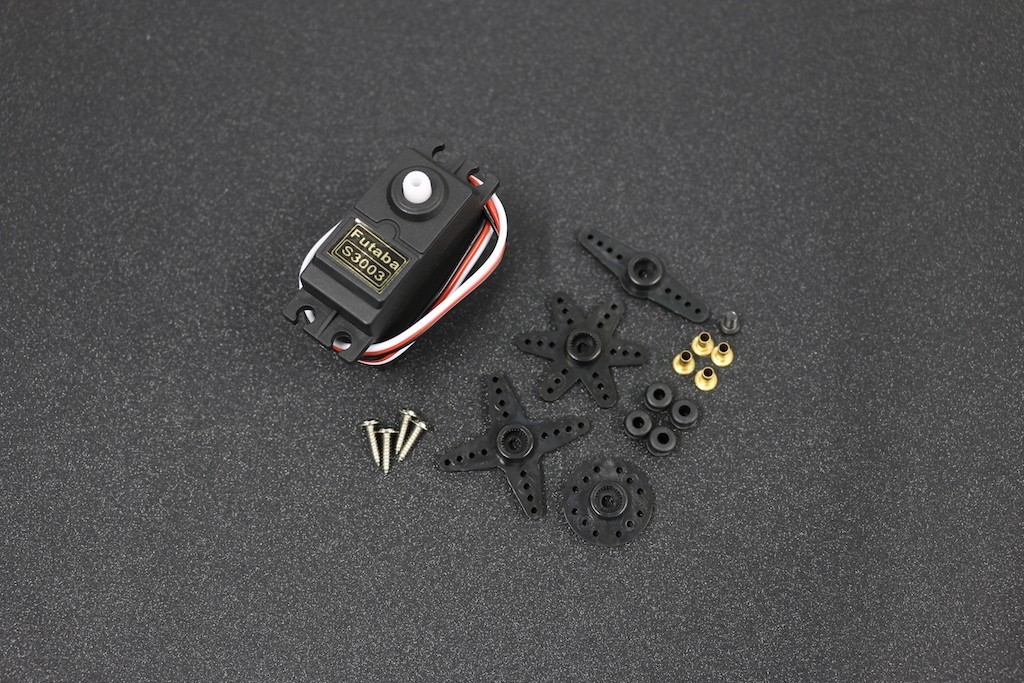

Futaba S3003 Servo Motor

Genuine Futaba servos are your easiest and most efficient way to upgrade your Futaba system. No other system provides you access to as many different sizes, shapes and functions as Futaba. Currently there are 28 Futaba servos available ranging from the micro, 0.34 ounce S3103 to the mighty 194 ounce-inches of torque of the S3801. The performance and reliability of our servos have made them the favorite choice of professionals including top RC competition specialists and motion picture special effect artists.

New model Futaba servos take advantage of the latest developments in core-less motor design. Others feature ball bearings and precision ground metal gears for smooth action and durability.

All Futaba servos include these features:

• SMT Construction --Surface Mount Technology improves
• reliability in applications where there is vibration
• Impact Resistant, Fuel-proof Case -- High impact plastic is designed to withstand minor crashes and the effects of model fuel
• Through-the-hole Circuit Board Plating -- Eliminates the need for wires or leads
• Heavy Duty Output Shaft -- Designed not to break, and offers versatility when installing the servo horn.
• Use our servo selection form to find the right servo(s) for your application.

• Bearing Type : Bushing
• Torque : 44 oz-in (3.2 kg-cm) at 4.8V
• 57 oz-in (4.1 kg-cm) at 6.0V
• 19 sec/60 6.0V
• Speed : .23 sec/60 4.8V
• Length : 1.6" (40mm) X Width: .8" (20mm) X Height: 1.4" (44mm)
• Connector Wire Length 150MM
• Weight : 1.3 ounce (37.2 grams)

Data Sheet

http://www.es.co.th/schemetic/pdf/et-servo-s3003.pdf
