Detail about XY Joystick Module

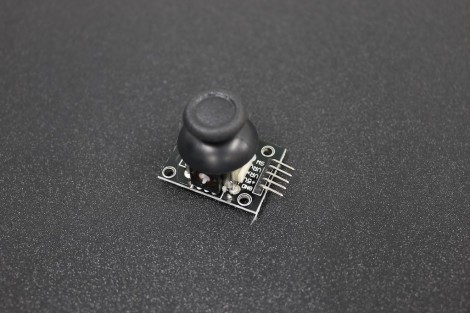

This is a Joystick module that has X,Y analog outputs and has a switch that detects button press. The joystick is made up of two passive potentio-meters (variable resistors) and a push button and therefore can be used at any standard voltage levels.

Features

Dimensions: 4 X 2.6 X 3.2 CM
Potentiometers for 2 axes
Switches:1 switch
Connector: +5Vcc - GND - VRx - VRy - SW

Connections

VCC
GND
VRx
VRy
SW

Applications

Joystick that can be interfaced with Arduino, Raspberry Pi, and other Microcontrollers and Embedded Boards
Joystick for custom designed/experimental RC planes, RC Cars
Joystick for CNC Machines or other industrial controls
Electronic games pads similar to PlayStation.
