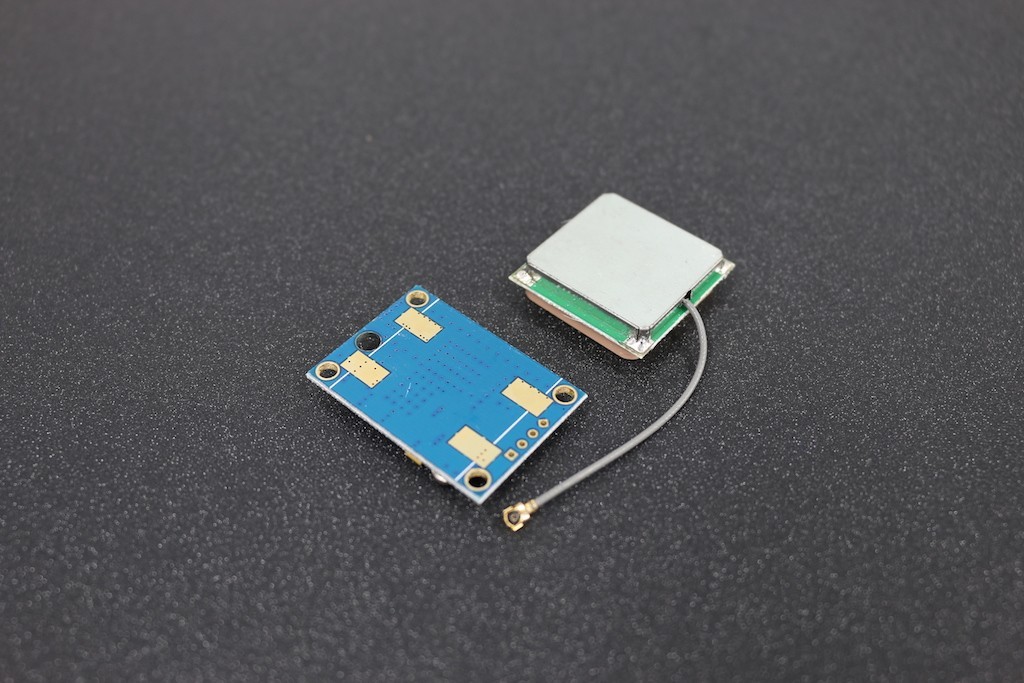

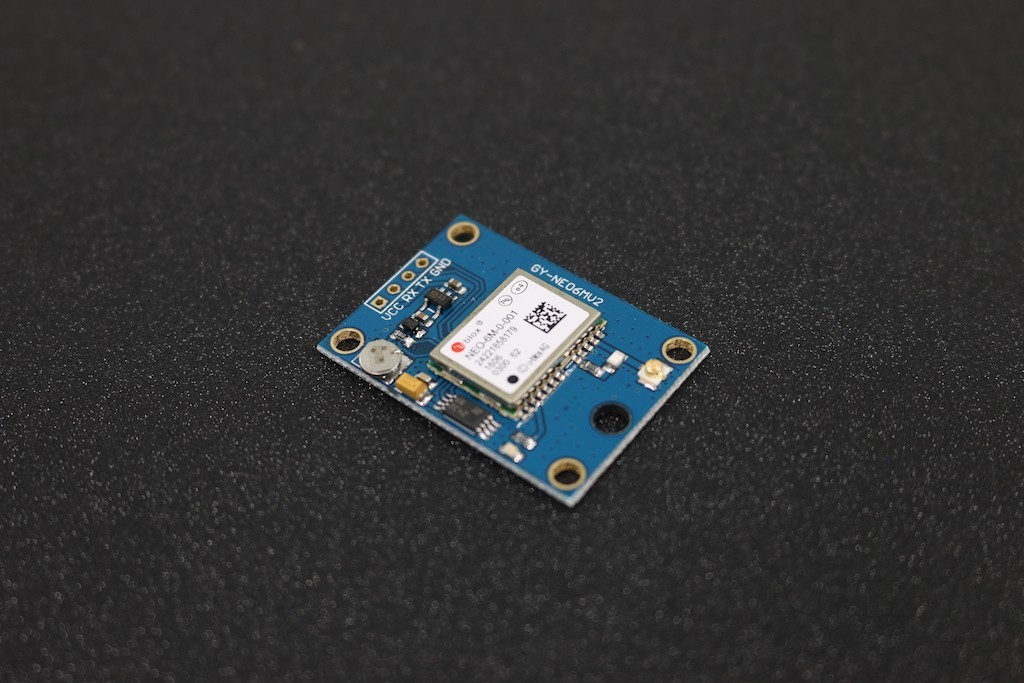

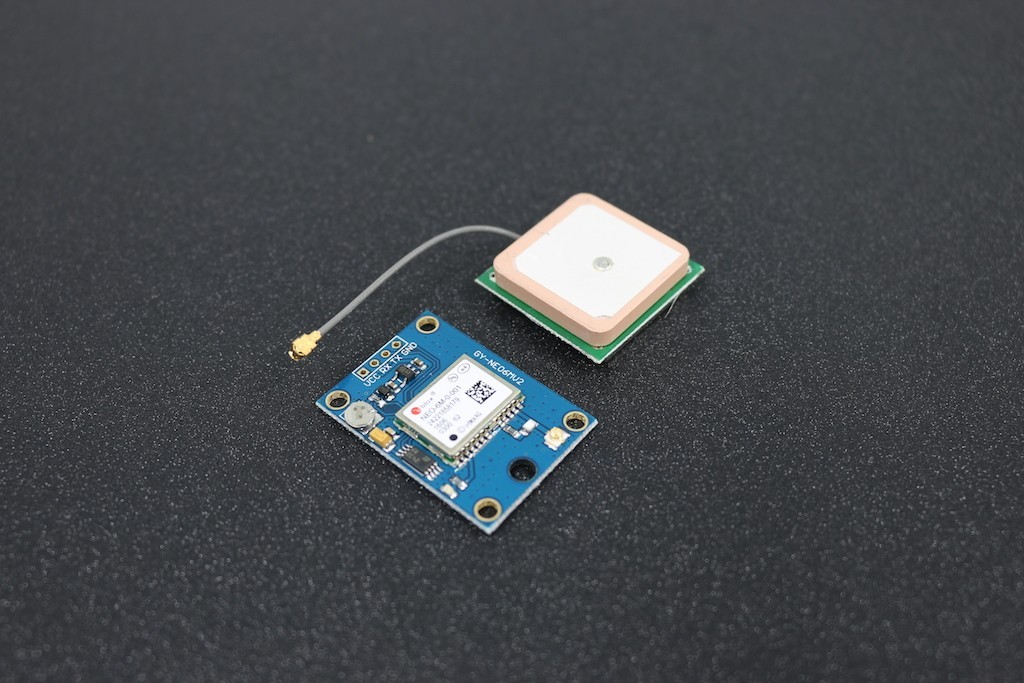

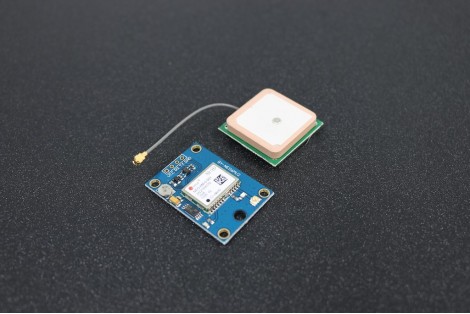

Ublox GPS Module

The NEO-6 module series is a family of stand-alone GPS receivers featuring the high performance u-blox 6 positioning engine. These flexible and cost effective receivers offer numerous connectivity options in a miniature 16 x 12.2 x 2.4 mm package. Their compact architecture and power and memory options make NEO-6 modules ideal for battery operated mobile devices with very strict cost and space constraints.

The 50-channel u-blox 6 positioning engine boasts a Time-To-First- Fix (TTFF) of under 1 second. The dedicated acquisition engine, with 2 million correlators, is capable of massive parallel time/frequency space searches, enabling it to find satellites instantly. Innovative design and technology suppresses jamming sources and mitigates multipath effects, giving NEO-6 GPS receivers excellent navigation performance even in the most challenging environments.

Specifications

• GPS modules NEO​6M, 3V​5V power supply Universal
• Module with ceramic destined antenna, super signal
• EEPROM power down to save the configuration parameters data
• LED signal indicator
• With data backup battery
• The default baud rate: 9600 • Mounting Hole: 3mm
• Module Size: 23mm * 30mm • Antenna Size: 12 * 12mm
• Cable: 20mm

Features

• u-blox 6 position engine:
  • Navigate down to –162 dBm and –148 dBm coldstart
  • Faster acquisition with AssistNow Autonomous
  • Configurable power management
  • Hybrid GPS/SBAS engine (WAAS, EGNOS, MSAS)
  • Anti-jamming technology
• Simple integration with u-blox wireless modules
• A-GPS: AssistNow Online and AssistNow Offline services, OMA SUPL compliant
• Backward compatible (hardware and firmware); easy migration from NEO-5 family or NEO-4S
• LCC package for reliable and cost effective manufacturing
• Compatible with u-blox GPS Solution for Android
• Based on GPS chips qualified according to AEC-Q100
• Manufactured in ISO/TS 16949 certified sites
• Qualified according to ISO 16750
