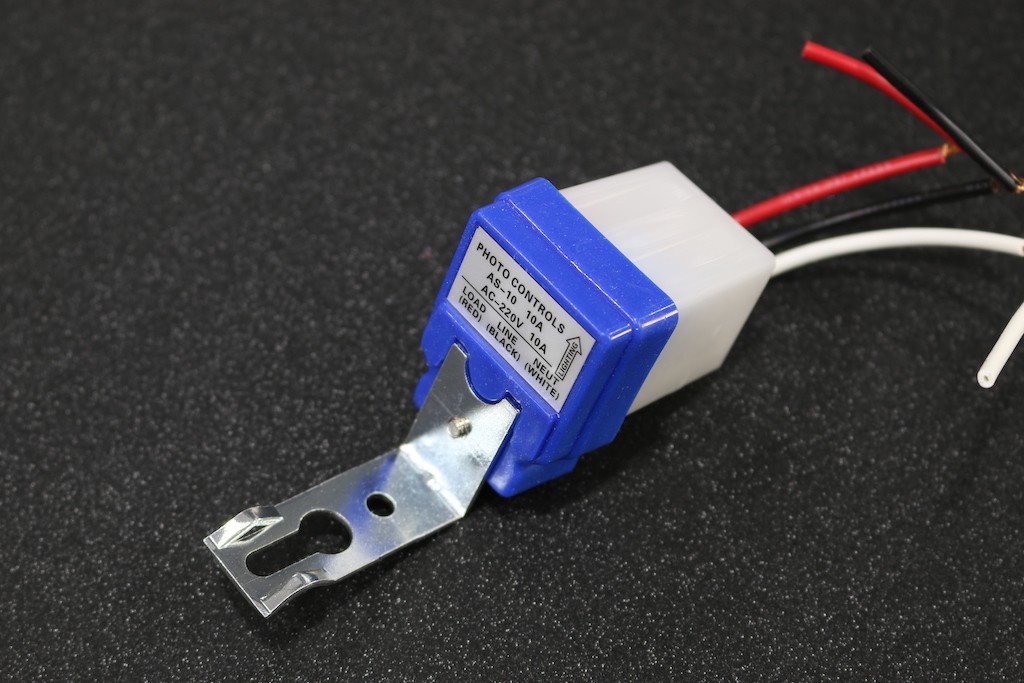

220V 10A Auto on off photocell street light photoswitch sensor switch

Feature:
1.Automatically detects environmental illumination with internal circuitry automatically shut down during the day, automatically turns on at night
2.Three-wire system, compatible with resistive, inductive and capacitive loads multiple lights.
3.Control object for LED lights, energy saving lamps, fluorescent, incandescent, exhaust fan lights.
4.With delay function when environmental conditions change.
5.Widely used in street lighting, highways, factories, garden, ports, airports, farms, parks, schools and other places
6.Umbrella light control wiring methods :
White lines share the zero line - white line black line then the power - red wire load lamps white line

Specification:
1.Material: Electrical components
2.Color: See pictures
3.Operating voltage: 220V
4.Load Current: 10A
5.Load power: 2200W
6.Off delay time: 0.1S
7.Frequency: 50-60HZ
8.Size:As shown in picture

Test:
1.Wiring can not pick wrong, according to our instructions received (white line shared neutral - white line black line then the power - red wire load lamps white line)
2.Testing on or off during the day, use an opaque material, including on the switch, the switch lights work fine.

Package Included:
1x Photo Control

Brand Name: GREATZTCondition: NewType:
0Voltage RegulatorSupply Voltage: 220VPackage:
SMDis_customized: Yes
Dissipation Power: 10A
Model Number: Photocell street Light
SwitchApplication: ComputerOperating Temperature: 50-60Hz
