6V~60V 30A Slow Start Stop Digital Speed Control Governor

-Input supply voltage: DC 6V-60V;Output current: 0-30A ;Continuous current: within 20A;Speed range: 0 - 100%
-This is a simple and easy-to-use DC motor speed controller of small size, elegant appearance and stable performance.

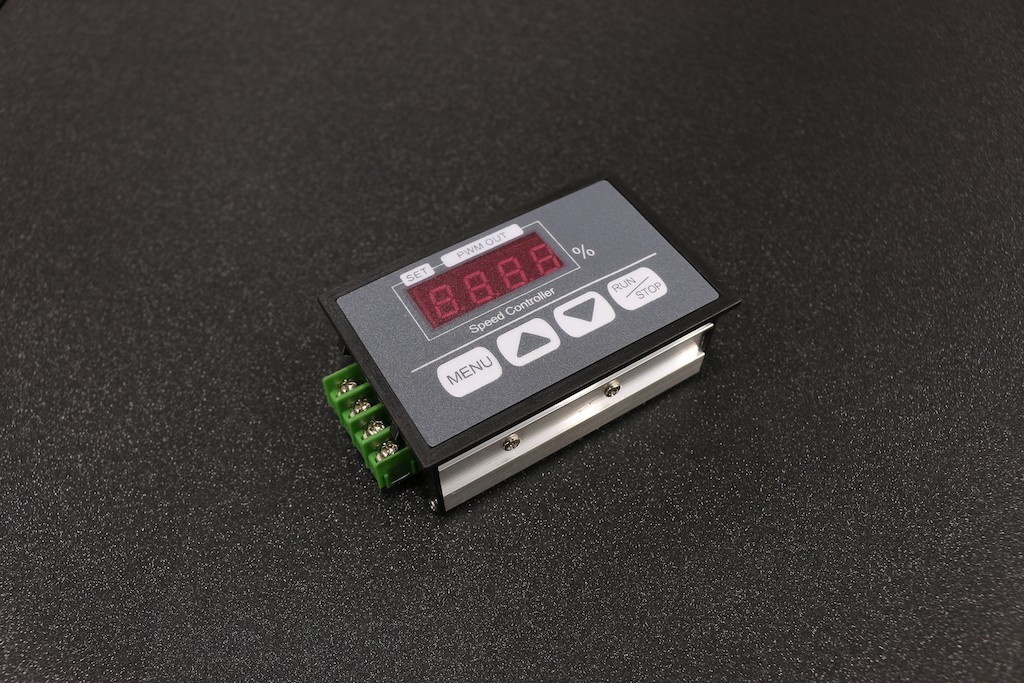

-Designed with a digital display panel for easy reading and convenient setting of speed adjustment.
-DC Motor Controller can set the time of DC Motor Slow Start and Stop, revolving speed time adjustable, easy to operate,which reduces the mechanical stress on the motor and shaft.
-Acceleration and deceleration value setting: Each time you press the plus or minus button, the speed changes by 1%, 2%, 5%, 10%, 15%, 20%, 25%.

Specifications:
Input voltage: DC6-60V.
Output voltage: linear under load
Output current: 0-30A
Continuous current: within 20A
Speed control mode: jog + -
Speed regulation range: 0-100%
Control frequency: 21KHZ
Type of connection: Barrier terminal
Support motor: brush motor
Significant speed: 0-100%
Panel Dimensions:96mm*61mm*34mm/ 3.78" * 2.4" * 1.34"(L*W*H)

Functions Introduction:
SET 1: Slow Start Time Setting(000-100). Slow start to 100% speed time is adjustable between 0-10 seconds. The default is 1 second.
SET 2: Slow Stop Time Setting(000-100). The slow stop time is adjustable between 0-10 seconds. The default is 1 second.
SET 3: Minimum Speed Limit Setting(000-080). The minimum speed is adjustable between 0-80% and less than the maximum speed setting. The default is 0.
SET 4: Maximum Speed Setting(000-100). The maximum speed is adjustable between 0-100% and greater than the minimum speed setting. The default is 100%.
SET 5: Acceleration & Deceleration Value Setting(001/002/005/010/015/020/025). Each time you press the plus or minus button, the speed changes by 1%, 2%, 5%, 10%, 15%, 20%, 25%.
