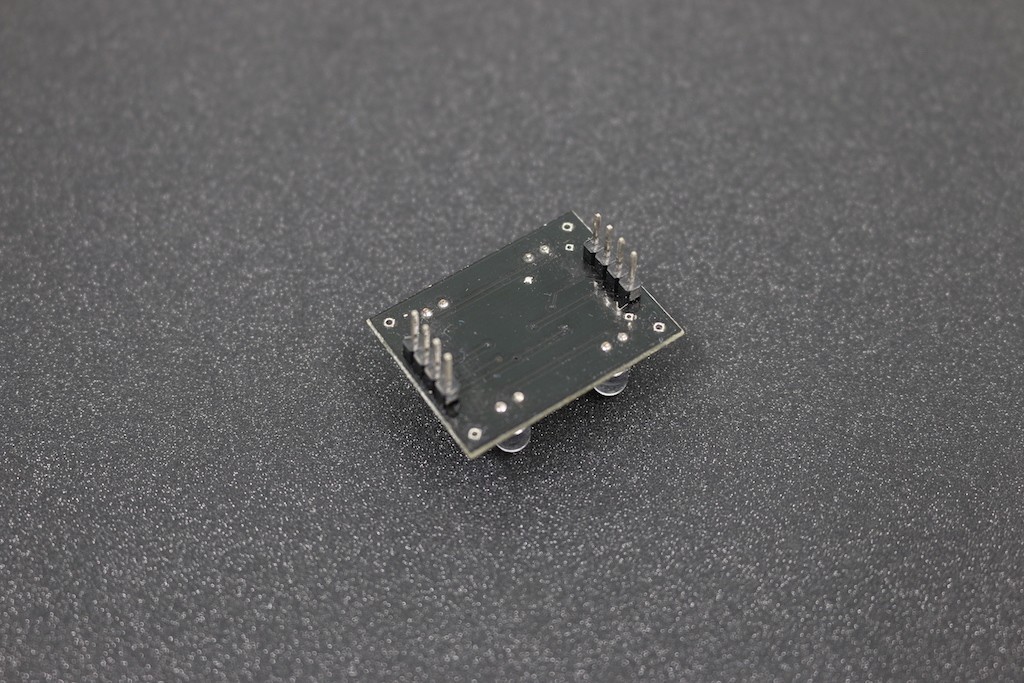

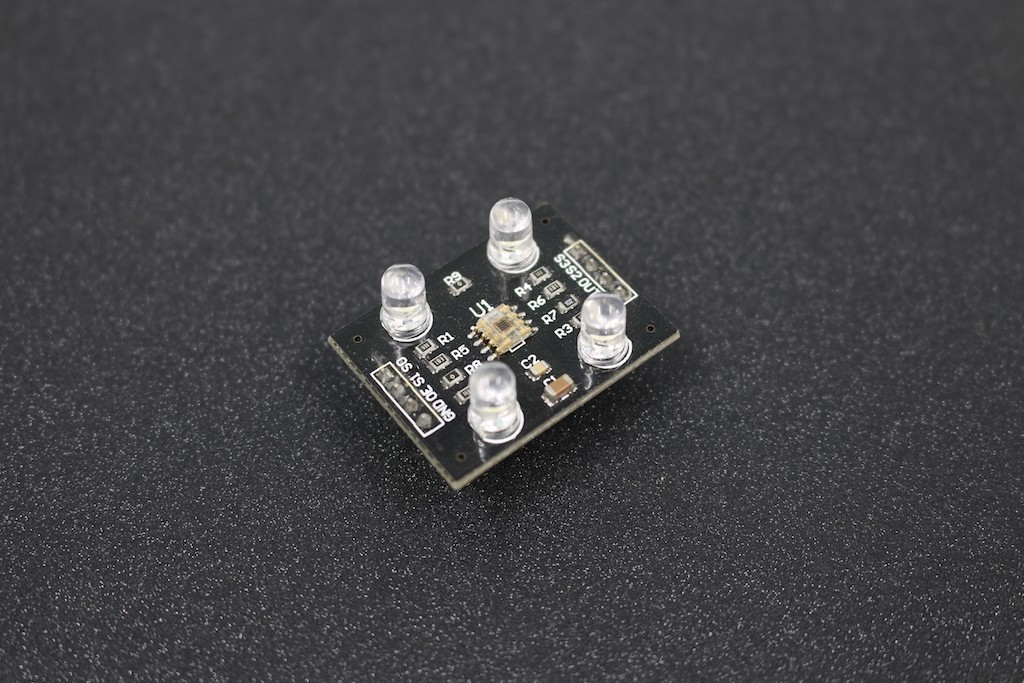

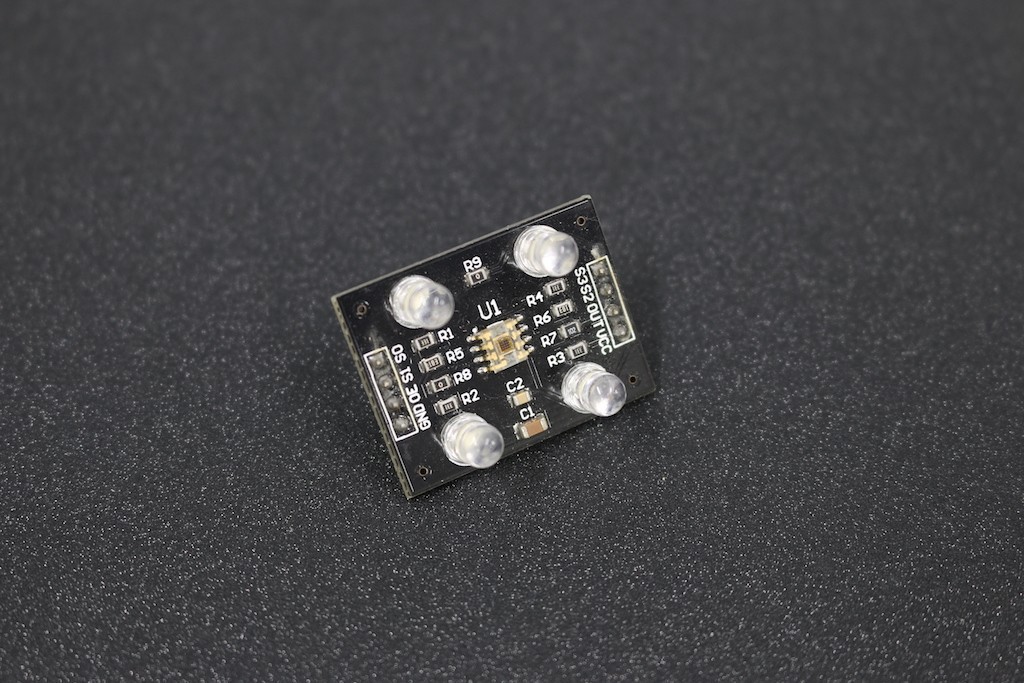

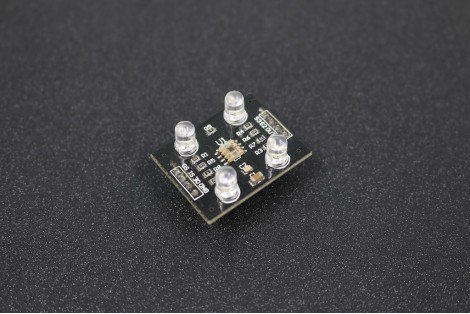

TCS230 Color Recognition Module

Detail about Color Recognition Module

The TCS230 color sensor combines configurable silicon photodiodes and a current to frequency converter on a single monolithic CMOS integrated circuit. The full-scale output frequency of this color sensor can be scaled by one of three preset values via two control input pins. This TCS230 color sensor come with digital input and output which allow direct interface to a microcontroller or other logic circuitry.

Specifications

• Chip: TCS230
• Input voltage: DC 3V 5V,Output frequency voltage: 0 ~ 5V
• Use bright white LED lights ,can be connected directly with Microcontroller ,Static detection of the measured object color
• Best detection distance: 10mm
• Chip pins all has drawn for standard 100, put the needle (2.54 mm), mil convenient for bitmap board
• High-resolution conversion of light intensity to frequency
• Programmable color and full-scale output frequency Communicate directly with a microcontroller
• Low profile surface mount package
• PCB size: 31.6 (mm) x 24.4 (mm)
