IR Flame Sensor Module Detector Smartsense For Temperature

MD0081

New product

More info

Detail about IR Flame Sensor Module

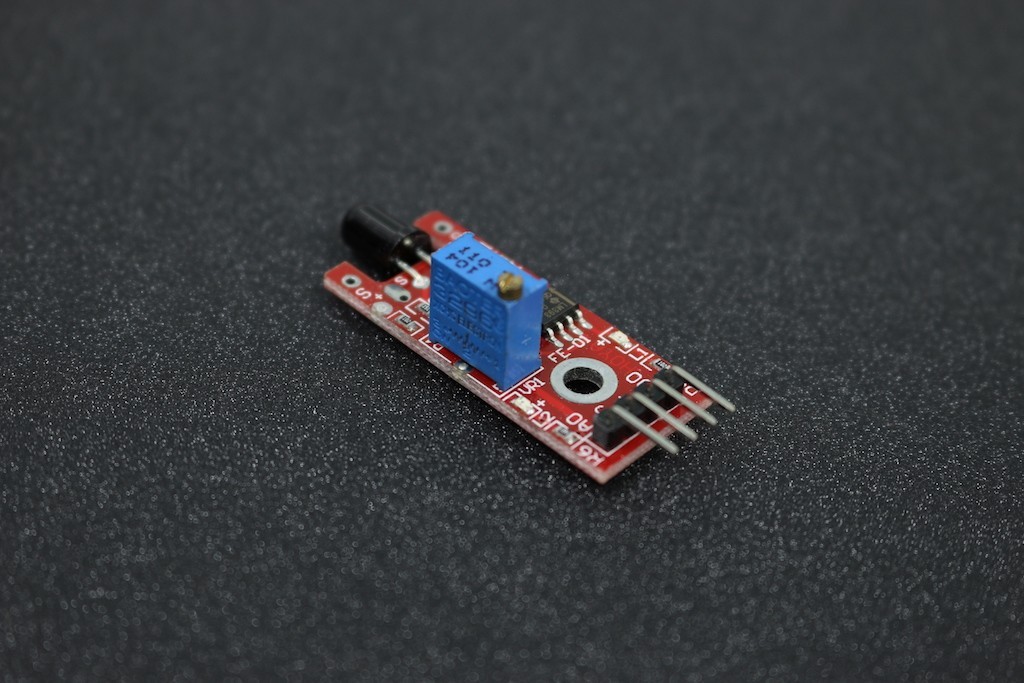

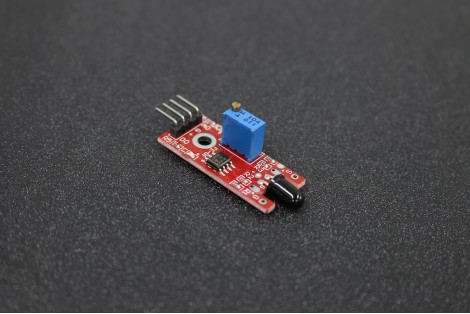

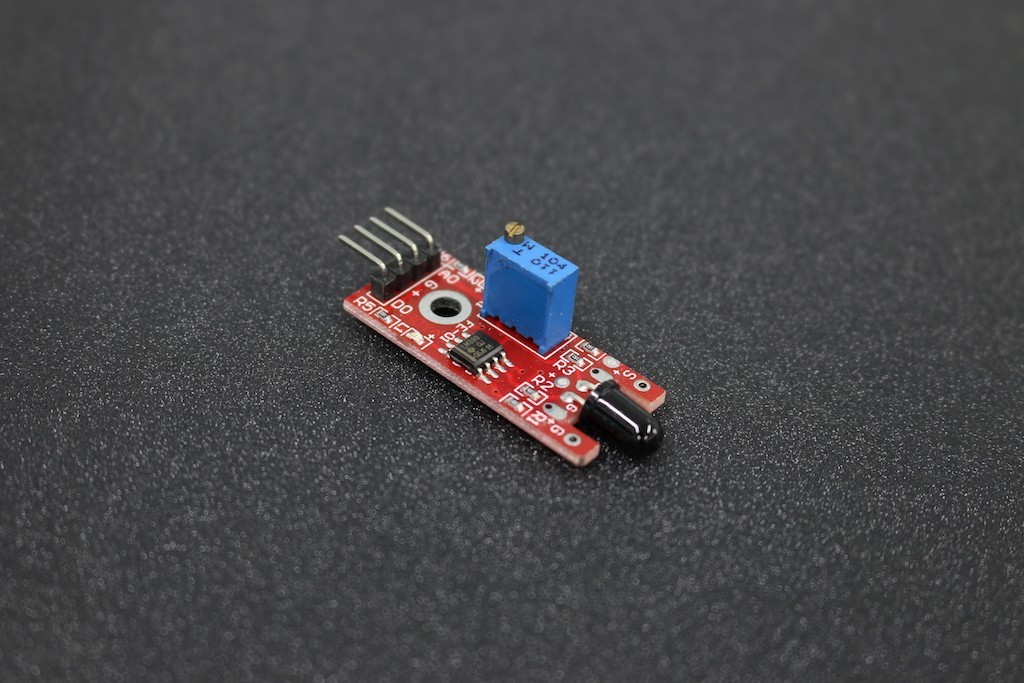

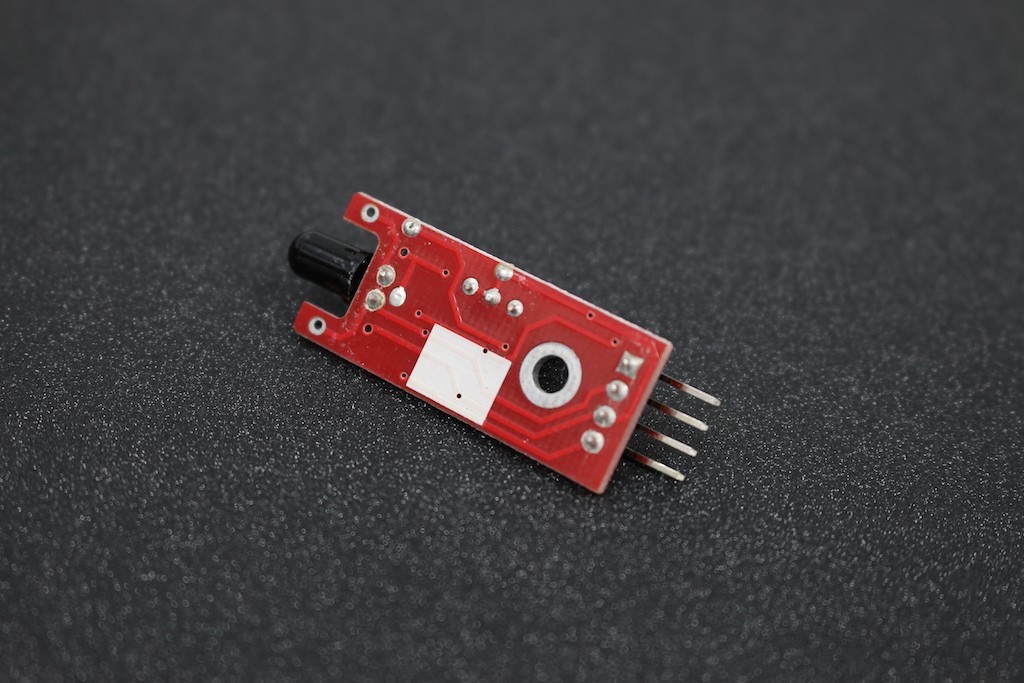

The Keyes Flame Sensor Module is sensitive to flame wavelengths between 760nm to 1100nm in infrared. The module has 2 outputs: Analogue, which gives a real-time voltage output signal on thermal resistance, and digital which allows temperature thresholds to be set via a potentiometer.

Specifications

  • Brand                 : Keyes
  • Model                 : KY-026
  • Operating voltage: DC 5 V
  • Compatibility       : Arduino
  • Sensor Angle       : 60 degrees
  • Color                  : Read x Blue
  • Main Chip            : LM393
  • Material               : FR4
  • Dimensions          : 45mm
  • Weight                 : 3.06g

Pin Map

  • A0 : Analog Output
  • G : Ground
  • + : Supply ( 5V )
  • D0 : Digital Ouput
