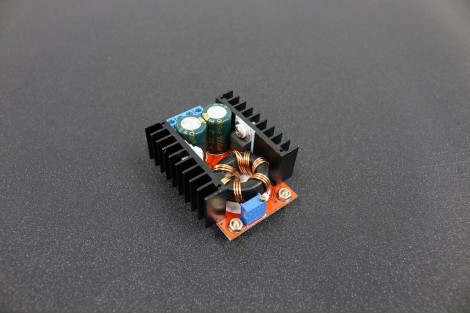

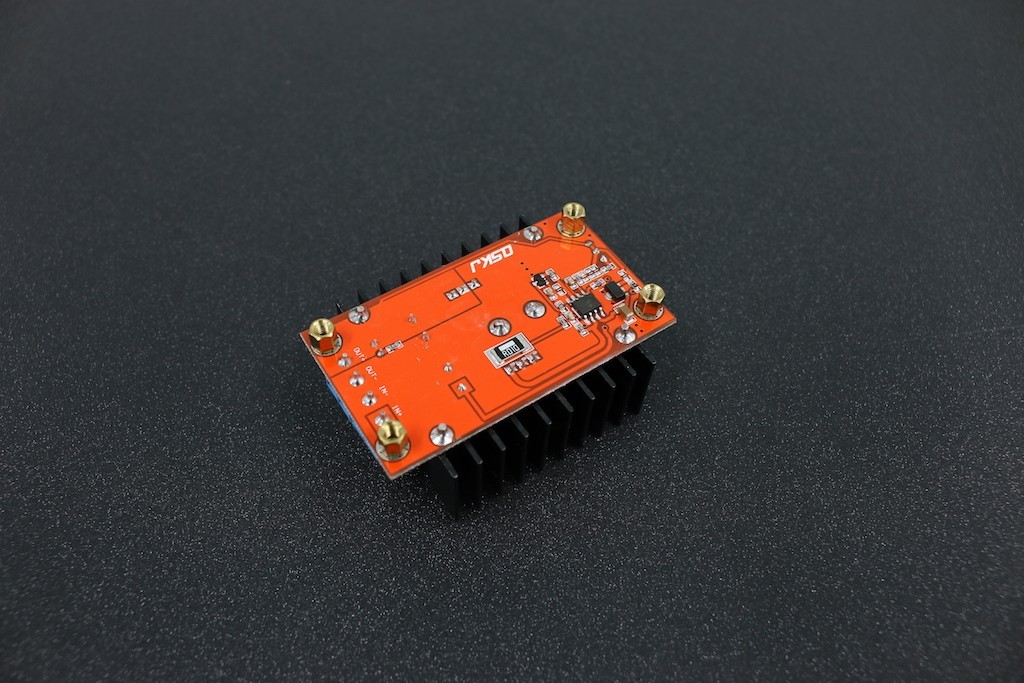

150W Boost DC-DC Step Up Voltage Converter Module

Reference: MD0110

Condition: New product

Send to a friend

Send to a friend

150W Boost DC-DC Step Up Voltage Converter Module

Recipient :

Name of your friend ^* :

E-mail address of your friend ^* :

^* Required fields

or Cancel
Print

More info

Specifications

Module properties: unfenced booster module (BOOST)
The input voltage: 10-32 v
(1) continuous adjustable output voltage (12-35 v)
(2) fixed output (select) between 12-35 v, when buying, please tell the shopkeeper.
Output current: 10 a (MAX)
Input current: 16 a (MAX) (Please enhance heat dissipation if more than 10A)
Output power: natural cooling 100 w (MAX), strengthen heat 150 w (MAX) real power use time more actual situation, please Decide whether to add fans, please be sure to ensure heat sink temperature not to exceed 80 degrees.
Easily lead to 65 w, 90 w notebook computers Including dual -With A 12 v battery with ordinary 19 v 3.42 A laptop module temperature of about 45 degrees
Conversion efficiency: 94% (16 v input measured output is 19 v 2.5 A) (for reference only)
The output ripple: 2% (MAX) 20 m bandwidth
Working temperature: industrial grade (- 40 to + 80) (ambient temperature more than 40 degrees, please reduce power use, or add the fan)
With temperature rise: 45
No-load current: typical 25 ma
Load regulation: plus or minus 0.5%
Voltage regulation: plus or minus 0.5%
Dynamic response speed: 200 us 5%
Short circuit protection: no (please input with fuse or protective circuit)
Input reverse connect protection: no, the buyer can be in the input series diode.
Connection mode: from welding, and terminals
Size: 65 * 56.5 * 23 (length * width * high) (mm)

Note

Short circuit protection: None (Please Install fuses and protection circuits at Input port.)
Input Reverse Polarity Protection: None (Please connect Series diode at the input port.)

Some Applications

DIY an output adjustable vehicle power supply, connect the 12V input, and output could be 14-35V(adjustable freely), However, the output voltage can not be less than the input voltage.
Car laptop power supply: connected to 12V power supply, output voltage regulation as your notebook need.
