NANO Shield Terminal Adapter Module

MD0117

New product

More info

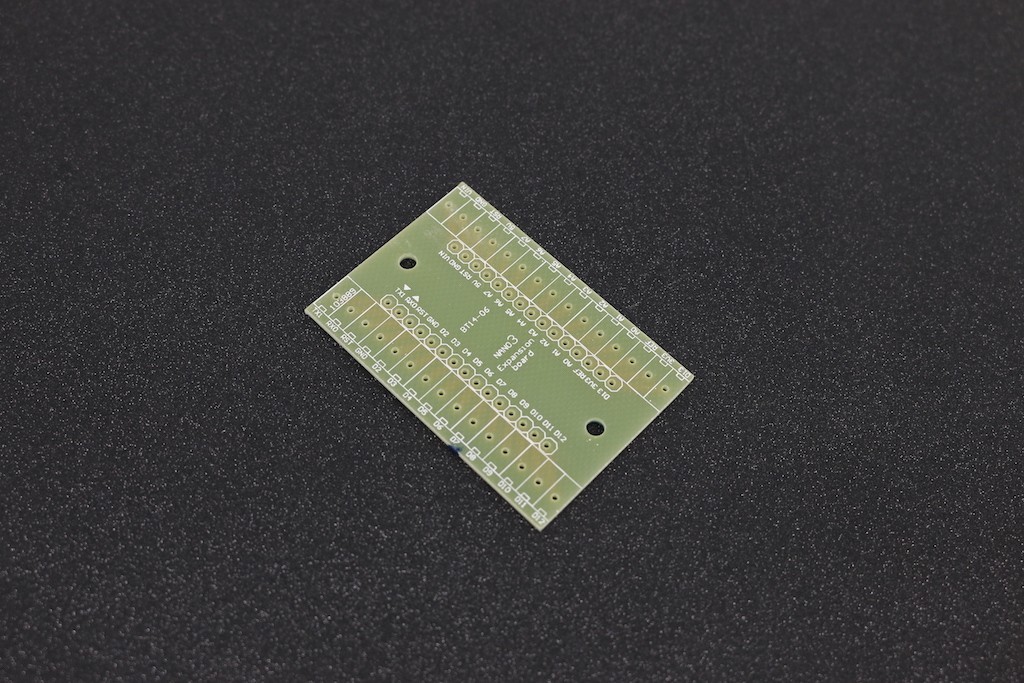

Detail about NANO Shield Terminal Adapter Module

This is a terminal adapter for the Arduino Nano. It lables for Arduino Nano version 3.0, however you can still use this adapter for the older version (just have to remember that A0-A7 are in the reverse order). You can use this adapter to easily hook up Nano to an outside world via hook up wires.
This terminal expansion kit  is designed for any version of Nano that conforms to the Arduino. The kit comprises of a circuit board measuring approximately 54mm x 36mm, 2x 15 pin o.1" pitch sockets, and 10x 3 pin screw terminal blocks. Once constructed (soldering required) the completed kit will allow you to plug your Nano into the header socket and will then provide a convenient means of connecting wires to your Nano via its screw terminal blocks. Two mounting holes on the adaptor board provide a means of securing the board and Nano.

Features

  • DIY Kits for Arduino NANO IO Shield V1.0.
  • IO Expansion Shield For Arduino Nano is specifically designed to facilitate an easy connection between Expansion Shield.
  • For Arduino Nano and many other devices.
  • In essence, it expands for Arduino For Nano controller to link those devices in a simple and trouble free manner.

Specifications

  • PCB size: 5.5*3.8cm
  • PCB Board color: Blue
  • Net weight: Approx.22g

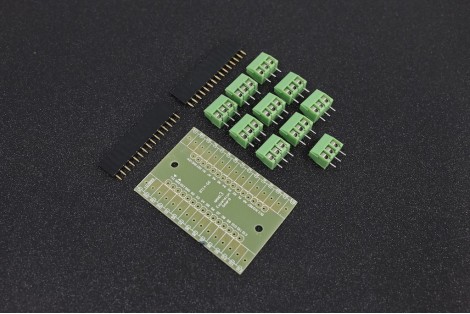

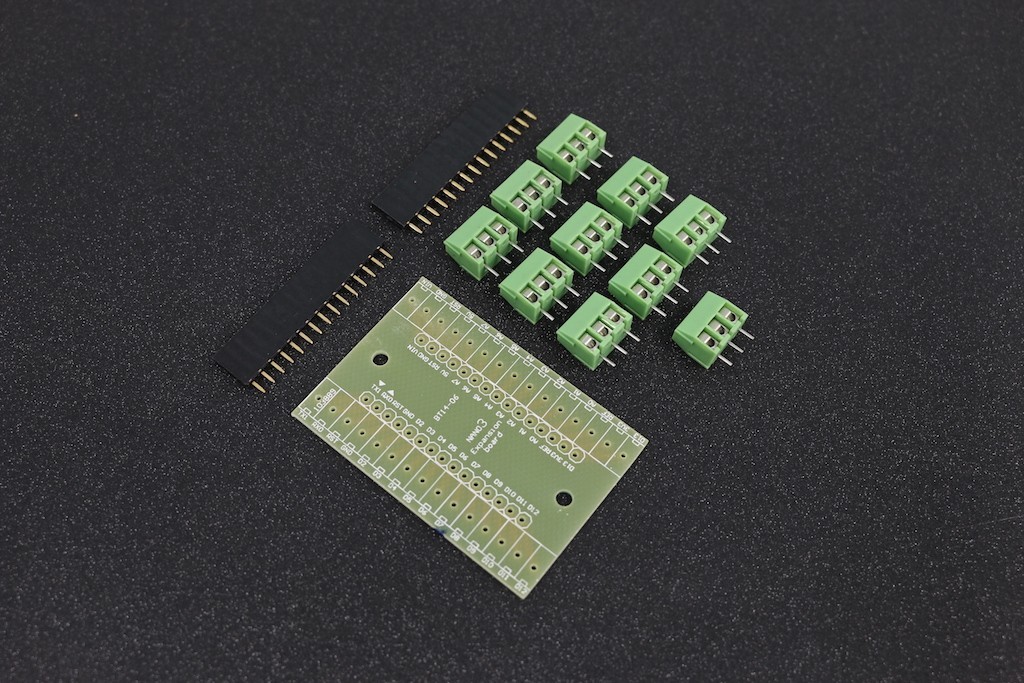

Kit includes

  • 1x PCB
  • 2x 15 way 0.1" pitch SIL sockets
  • 10x 3 pin screw terminal blocks

Note

This is a DIY Kit. You need to weld the component and install it by yourself. DIY kit installation requires some basic electronic production and practical ability, there is the risk of damage during the process of installing, once the board is powered on, we are not responsible for the components. thanks for your understanding.
