9G SG90 Camera Servo Bracket

MD0133

New product

More info

Detail about 9G SG90 Camera Servo Bracket

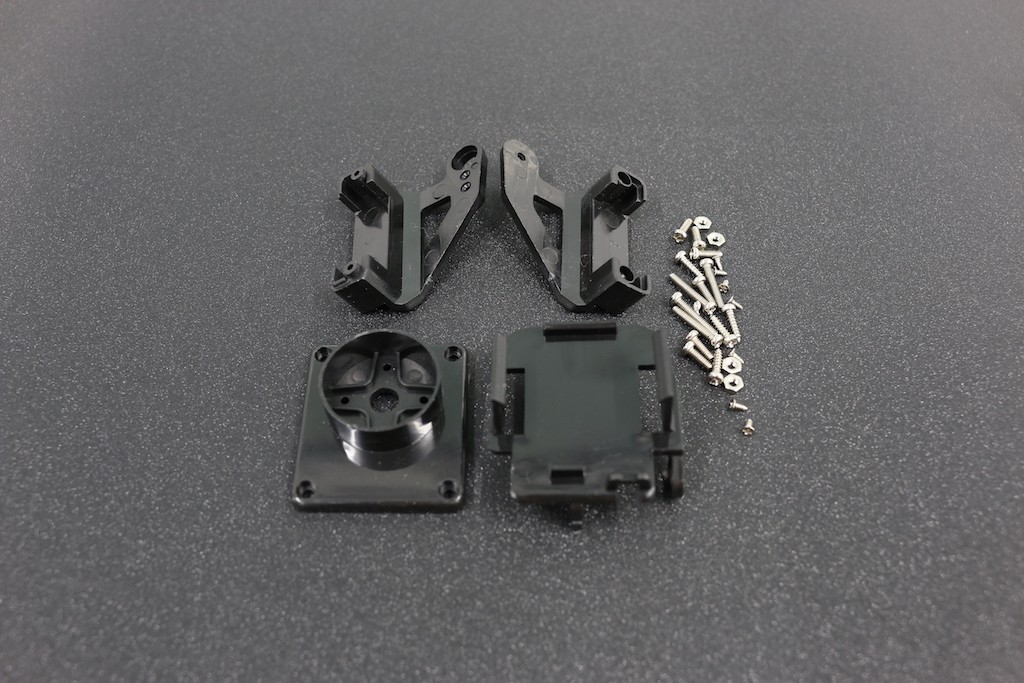

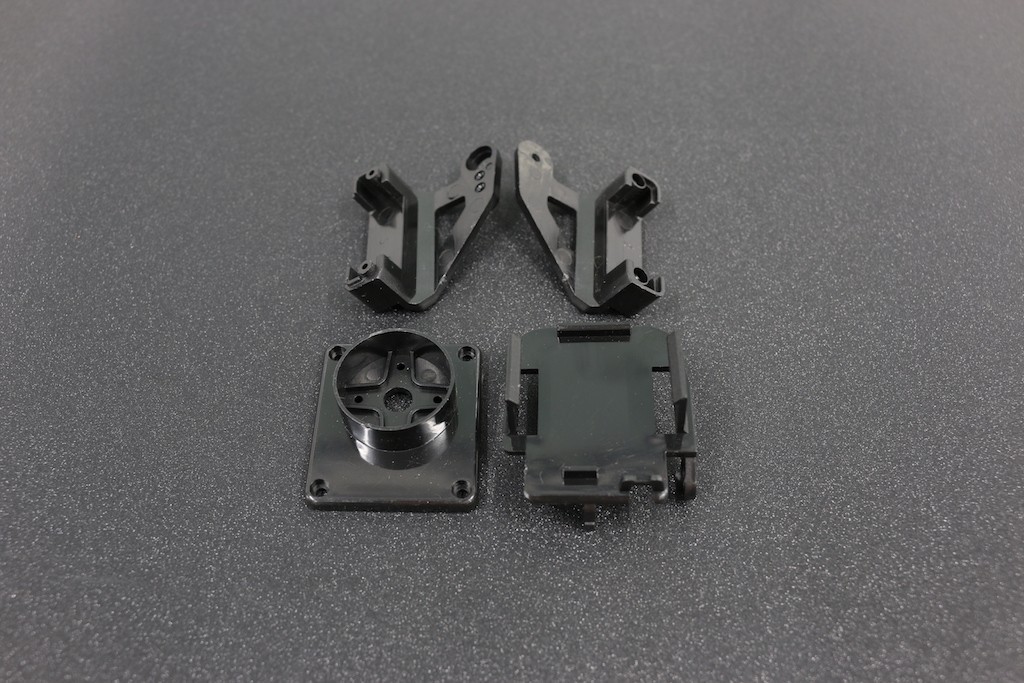

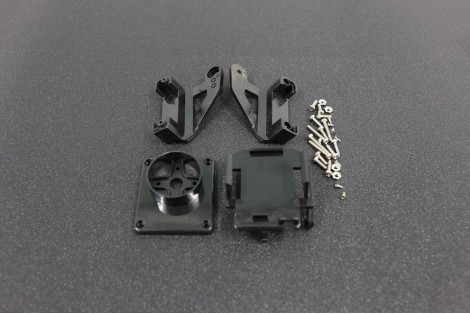

Black nylon pan and tilt bracket kit for SG90 servo's. The kit includes black nylon parts and fixing screws to construct a pan and tlt bracket with the addition of two SG90 servo's. Applications include controlling position of a camera or sensors for robotics and radio control applications. For suitable servo's please see out SG-90 9g servo, item HCROBO0005. Please note that this kit requires the use of the servo arms normally supplied as part of the servo. Some trimming of the servo arms may be required.This is pan tilt servo bracket for fpv systems. It can be used for mounting other sensors such as Ultra-sonic Distance Sensor modules. It is only suitable for installation of 28mmx28mm camera module, while 32 or 38 camera can not fit. The Servo bracket system is supplied in un-assembled form and requires user to install servo motors and camera.

Specifications

  • Supported Motors: 9g to 12g servos (such as SG90, MG90, MG90S)
  • No of Axis: 2 axis
  • No of Plastic Pieces: 4
  • Material: Plastic / Nylon
  • Supported Camera size: 28mm x28mm
  • Measurement of base plate: 37mm (L), 33mm (W), 3mm thickness
  • Colour: Black
  • Material: Plastic
  • Two axis platform,
  • suitable for 9g-12g servos
  • Horizontal rotation range: 180 deg.
  • Horizontal rotation speed: 100 deg./s (depending on servo)
  • Tilt rotation range: 130 deg.
  • Tilt rotation speed: 100 deg./s (depending on servo)
  • Dimension: 32mm X 28mm X 65mm
  • Net weight: 42g

Applications

  • FPV Camera systems
  • Object tracking Systems
  • Security Camera application
  • Ultrasonic Distance measurement and Ultrasonic Radars

Package Includes

  • 1x Servo bracket PT Pan/Tilt Camera Platform for FPV Systems (un-assembled, servo motors and camera is not included)
  • 1x Set of Screws and nuts

Note

  • Servo not included.
