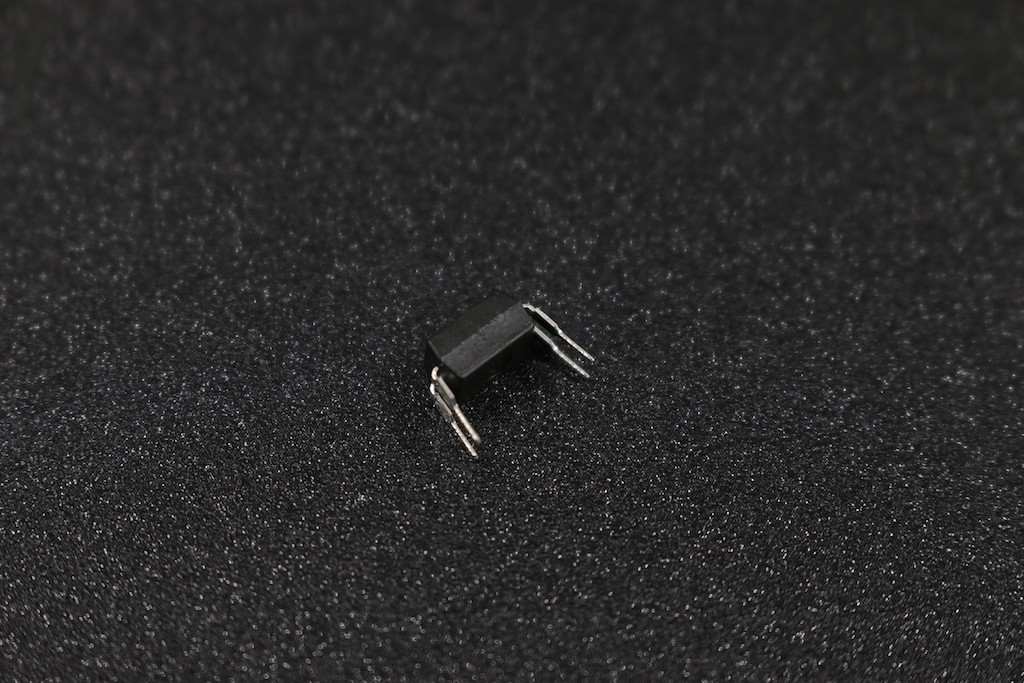

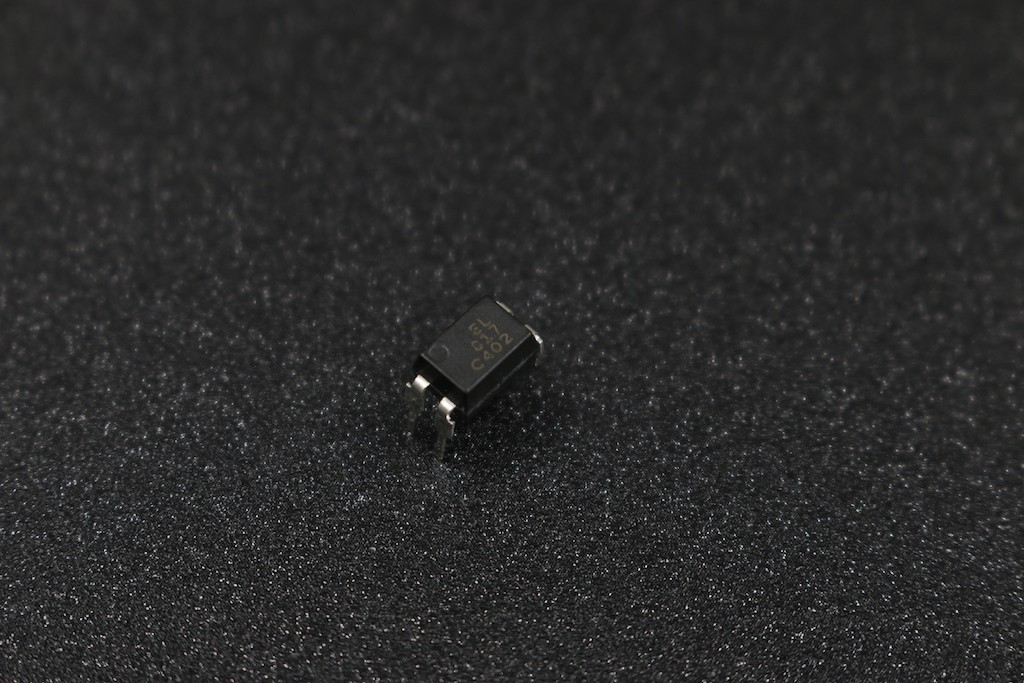

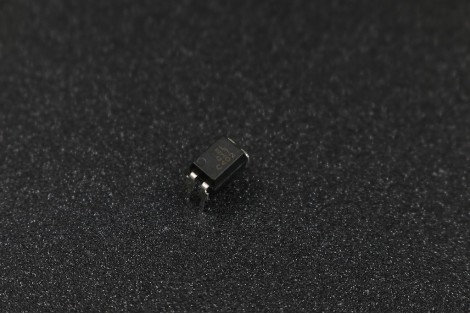

> >EL-017 4-Pin DIP Optocoupler IC
EL-017 4-Pin DIP Optocoupler IC View larger

EL-017 4-Pin DIP Optocoupler IC

PSC0002

New product

More info

Description

                   The EL817series of devices each consist of an infrared emitting diodes,optically coupled to a phototransistor detector.They are packaged in a 4-pin DIP package and available in wide-lead spacing and SMD option.

Applications

  • Programmable controllers
  • System appliances, measuring instruments
  • Telecommunication equipments
  • Home appliances, such as fan heaters, etc.
  • Signal transmission between circuits of different potentials and impedances

Features

  • Current transfer ratio(CTR: 50~600% at IF =5mA, VCE =5V)
  • High isolation voltage between input and output (Viso=5000 V rms )
  • Creepage distance >7.62 mm
  • Operating temperature up to +110°C
  • Compact small outline package
  • Pb free and RoHS compliant
  • UL and cUL approved(No. E214129)
  • VDE approved (No. 132249)
  • SEMKO approved
  • NEMKO approved
  • DEMKO approved
  • FIMKO approved
