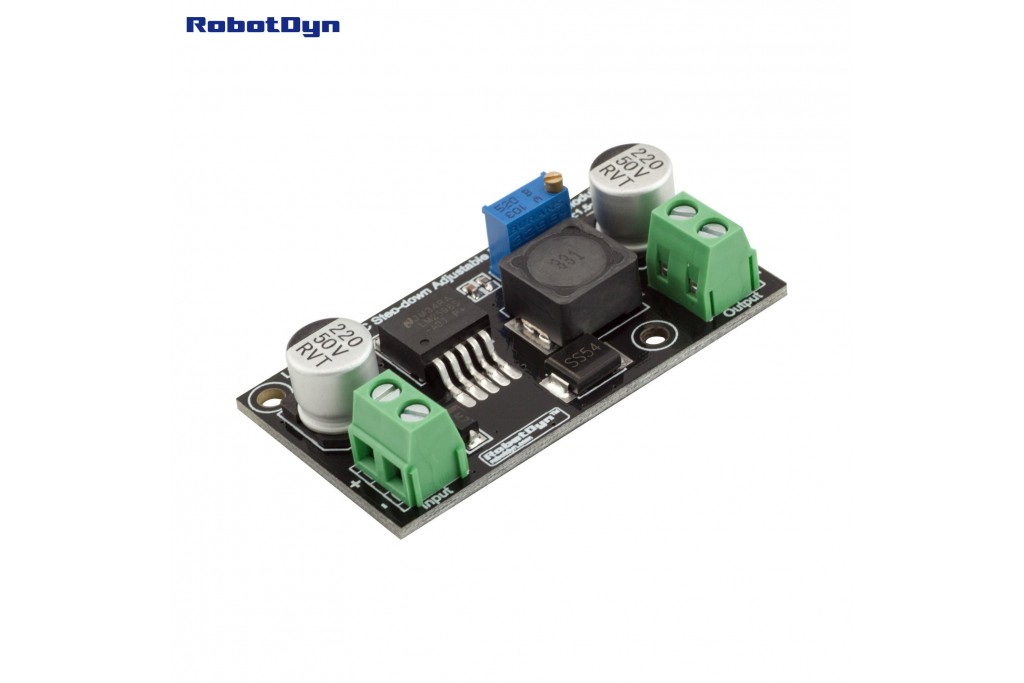

LM2596 DC-DC Step-down Adjustable Power Supply Module, In: 3~36, Out:1.5~34V/3A

RDYN0068

New product

More info

Details about LM2596 DC-DC Step-down Adjustable Power Supply Module

               The DC-DC Step-down Adjustable Power Supply Module is based on monolithic integrated circuit LM2596, ideally suited for easy and convenient design of a step−down switching regulator (buck converter). It is capable of driving a 3.0A load with excellent line and load regulation. This device is available in adjustable output version and it is internally compensated to minimize the number of external components to simplify the power supply design.

Easy to connecting of power wires.

Feature:

- Control: adjust the analog potentiometer for increase or decrease the output voltage.
- Stable output, the output range is DC DC 1.5~34V, * note the input voltage should be higher than output voltage ~ 2V.

Documents

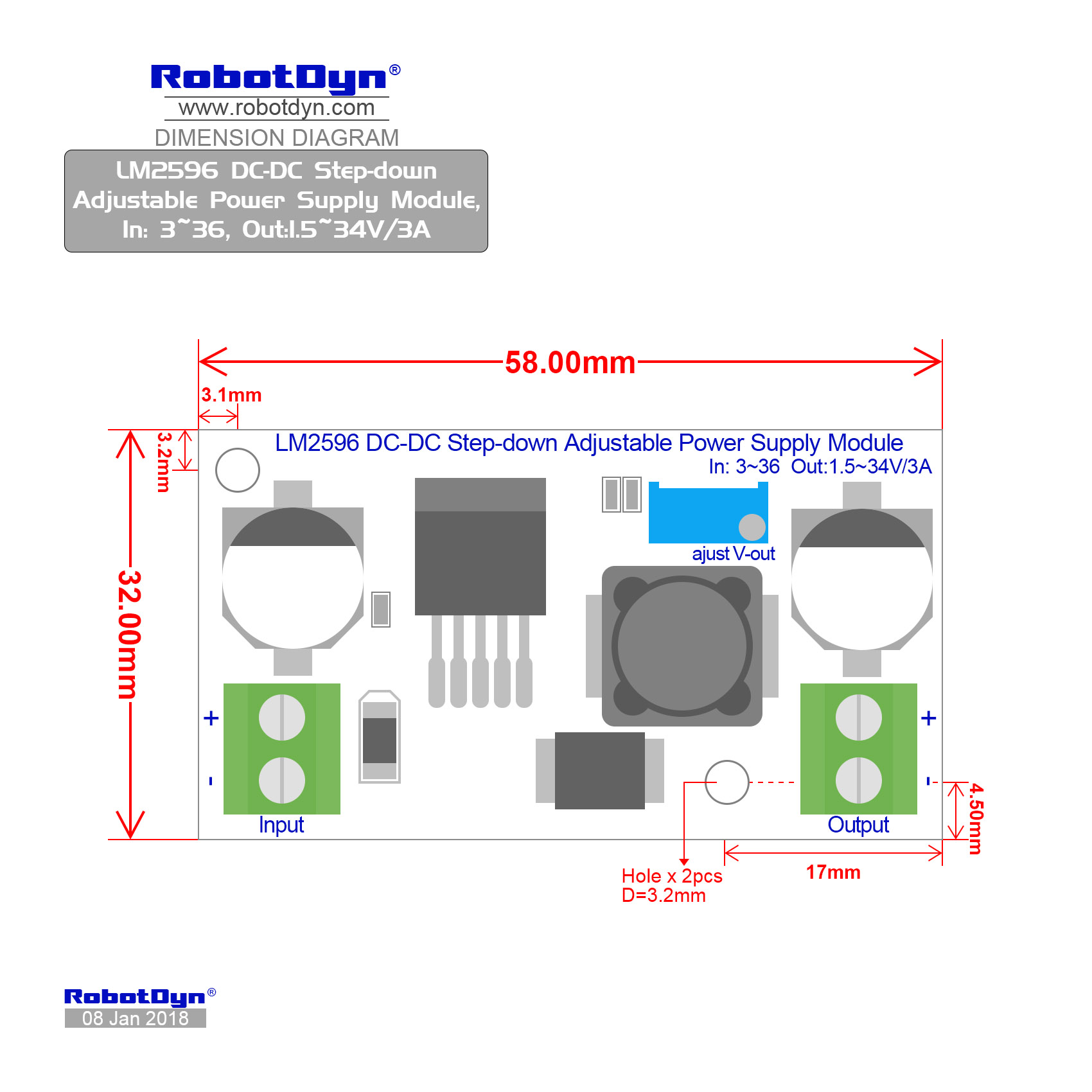

Dimensional drawing

Dimensions LM2596 DC-DC Step-down Adjustable Power Supply Module, In: 3~36, Out:1.5~34V/3A Dimensions LM2596 DC-DC Step-down Adjustable Power Supply Module, In: 3~36, Out:1.5~34V/3A

Pinout

Pinout LM2596 DC-DC Step-down Adjustable Power Supply Module, In: 3~36, Out:1.5~34V/3A Pinout LM2596 DC-DC Step-down Adjustable Power Supply Module, In: 3~36, Out:1.5~34V/3A

Schematic

Schematic of LM2596 DC-DC Step-down Adjustable Power Supply Module, In: 3~36, Out:1.5~34V/3A
