Nano V3.0 I/O & Wireless Shield

RDYN0077

New product

More info

Details about Nano V3.0 I/O & Wireless Shield

              Arduino Nano IO Wireless Shield is specifically developed for easy connection between Arduino Nano  and Wireless devices: xBee modules, nRF24L01 RF radio modules,ESP8266 wifi modules, APC220 wireless RF modules. Actually, it expands the Arduino Nano controller to link those devices in a simple free manner. It is a perfect additional of Nano controller and compatible with both Arduino Nano v3.x.

Documents

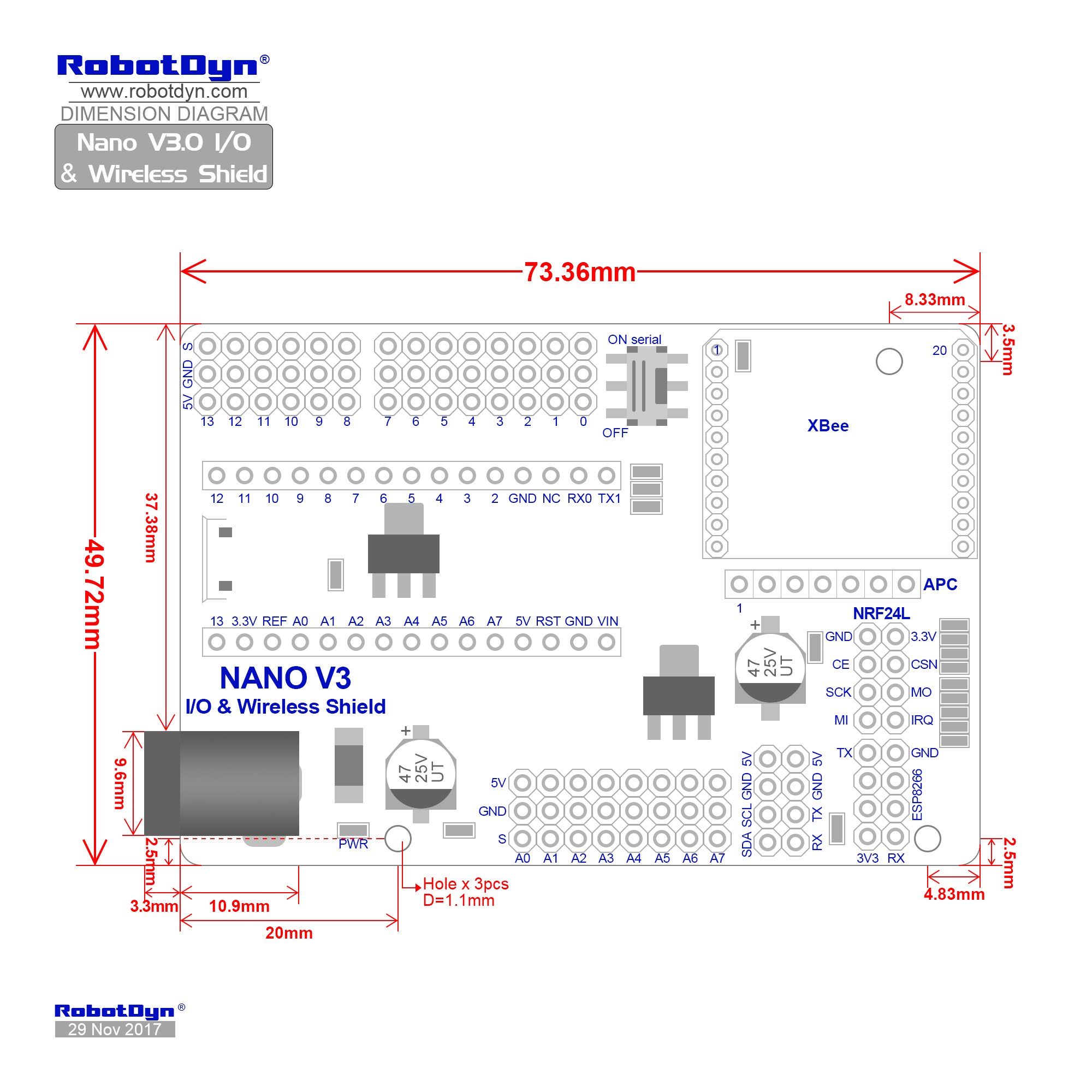

Dimensional drawing

Dimensions Nano V3.0 I/O & Wireless Shield Dimensions Nano V3.0 I/O & Wireless Shield

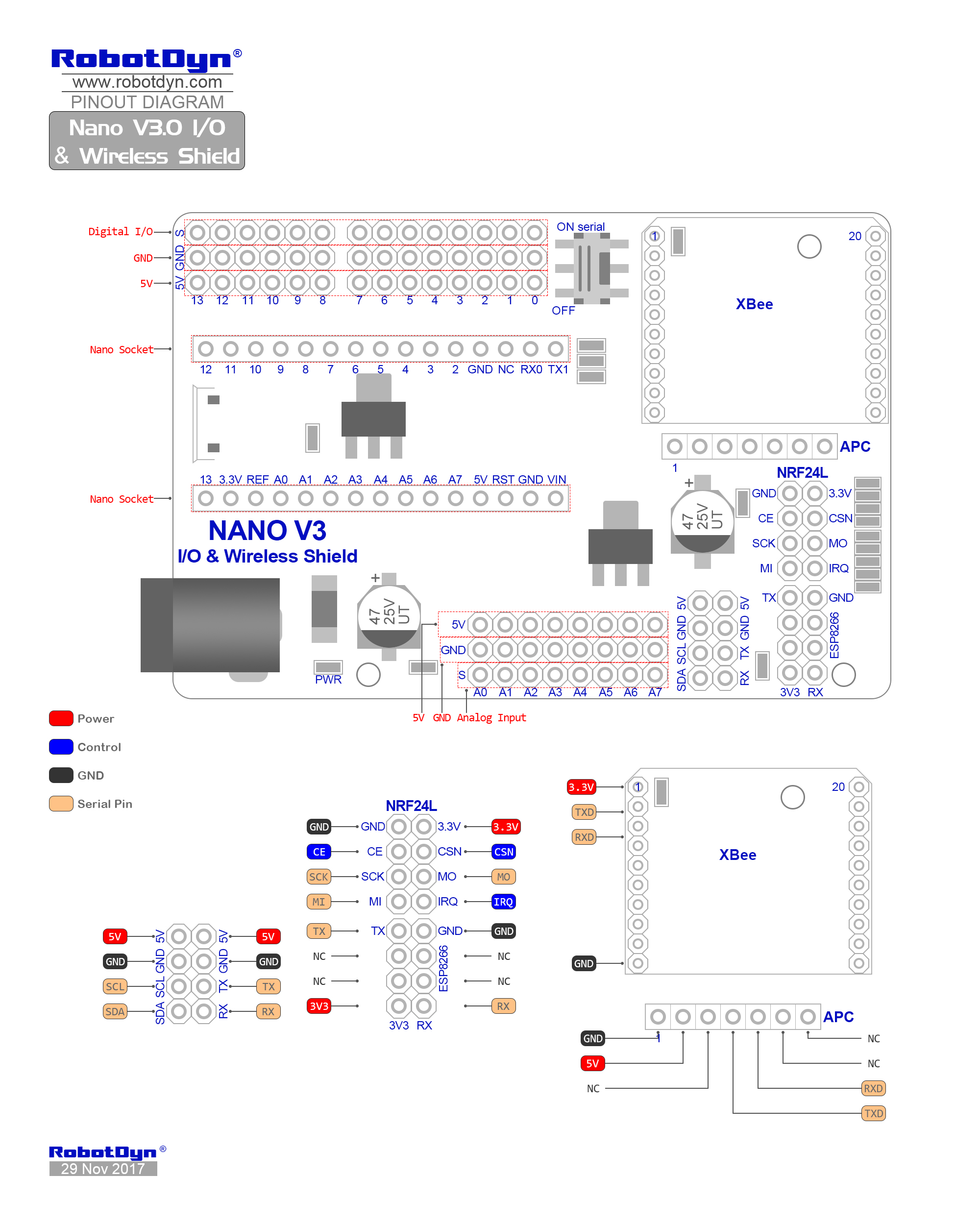

Pinout

Pinout Nano V3.0 I/O & Wireless Shield Pinout Nano V3.0 I/O & Wireless Shield

Schematic

Schematic of Nano V3.0 I/O & Wireless Shield
