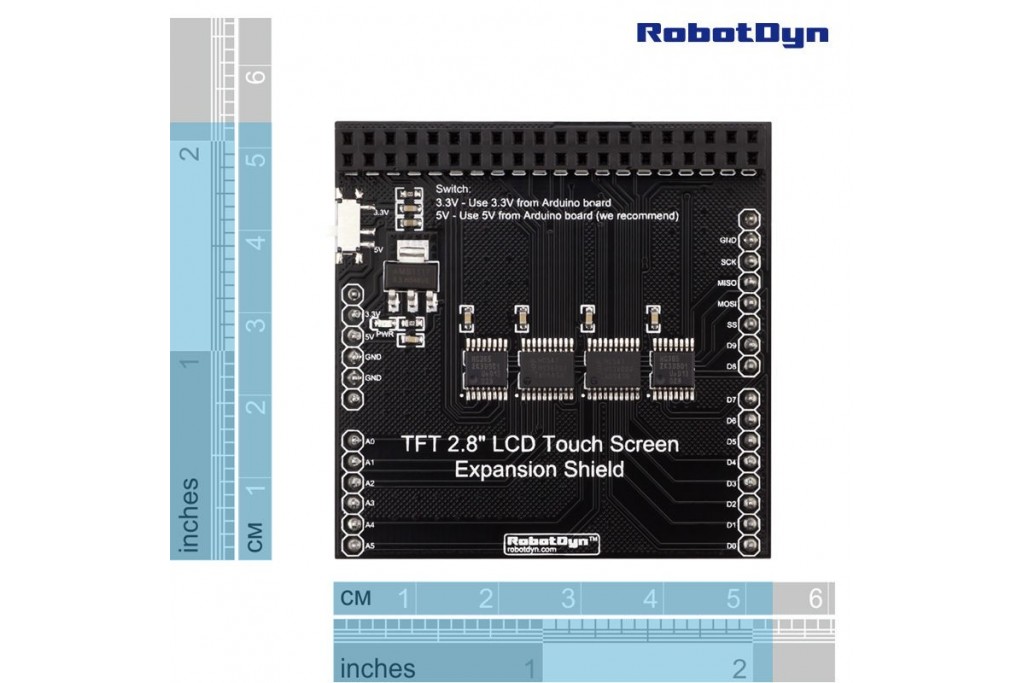

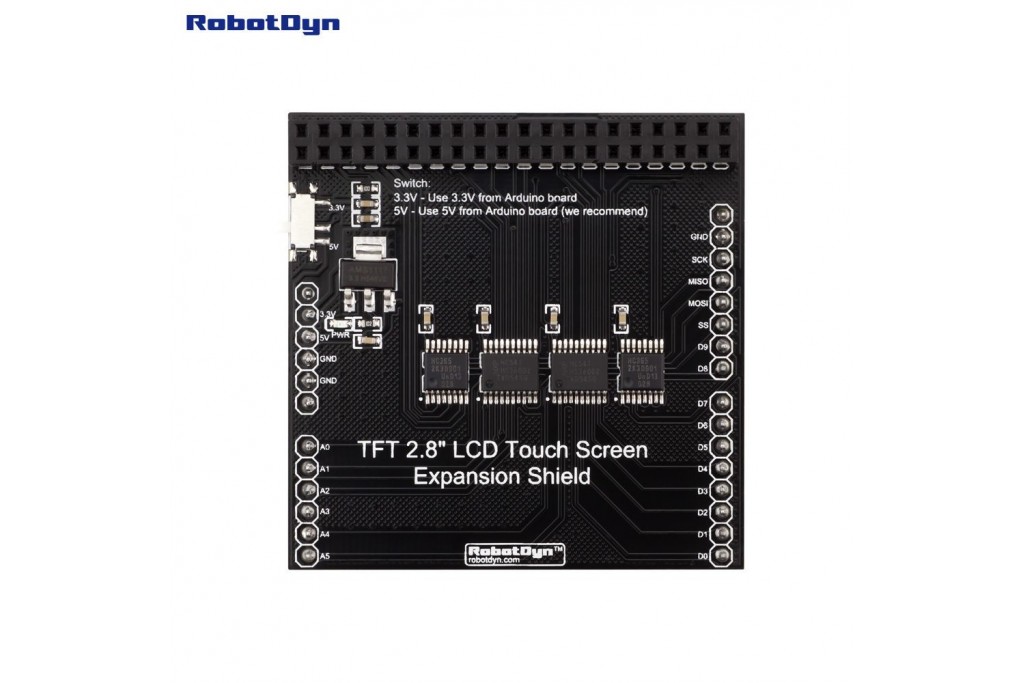

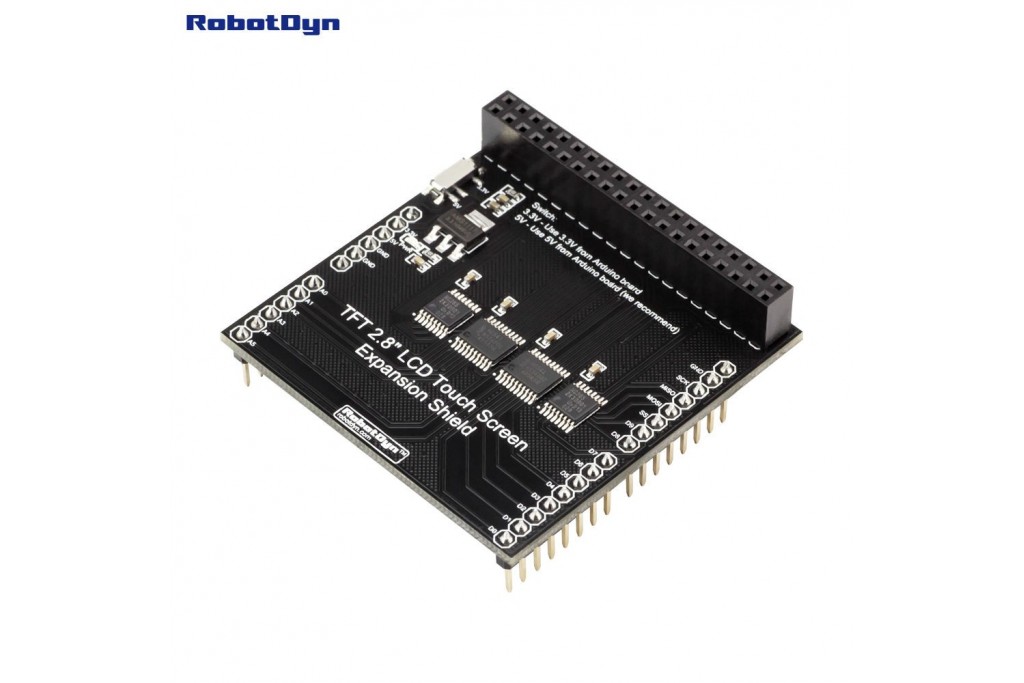

Expansion Shield for TFT 2.8" LCD Touch Screen, for Uno/Mega View larger
Previous Next

Expansion Shield for TFT 2.8" LCD Touch Screen, for Uno/Mega

RDYN0094

New product

More info

Details about Expansion Shield for TFT 2.8" LCD Touch Screen, for Uno/Mega

A TFT LCD screens and modules is operating at 3.3V, for connection to Arduin o board need to use this Expansion Shield.

Documents

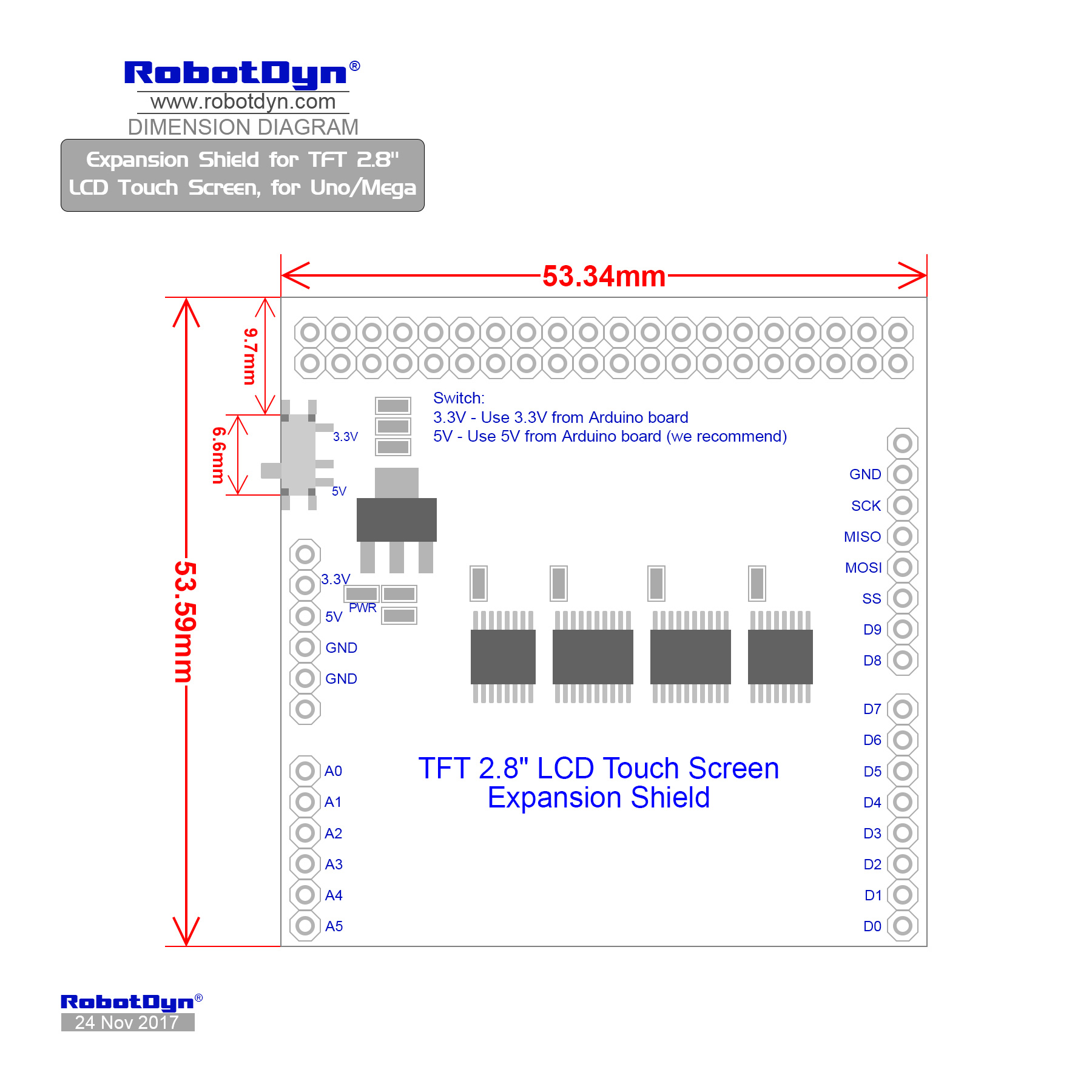

Dimensional drawing

 Dimensions Expansion Shield for TFT 2.8 inch LCD Touch Screen, for Uno/Mega Dimensions Expansion Shield for TFT 2.8 inch LCD Touch Screen, for Uno/Mega

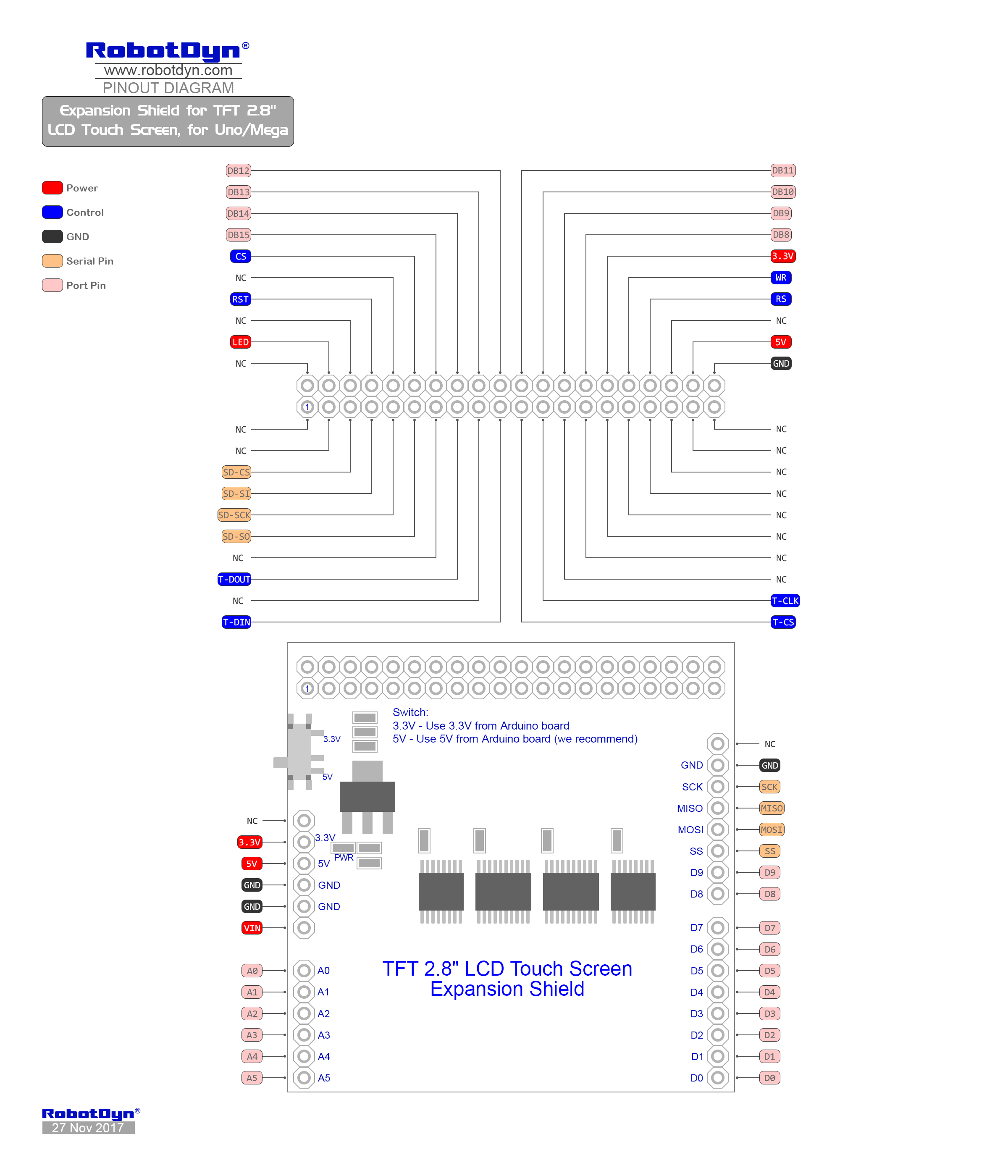

Pinout

 Pinout Expansion Shield for TFT 2.8 inch LCD Touch Screen, for Uno/Mega Pinout Expansion Shield for TFT 2.8 inch LCD Touch Screen, for Uno/Mega

Schematic

 Schematic of Expansion Shield for TFT 2.8 inch LCD Touch Screen, for Uno/Mega
