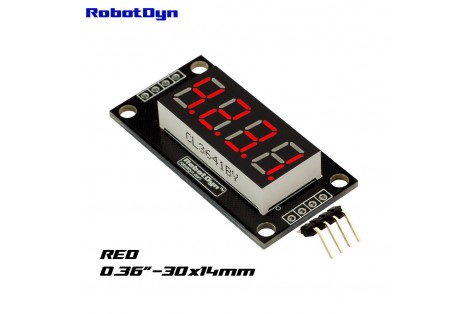

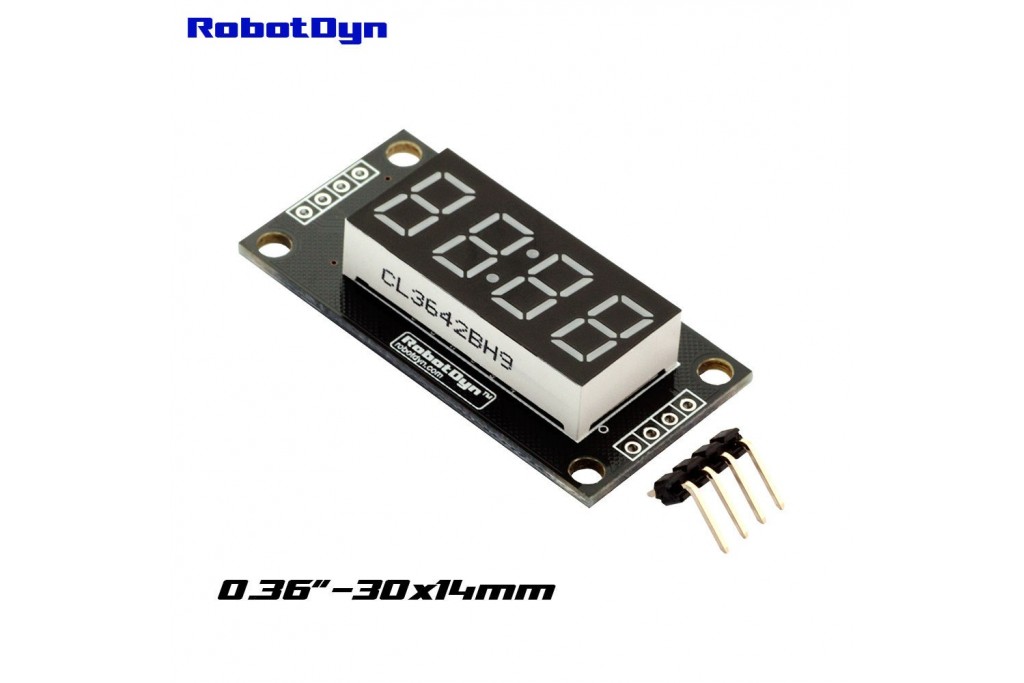

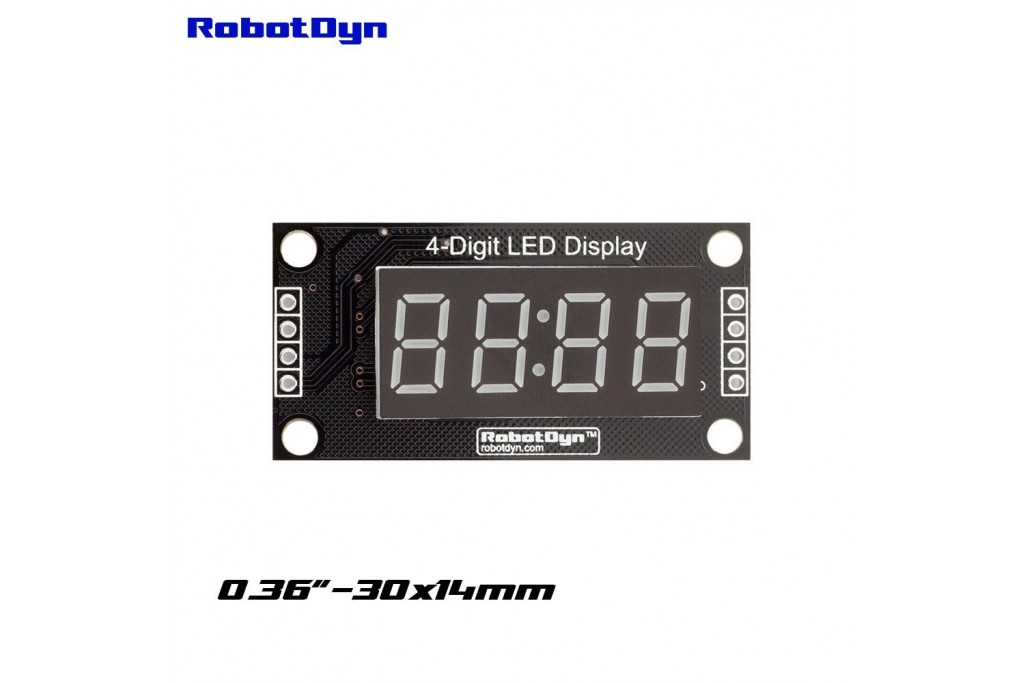

4-Digit LED Display Tube, 7-segments, TM1637, 30x14mm (Red (decimal point))

RDYN0136

New product

More info

Details about 4-Digit LED Display Tube, 7-segments, TM1637, 30x14mm

his is a basic 4-digit 7-segment display module.

Module connecting to digital I/O on 2 pins.

For Arduino use library: TM1637.h

(Download Library TM1637)

Documents

Dimensional drawing

Dimensions  4-Digit LED Display Tube 7-segments TM1637 30x14mm Dimensions  4-Digit LED Display Tube 7-segments TM1637 30x14mm

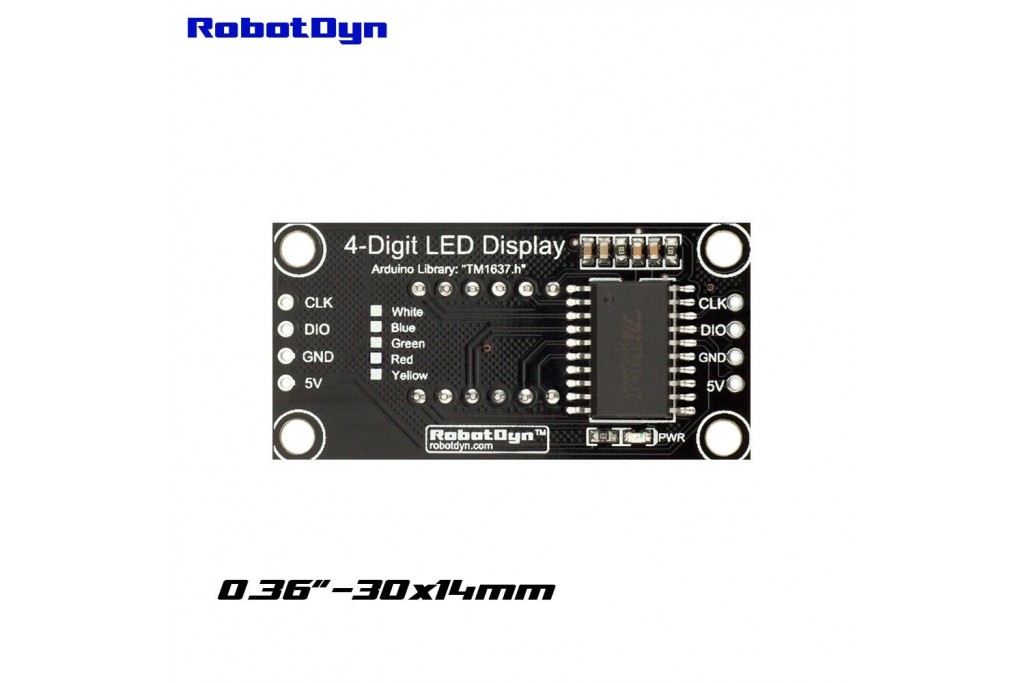

Pinout

Pinout  4-Digit LED Display Tube 7-segments TM1637 30x14mm Pinout  4-Digit LED Display Tube 7-segments TM1637 30x14mm

Schematic

Schematic of  4-Digit LED Display Tube 7-segments TM1637 30x14mm
