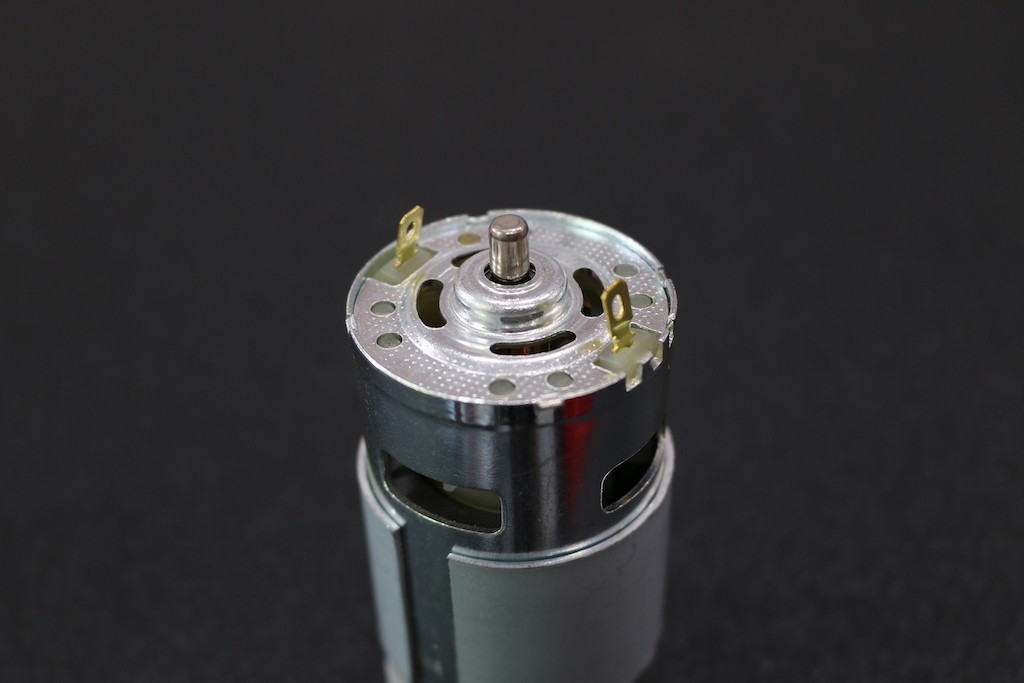

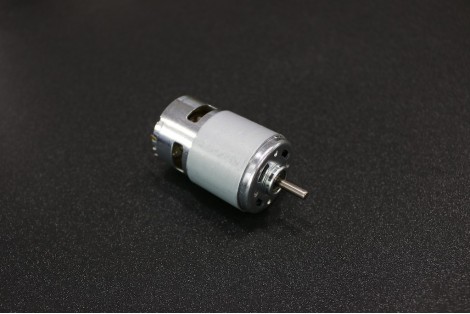

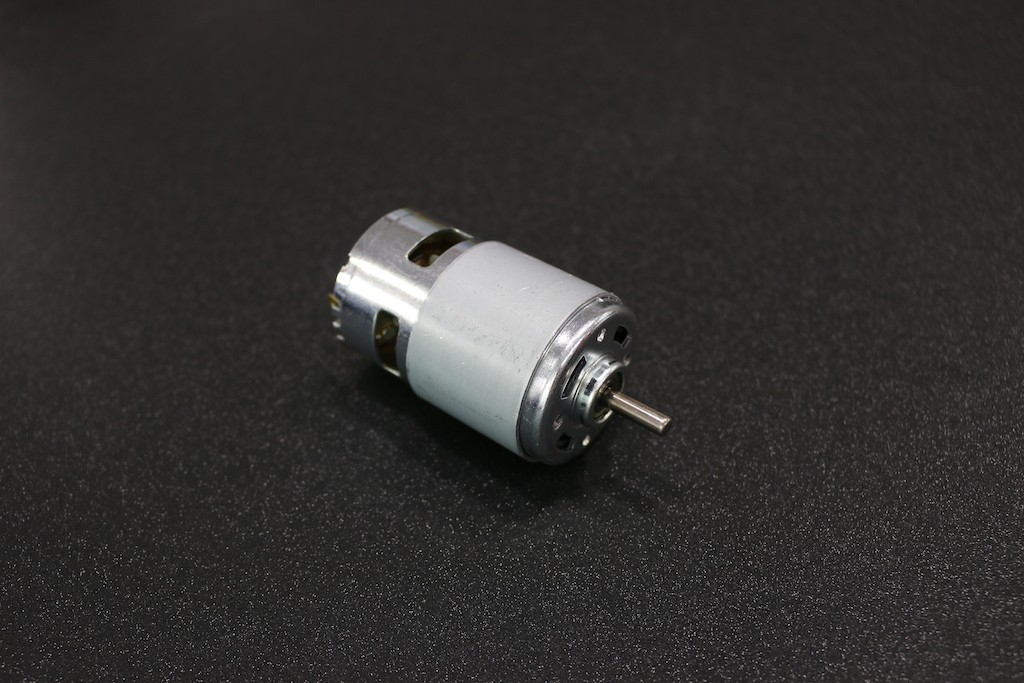

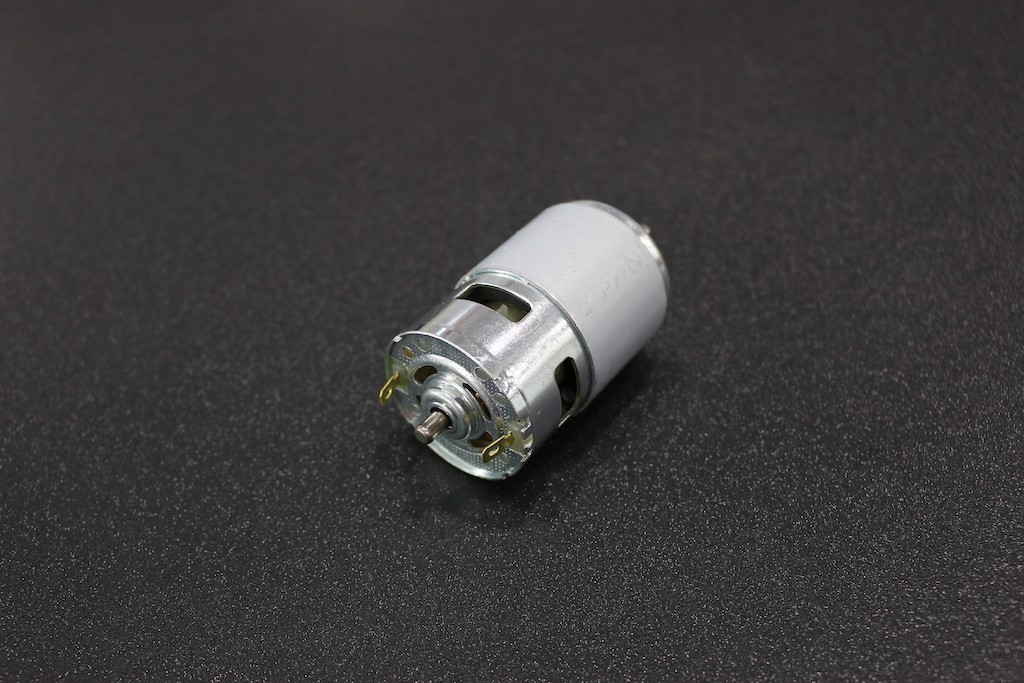

12V-36V 775 DC Motor

RB0053

New product

More info

Specification:

  • Brand new and high quality

  • Shaft Diameter: Approx. 5 mm

  • Shaft length: Approx. 17 mm

  • Body length: Approx. 66.7 mm

  • Front steps diameter: Approx. 17.4 mm

  • Former high level: Approx. 4.7 mm

  • Body diameter: Approx. 42 mm

  • Motor Overall Length: Approx. 98 mm

  • Diagonal installation pitch: Approx. 28.8 mm

  • Mounting hole size: M4

  • Mounting hole: 2

  • Cooling fan: Yes

  • Rated voltage: 24 V (Max. 36V)

  • Current Rating: 0.16 A

  • Rated Speed: 7000 RPM

Different voltage parameters:

  • DC 12V, current 0.14A, speed 3500RPM

  • DC 18V, current 0.15A, speed 4500RPM

  • DC 24V, current 0.16A, speed 7000RPM

  • DC 30V, current 0.17A, speed 8100RPM

  • DC 36V, current 0.20A, speed 9000RPM

Feature:

  • The front is ball bearing and back-end is copper

  • 5 groups winding

  • At a voltage of 24V, large torque, low noise
