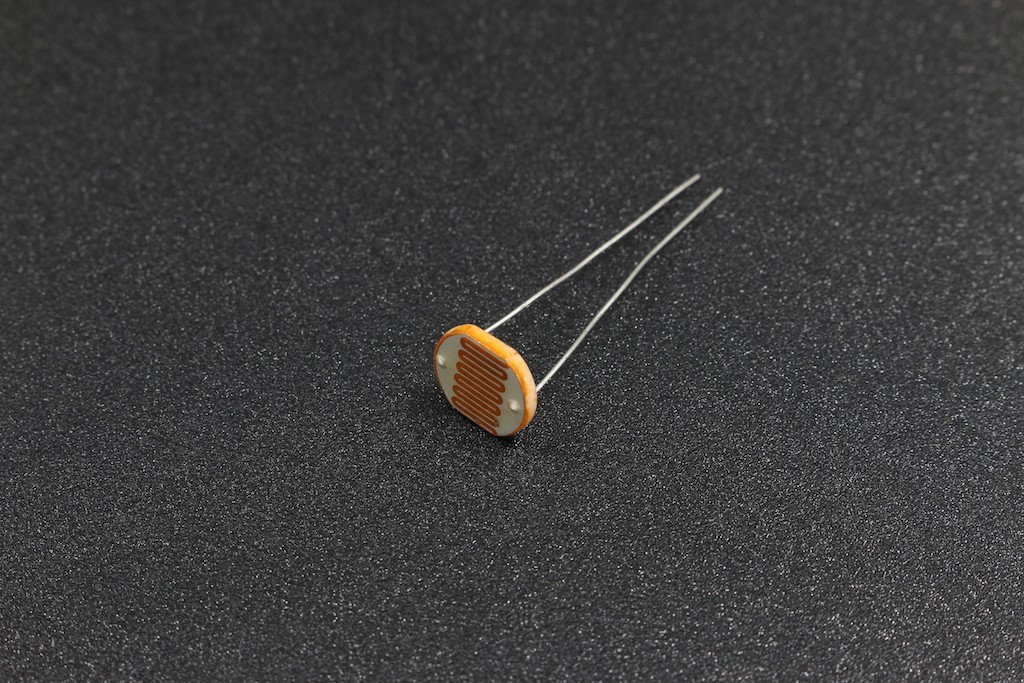

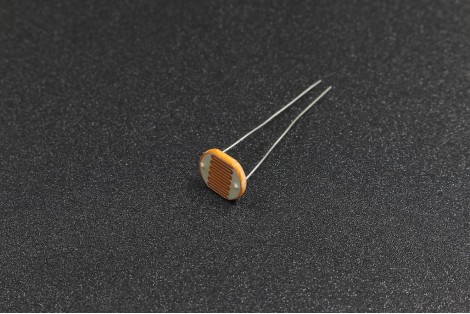

Light Dependence Resistor (10mm)

View larger

Light Dependence Resistor (10mm)

Reference: SR0083

Condition: New product

Send to a friend

Send to a friend

Light Dependence Resistor (10mm)

Recipient :

Name of your friend ^* :

E-mail address of your friend ^* :

^* Required fields

or Cancel
Print

More info

Photosensitive resistance is the resistance of a semiconductor material, the conductivity change with light intensity varies.
The use of this feature will work made of different shapes and light-receiving area of the photosensitive resistance.
Photoresistor is widely used in toys, lamps, cameras and other industries.

Specification:

Condition: NEW
Model: GL5516
Size: 5mm x 2mm
Maximum Voltage: 150 Volt DC
Maximum Wattage: 90mW
Operating Temperature: -30 ~ +70 deg C
Spectral Peak: 540nm
Light Resistance (10 Lux): 5-10 Kohm
Dark Resistance: 0.5 Mohm
Resistance Illumination: 4
