> >MC-38 Wired Door Window Sensor
MC-38 Wired Door Window Sensor View larger
Previous Next

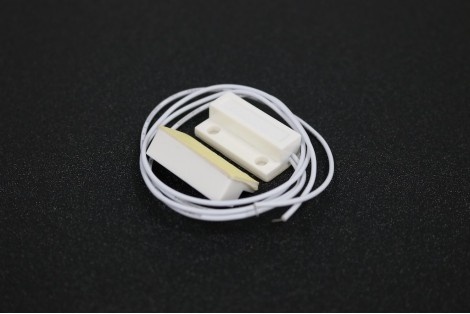

MC-38 Wired Door Window Sensor

SR0032

New product

More info

Detail about Door Window Sensor

 Features

  • Switch Type: NO(normal open type), circuit is connected when magnet is near the switch.
  • The reed switch is an electrical switch operated by an applied magnetic field.
  • Designed for use with alarm systems. Great for use in family and factory window, door. etc.
  • With double-sides tape design that for easily install.

Specifications

Product Name Magnetic Door Contacts
Model MC 38
Contact Capacity 0.5A(Maximum Switch Current)
Voltage 100V
Rated Power 10W
Actuation Distance 15-25mm
Cable Length 10" / 25.4cm
Size(Approx) 2.8  x 1.5 x 1.3 / 1.1" x 0.6" x 0.5"(L*W*H)
Color White
Housing Material Plastic
Weight 8g
package Content 1 x Magnetic Door Contacts
Metals shield : anti-fire ABS
Notes

  • No external power supply, connect to wired or wireless alarm control panel GND and N.C ports directly!
  • Please note that this item not fit to iron or aluminum alloy door, It will decline magnetic of the sensor
  • Connecting Mode: N.C.
