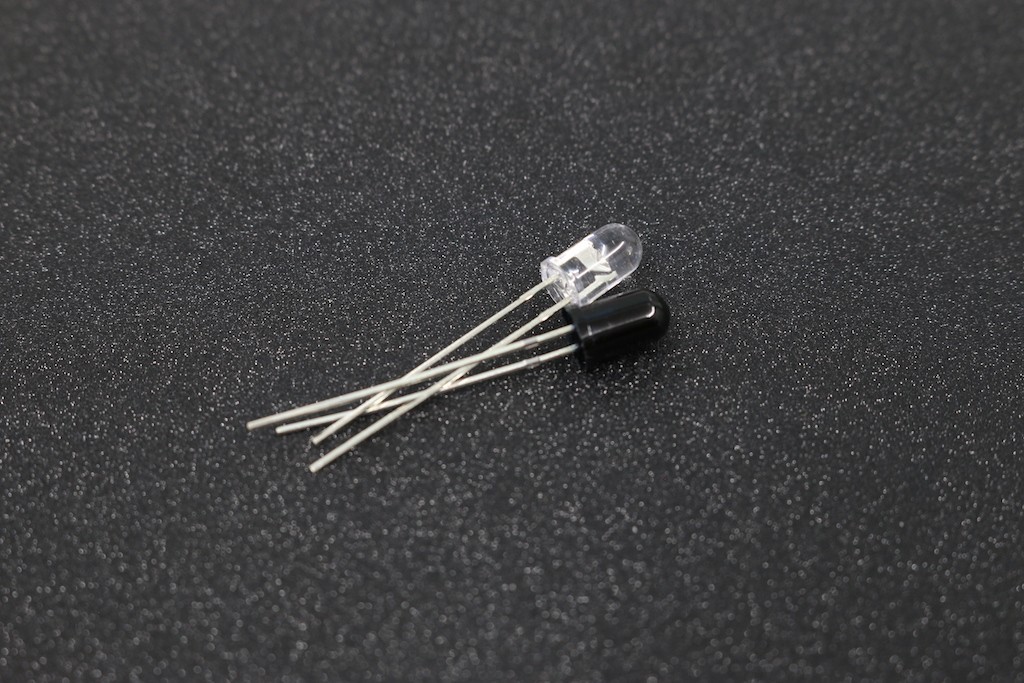

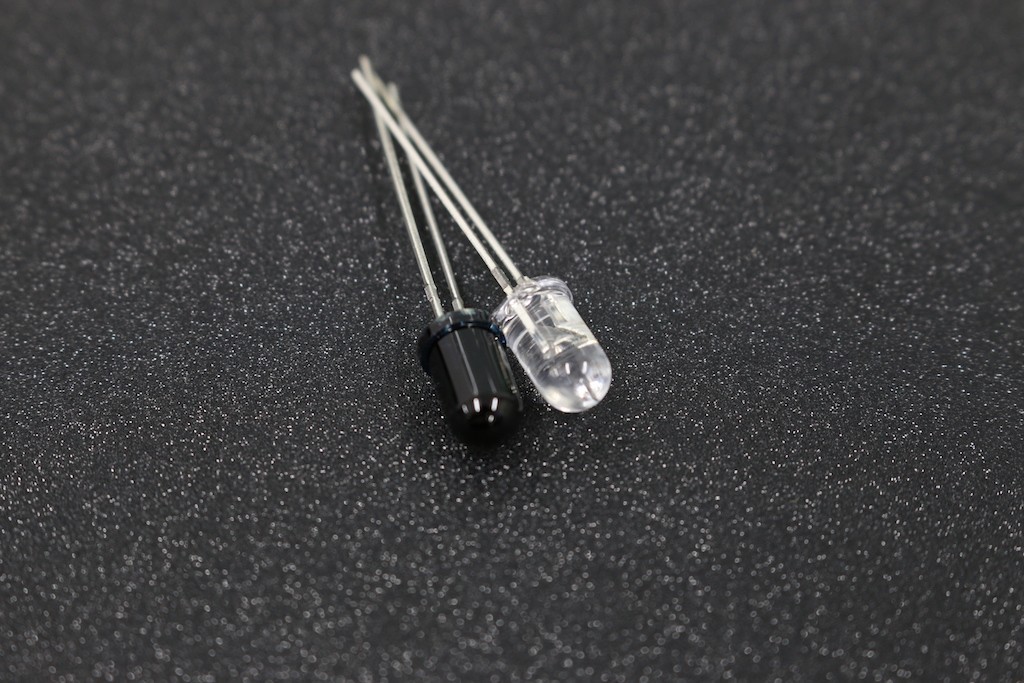

5mm Infrared receiver and Infrared emitting transmit diodes IR LED

Reference: SR0035

Condition: New product

Send to a friend

Send to a friend

5mm Infrared receiver and Infrared emitting transmit diodes IR LED

Recipient :

Name of your friend ^* :

E-mail address of your friend ^* :

^* Required fields

or Cancel
Print

More info

Detail about IR transmitter

An infrared emitter, or IR emitter, is a source of light energy in the infrared spectrum. It is a light emitting diode (LED) that is used in order to transmit infrared signals from a remote control. In general, the more they are in quantity and the better the emitters are, the stronger and wider the resulting signal is. A remote with strong emitters can often be used without directly pointing at the desired device. Infrared emitters are also partly responsible for limits on the range of frequencies that can be controlled. An IR emitter generates infrared light that transmits information and commands from one device to another. Typically one device receives the signal then passes the infrared (IR) signal through the emitter to another device.

Detail about IR Receiver

An infrared receiver, or IR receiver, is hardware that sends information from an infrared remote control to another device by receiving and decoding signals. In general, the receiver outputs a code to uniquely identify the infrared signal that it receives. This code is then used in order to convert signals from the remote control into a format that can be understood by the other device. It is the part of a device that receives infrared commands from a remote control. Because infrared is light, it requires line-of-sight visibility for the best possible operation, but can however still be reflected by items such as glass and walls. Poorly placed IR receivers can result in what is called "tunnel vision", where the operational range of a remote control is reduced because they are set so far back into the chassis of a device.

Specifications

Power: 0.15 W
Receiving Angle: 40 degrees
Voltage (VF) : 1.1-1.4 V (0.1 V each file)
Wave long (WD) : 940 nm
Receiving tube (limit parameters (Absolute Maximum Ratings) (Ta = 25 ).
Maximum power: 70 mw;
Maximum forward current: 30 ma;
Maximum reverse voltage: 5 v;
Maximum pulse current peak: 75 ma;
Welding temperature/time: 260 / acuities 5 S ;
Working environment: - 25 ~ + 70
Storage temperature: - 25 ~ + 80

Note

The infrared receiver is black, so when the power supply to it, can not see the light.Receiving head belongs to sensor products,only use for receive infrared sig
