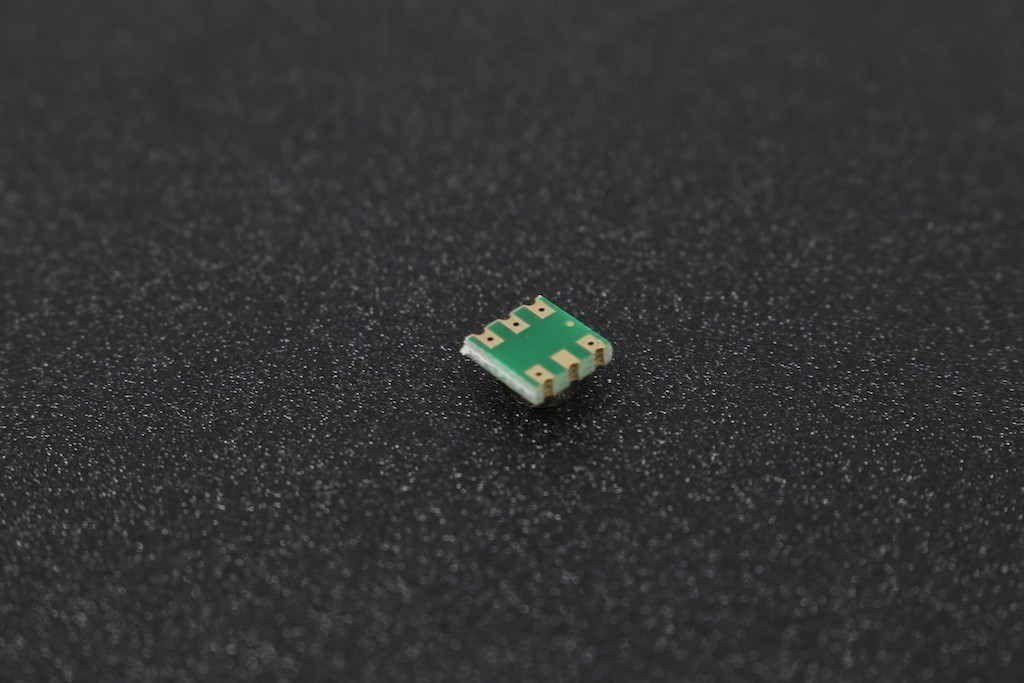

MD-PS002-700KPa Vacuum Sensor

Reference: SR0066

Condition: New product

Send to a friend

Send to a friend

MD-PS002-700KPa Vacuum Sensor

Recipient :

Name of your friend ^* :

E-mail address of your friend ^* :

^* Required fields

or Cancel
Print

More info

Detail about Vacuum Sensor

Descriptions

MD-PS002-150KPa pressure sensor operates at 5 V power supply or a constant current of 1 mA. This sensor is designed as a resistor bridge and is recommended to use with integrated circuit module. It can measure 150 kPa and can be used in automation projects which require compressed air.

It is widely used in industries for pressure switches and controls, portable pressure gauge, car air pump, steam engines, etc.

Other application involves MAP sensor, suspension mechanism control, aerodynamics miniature absolute pressure sensor, automotive sensors, cable leak detection, blood pressure monitors and more.

Feature

Economy, Compact
The chip surface coating protection against water vapor, dust and other chip
Pressure connection stainless steel, pressure
Pin-defined, easy connection
A variety of range to choose from

Specifications

Pressure Range : 15psi : 100psi(Absolute pressure)
Size : 6.8*6.8*4.6mm
Overload Capacity : 2 Times
Working Voltage : 5VDC or constant current 1mA(classic )
Output : mV
Accuracy : ±0.2%FS
Operation Temperature : -40...+125°C
Pressure Medium : Non-corrosive Gas

Applications

Weather Forecast
Altimeter
Pressure Gauge
Pneumatic Control Equipment
Automotive : tire gauge, car air pump, MAP sensor, diagnostic equipment, steam engine and suspension institutional control, automotive sensors.
Industry : pressure switches and controls, air brake switch, cable leak detection, portable pressure gauge.
Medical : patient monitoring and diagnostic equipment, blood pressure monitors.
Research : aerodynamics miniature absolute pressure sensor.
