> >DHT12 Digital Temperature and Humidity Sensor
DHT12 Digital Temperature and Humidity Sensor View larger
Previous Next

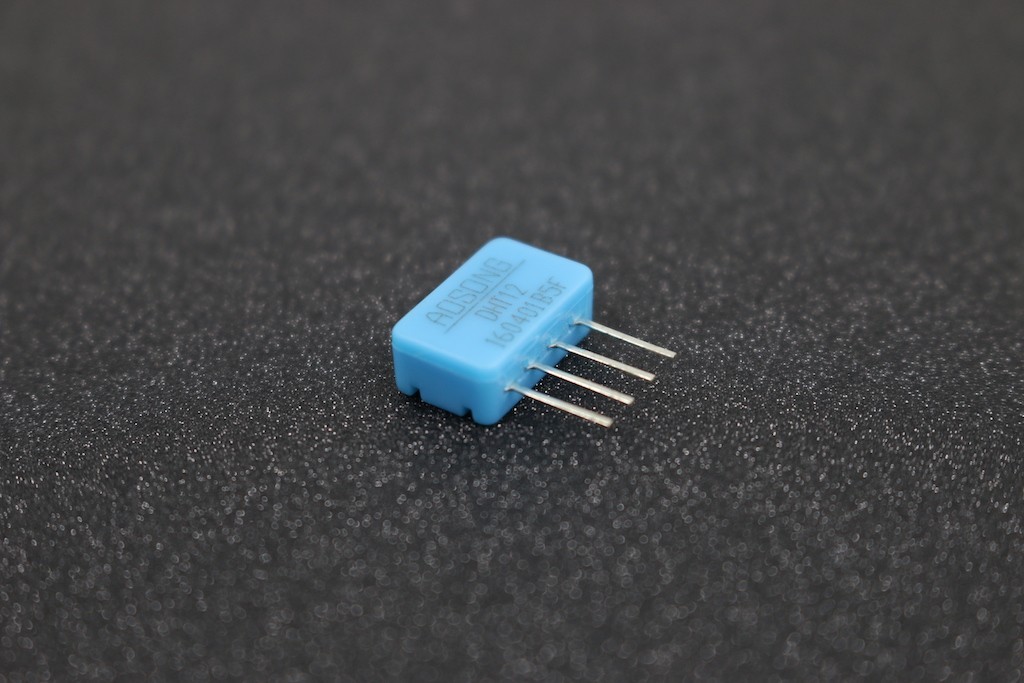

DHT12 Digital Temperature and Humidity Sensor

SR0069

New product

More info

Detail about Humidity Sensor

This is upgradation version of DHT11 humidity temperature sensor, fully downward compatible, more precise and add I2C interface.

Specifications

  • Super compact size
  • Super low power consumption
  • Super low voltage operation
  • Standard I2C and 1-wire interface.
  • Semi conductor technology
  • Sensing range :
    • Temperature: -20 ~ +60 C
    • Humidity: 20-95 RH
  • Humidity:
    • Resolution: 0.1%RH
    • Repeat: -+ 1%RH
    • Precision 25C @ -+5RH
  • Temperature:
    • Resolution: 0.1C
    • Repeat: -+0.2C
    • Precision: 25C @ -+0.5C
  • Power:DC 2.7-5.5V
  • Normal current 1mA
  • Standby current 60uA
  • Sample cycle: > 2 seconds
  • Pin interface: 1. VDD 2. SDA 3. GND 4. SCL (connect to GND when use as 1-wire)

Documents & Simple Codes
