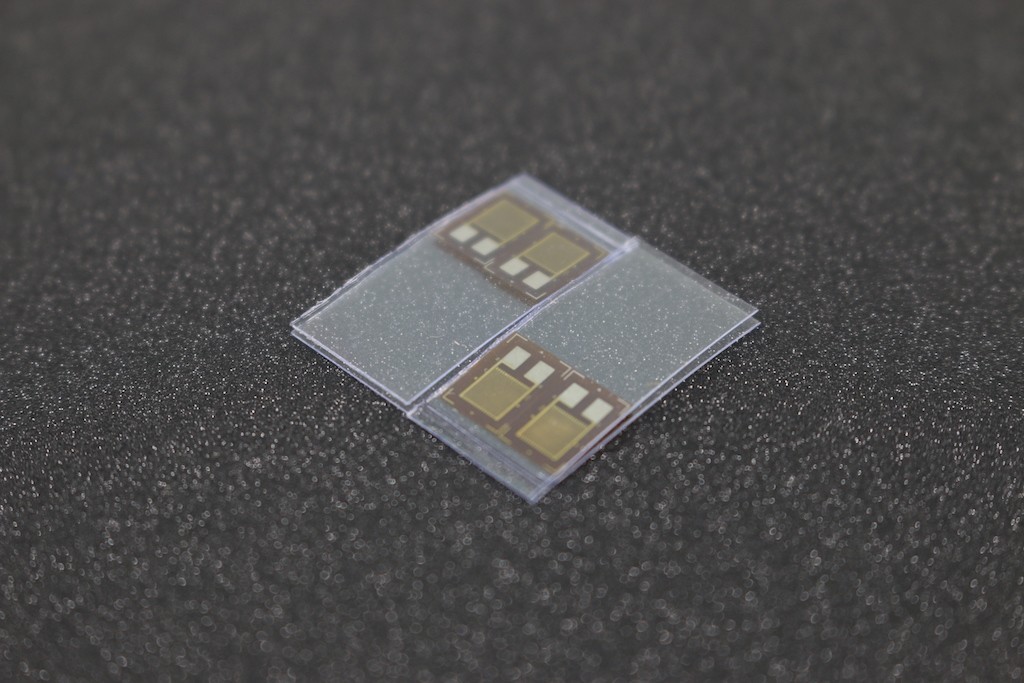

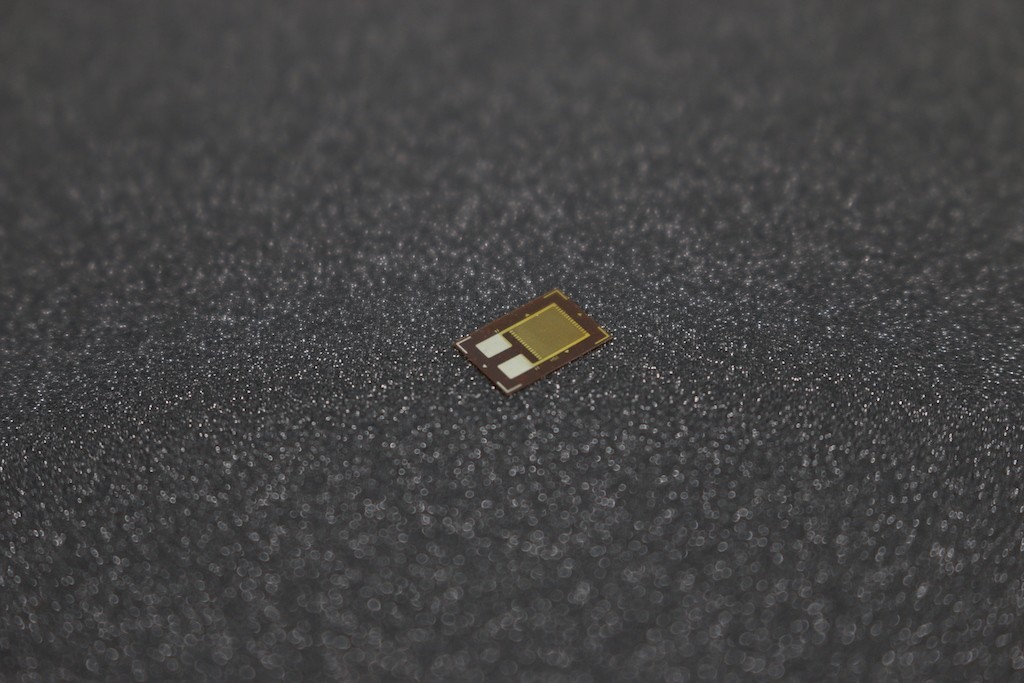

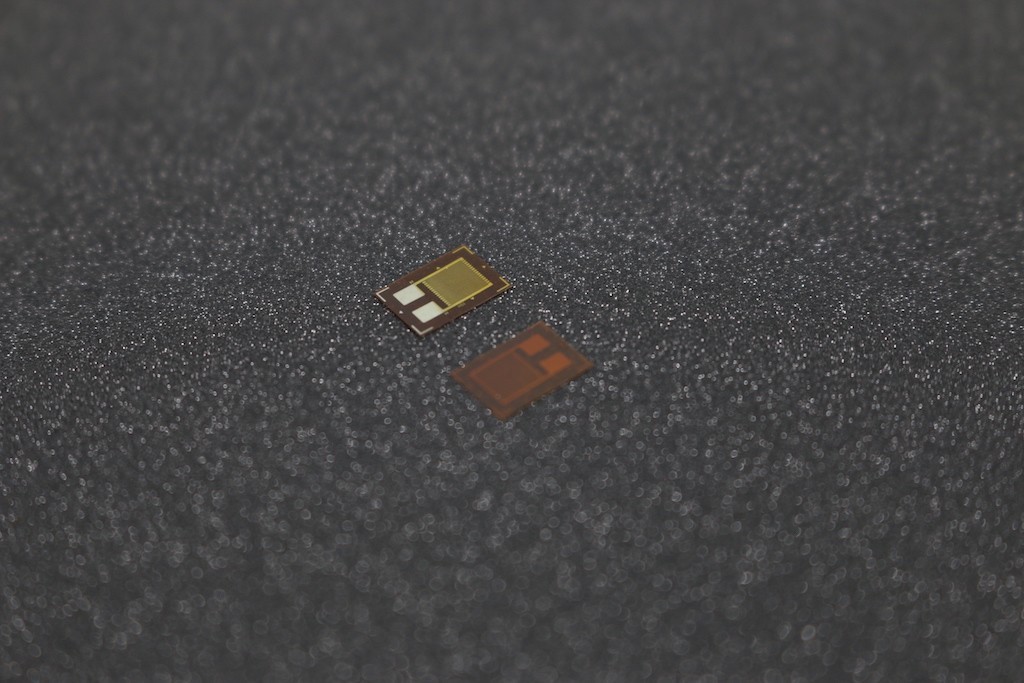

BF350 High Precision Resistance Strain Gauge Sensor

Reference: SR0071

Condition: New product

Send to a friend

Send to a friend

BF350 High Precision Resistance Strain Gauge Sensor

Recipient :

Name of your friend ^* :

E-mail address of your friend ^* :

^* Required fields

or Cancel
Print

More info

Detail about Strain Gauge Sensor

Descriptions

Modified phenolic resin backing, constantan alloy, encapsulated gauges with temperature compensation and creep compensation; high accuracy, good stability , for manufacturing precision transducers (0.02%FS).

Specifications

Nominal Resistance (Ohm) : 350
Tolerance of resistance : <±0.1%
Gauge factor : 2.00~2.20
Gauge factor resistance : <±1%
Strain Limit :2.0%
Fatigue life : >10 Power 7
Metal foil : Constantan alloy
Creep compensation : Available
Working temperature range : -30~+80°C
Temperature compensation : Titanium(9), Mild steel(11), Stainless steel(16), Aluminum(23), Magnesium(27), Plexiglass(65)
Curing temperature : 135°C(curing process) 165°C(post curing process)
Bonding adhesives : H-610
