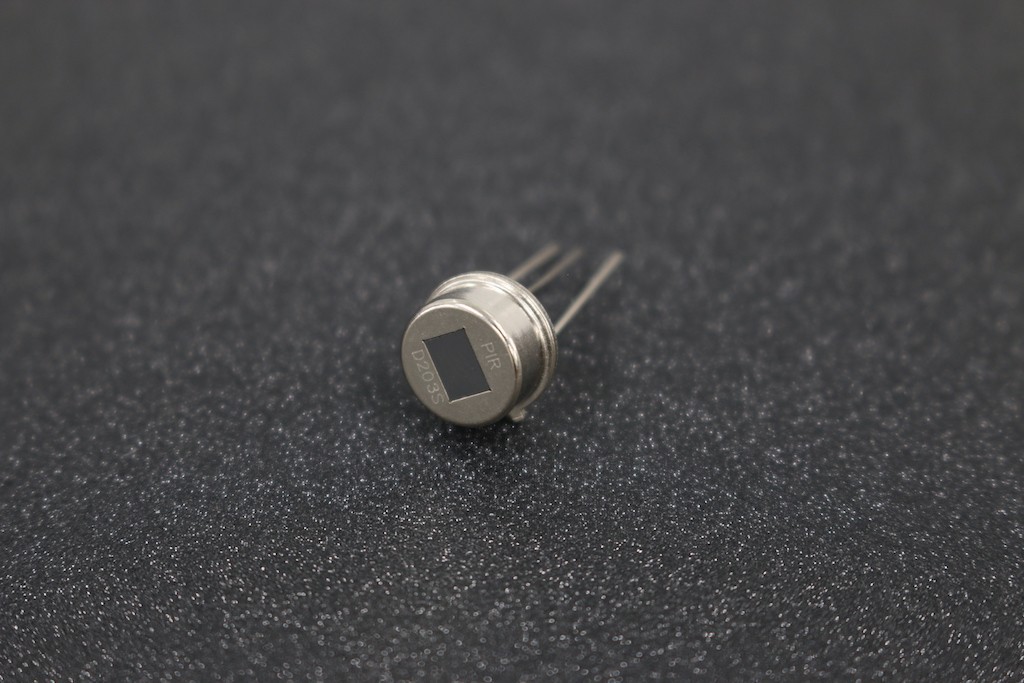

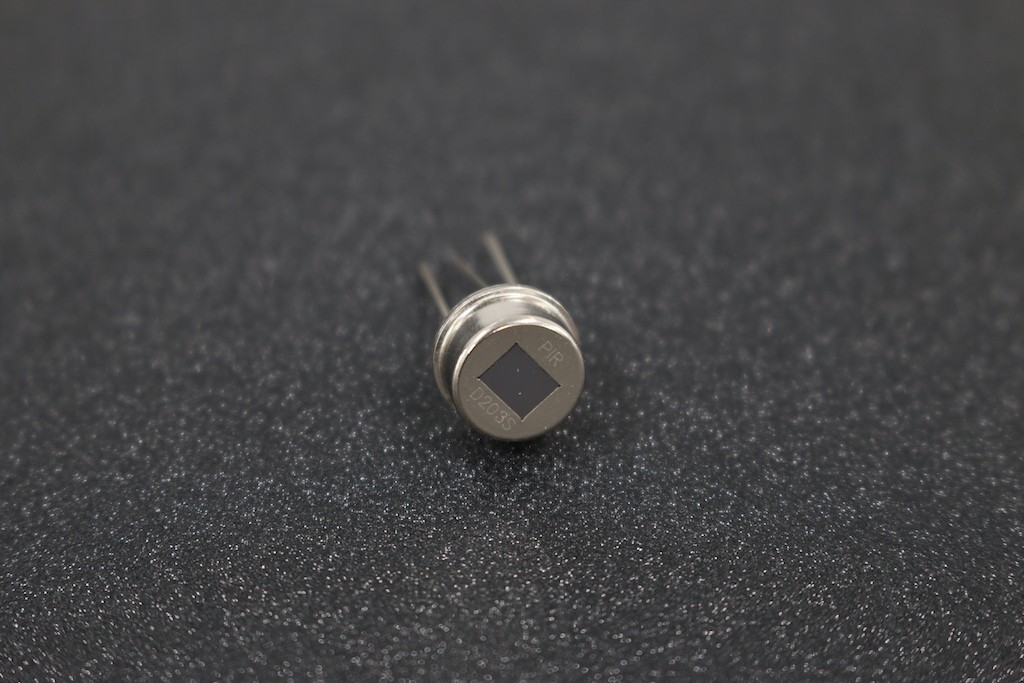

Pyroelectric PIR Infrared Radial Sensor Human Motion Detector(D203S). The pyroelectric infrared sensor detects infrared radiation on the basis of the characteristics that the polarization of pyroelectric material changes with temperature. Dual compensated sensing elements are applied to suppress the interference resulting from temperature variation. As a result, the operating stability of the sensor is greatly improved Our products can be used in many applications.
Specifications
- IR Receiving Electrode : 2*1mm, 2 elements
- Window Size : 3*4mm
- Spectral Response : 5-14um
- Transmittance : > 75%
- Output Signal[Vp-p] : > 3300mV
- Detectivity (D*) : 1.4*108 cmHz1/2/W
- Noise[Vp-p] : 70mV
- Output Balance : 10%
- Offset Voltage : 0.3-1.2V
- Supply Voltage : 3-15V
