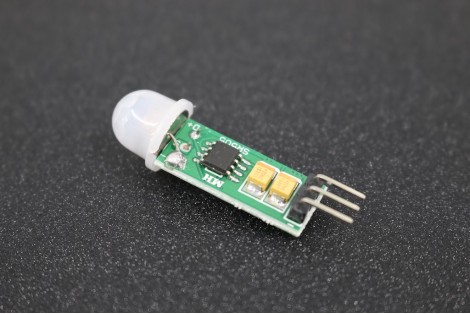

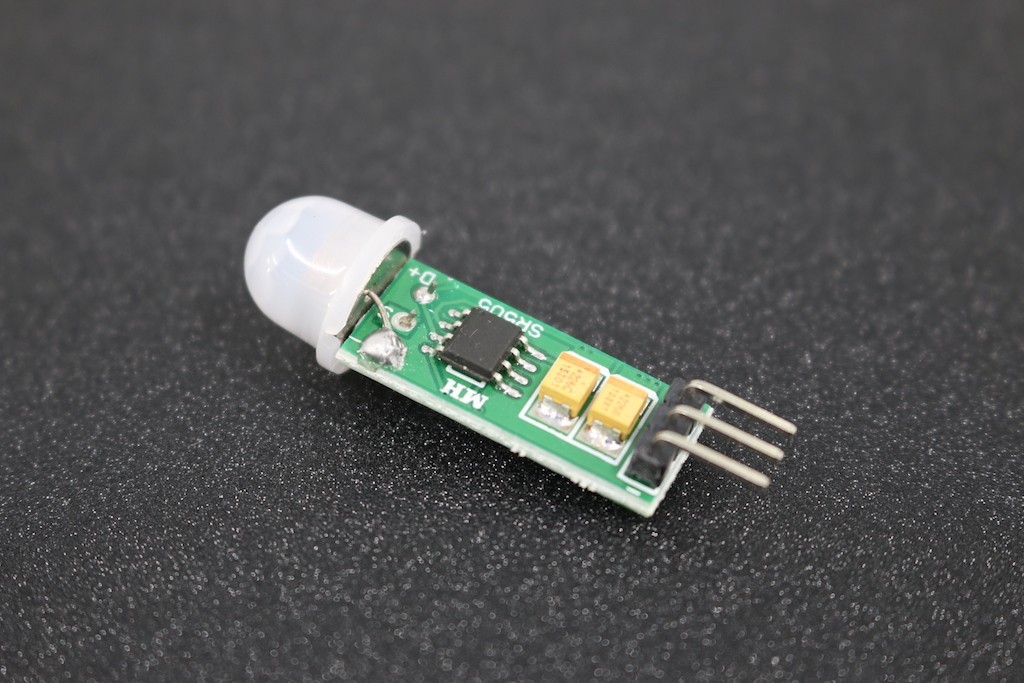

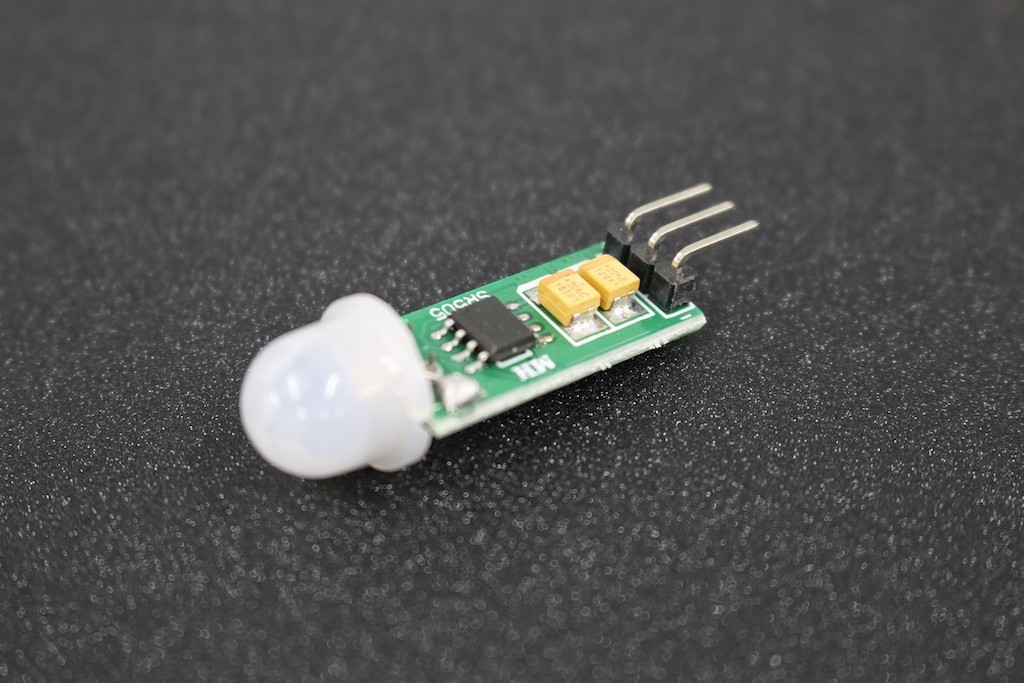

HC-SR505 Mini PIR Sensor

Description

           HC-SR505 Mini PIR Motion Sensor is based on infrared technology and it can automatic control by itself with high sensitivity and high reliability. Because of the minimum size and low-power operation mode, it widely used in various of automatic electronic equipment, especially battery-powered automatic products.

Features

• Automatic Control

• Minimum size

• Repeatable Trigger

• Wide range of operating voltage

• Low-power

• Output high signal

Applications

• Body induction lamps

• Body induction toys

• Security Products

• Industrial automation and control

• Auto-sensing of electrical equipment

• Battery-powered automatic control

Specifications

• Operating voltage range: DC4.5-20V

• Quiescent Current         : <60uA

• Level output                 : Gao 3.3V / Low 0V

• Trigger                         : reusable trigger (default)

• Delay Time                   : The default 8S + -30%

• Board Dimensions         : 10 * 23mm

• Induction angle             : <100 degrees cone angle

• Sensing distance           : 3 meters

• Working temperature     : -20 to +80 degrees

• Sensor Lens Dimensions: Diameter: 10mm

Documents & Simple Codes

• Datasheet
• SIMPLE CODES FOR ARDUINO
