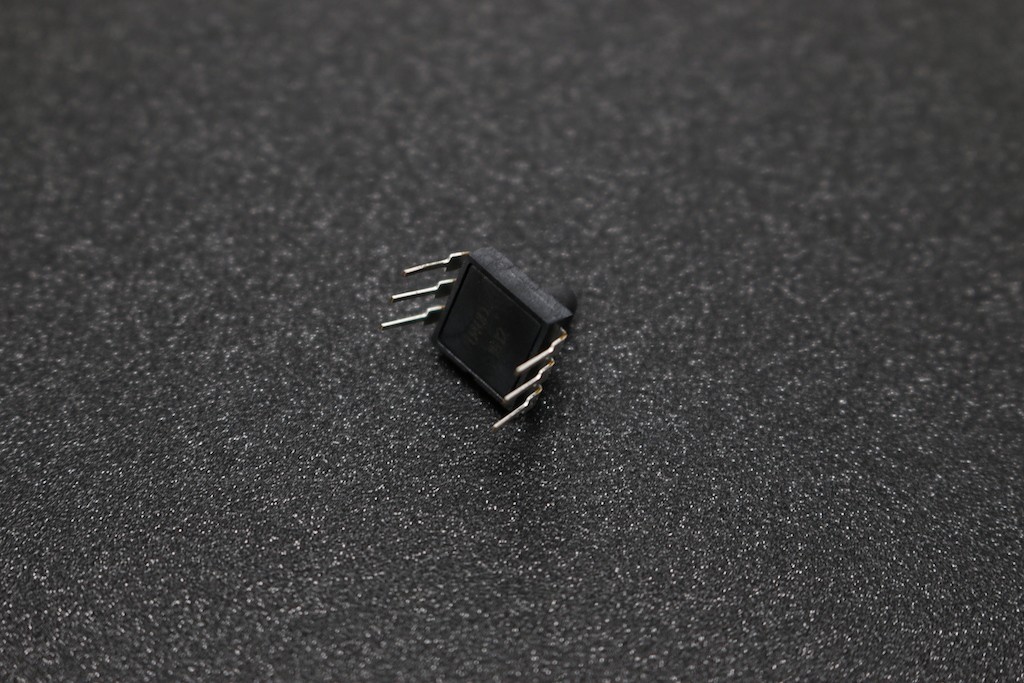

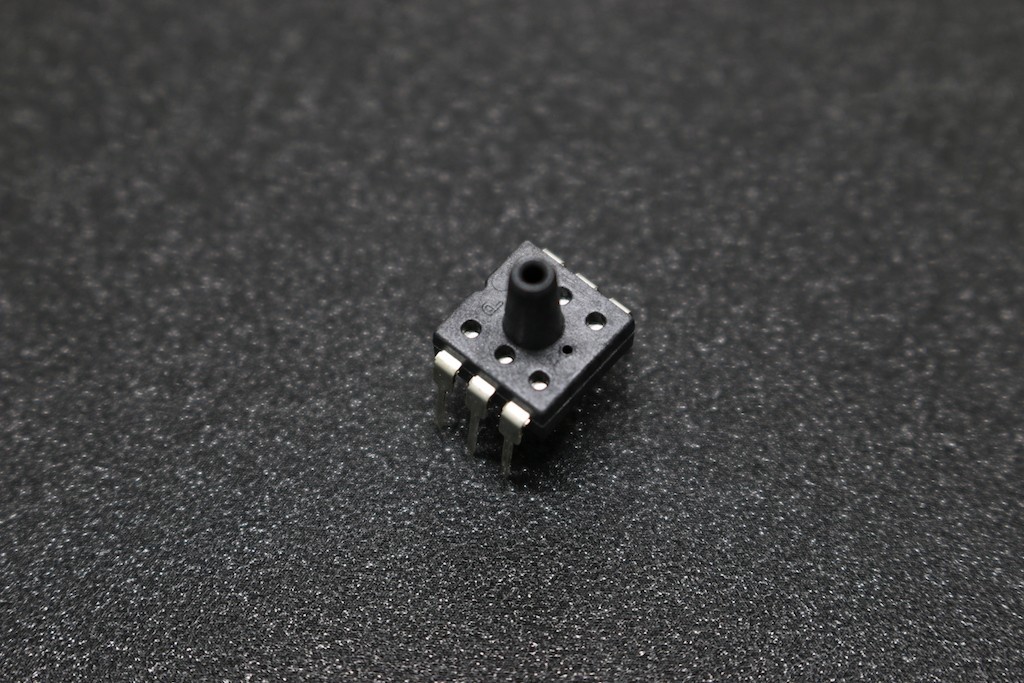

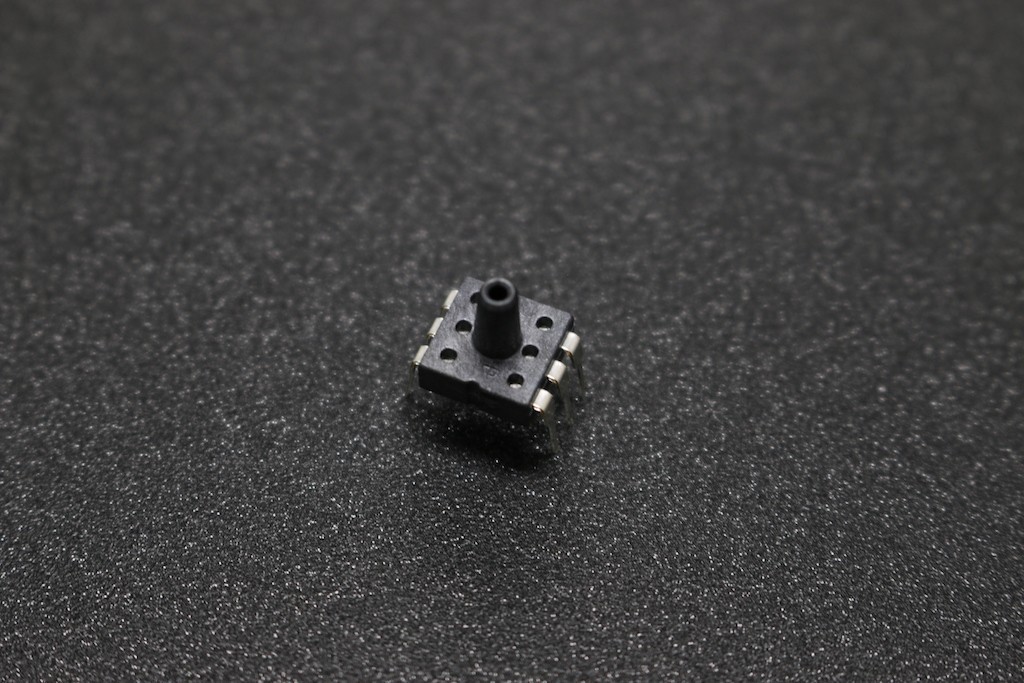

XGZP040DB1R40KPADIP MEMS Pressure Sensor

XGZP series is a pressure sensor suitable for biomedical , meteorology and other fields , the core part is the use of a MEMS pressure sensor chip processing technology . The pressure sensor chip by an elastic membrane and integrated in four film resistor composition . Four varistor forming a Wheatstone bridge structure , when pressure is applied to the elastic film will have a bridge to the applied pressure into a voltage output signal linearly proportional relationship .

Features

• Measuring range -100kPa ~ 20kPa ... 700kPa
• MEMS Technology
• Gauge form
• SOP or DIP package
• For non- corrosive gases or liquids
• Operating temperature range : -40 ° ~ + 125 °
• Chip back pressure chamber pressure
• Pin direction selectable

Specifications

• Electronic sphygmomanometer
• Oxygen machines
• Alcohol testers
• Monitors and other medical fields
• Automotive electronics tire pressure
• MAP sensors Massage
• Massage chairs
• Air beds and other areas of sports and fitness equipment
• Art washing machines
• Coffee machines
• Emergency lights
• Vacuum cleaners
• Pneumatic components, etc.
