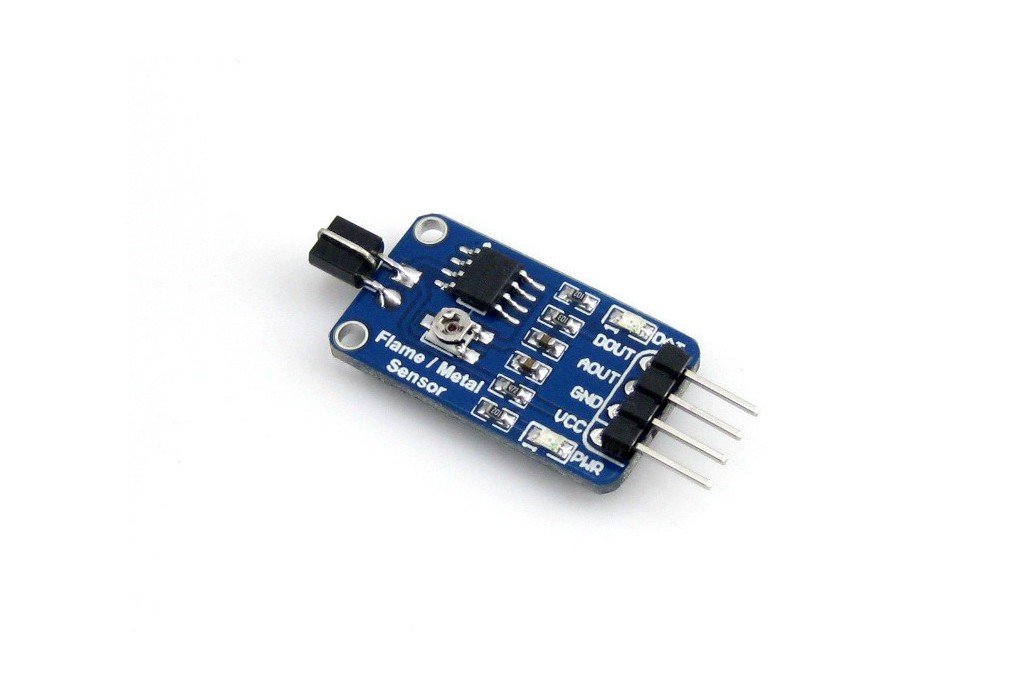

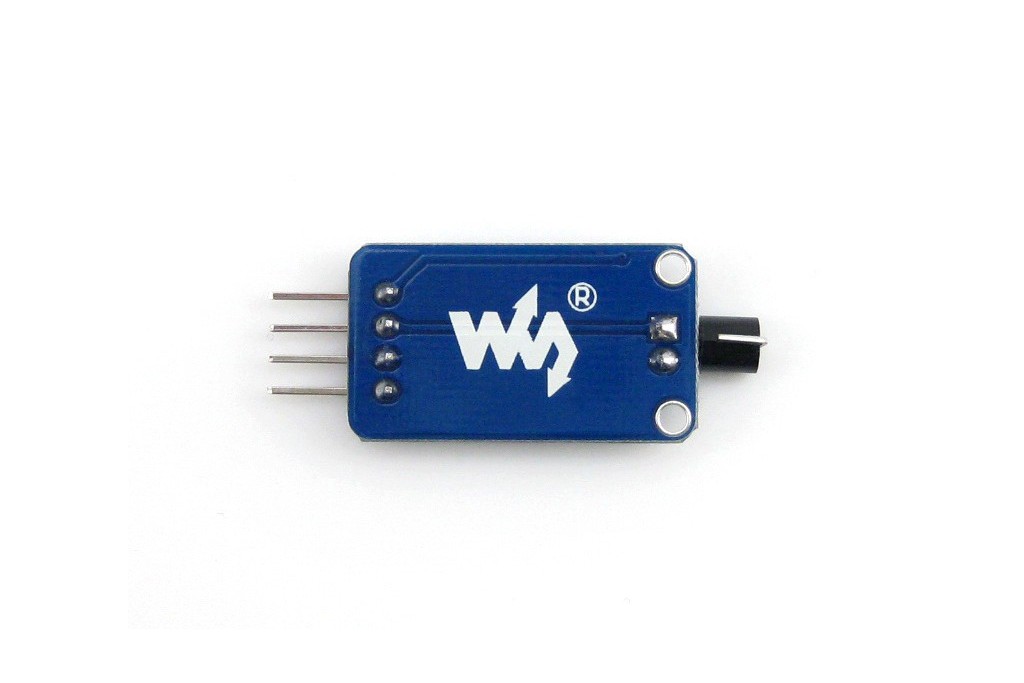

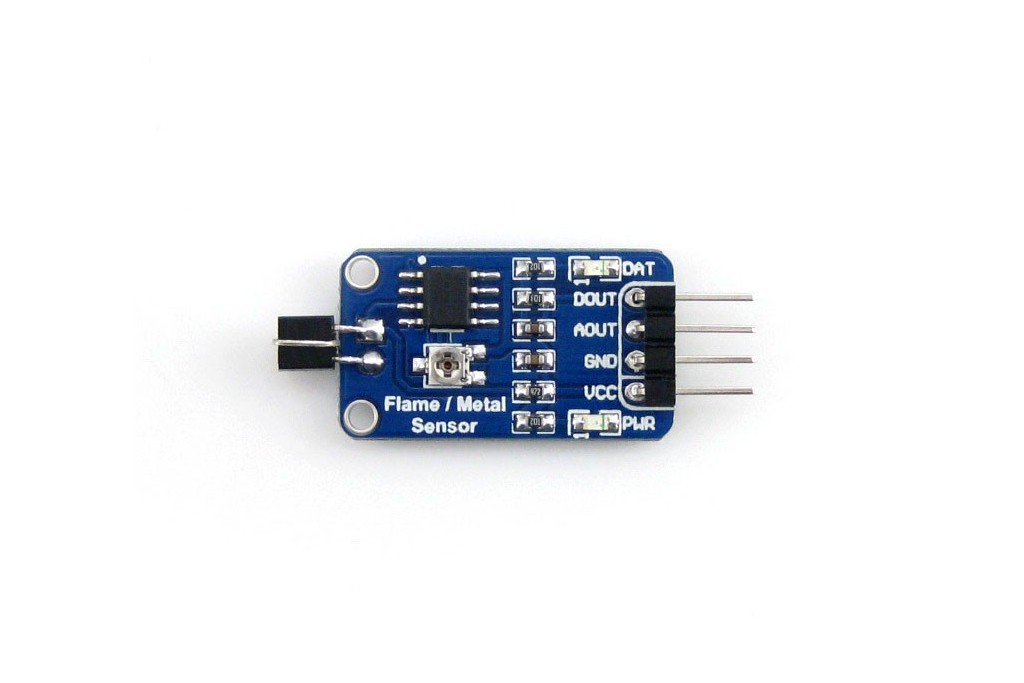

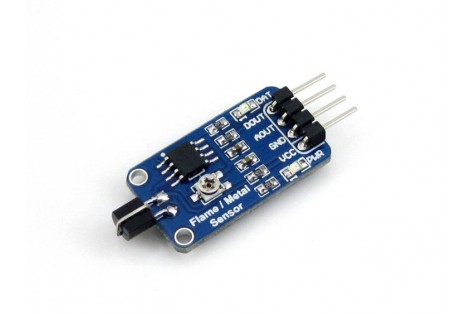

Metal Sensor

View larger

Previous

Next

Metal Sensor

Reference: WSM0065

Condition: New product

Send to a friend

Send to a friend

Metal Sensor

Recipient :

Name of your friend ^* :

E-mail address of your friend ^* :

^* Required fields

or Cancel
Print

More info

Metal Sensor

Overview

Sensitive to metal (only when in contact with metals)
Features wide range voltage comparator LM393
Adjustable sensitivity
Signal output indicator

Specifications

Power: 3.3V ~ 5.3V
Dimension: 29.2mm * 11.2mm
Mounting holes size: 2.0mm

Applications

Metal detection
Smart car
Electronic bricks

How to Use

In the case of working with a MCU:

VCC ↔ 3.3V ~ 5.3V
GND ↔ power supply ground
AOUT ↔ MCU.IO (analog output)
DOUT ↔ MCU.IO (digital output)

Photos

Package Contains

Metal Sensor × 1
4-pin custom connector jumper wire × 1

Downloads

Development resources: demo codes, schematic, datasheets, etc.
Click here to download

Reviews

No customer reviews for the moment.
