DHT11 Temperature-Humidity Sensor

WSM0072

New product

More info

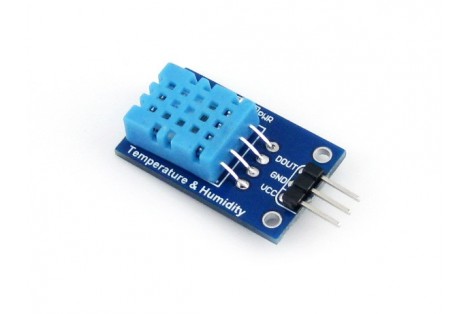

Temperature-Humidity Sensor, DHT11 Onboard

Overview

This is a calibrated digital temperature and humidity module with onboard sensor DHT11. It can be used for detecting ambient temperature and humidity, through the standard single-wire interface.

Specifications

  • Temperature
    • Resolution : 1°C
    • Accuracy : ±2℃
    • Measuring range : 0°C ~ 50°C
  • Humidity
    • Resolution : 1%RH
    • Accuracy : ±5%RH (0~50°C)
    • Measuring range : 20%RH ~ 90%RH (25°C)
  • Operating voltage : 3.3V ~ 5.5 V
  • Recommended storage condition
    • Temperature : 10°C ~40°C
    • Humidity : 60%RH or below

Applications

  • Weather station
  • Humidity controller
  • Test & detection device

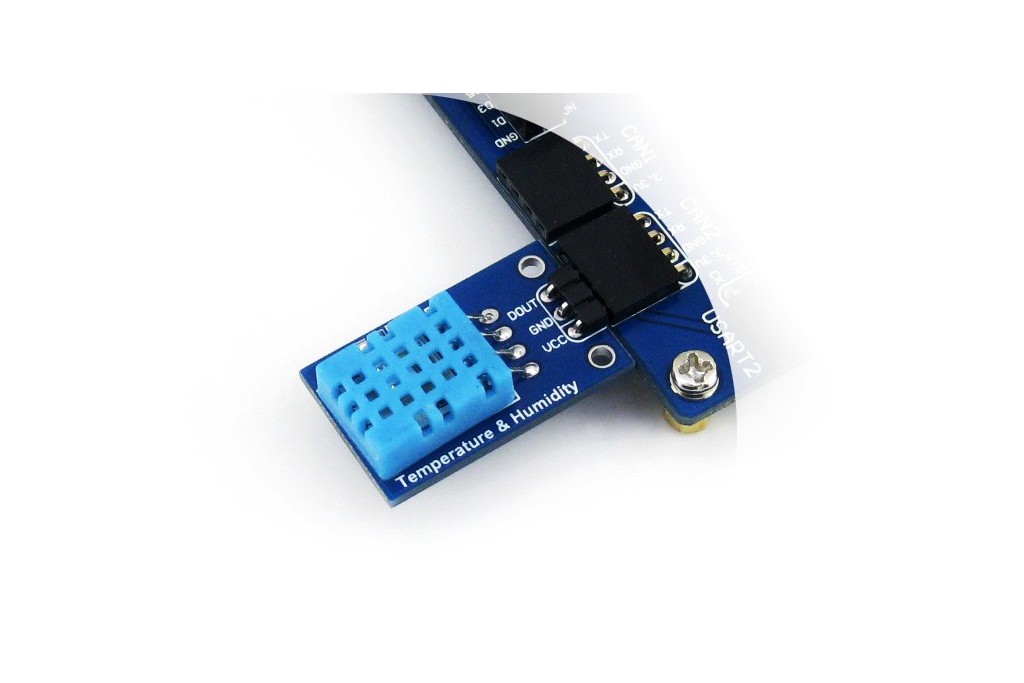

How to Use

In the case of working with a MCU:

  • VCC ↔ 3.3V ~ 5.5V
  • GND ↔ GND
  • DOUT ↔ MCU.IO

Dimension

Development Resources

Wiki : www.waveshare.com/wiki/DHT11_Temperature-Humidity_Sensor
