> >0.96inch OLED (A)

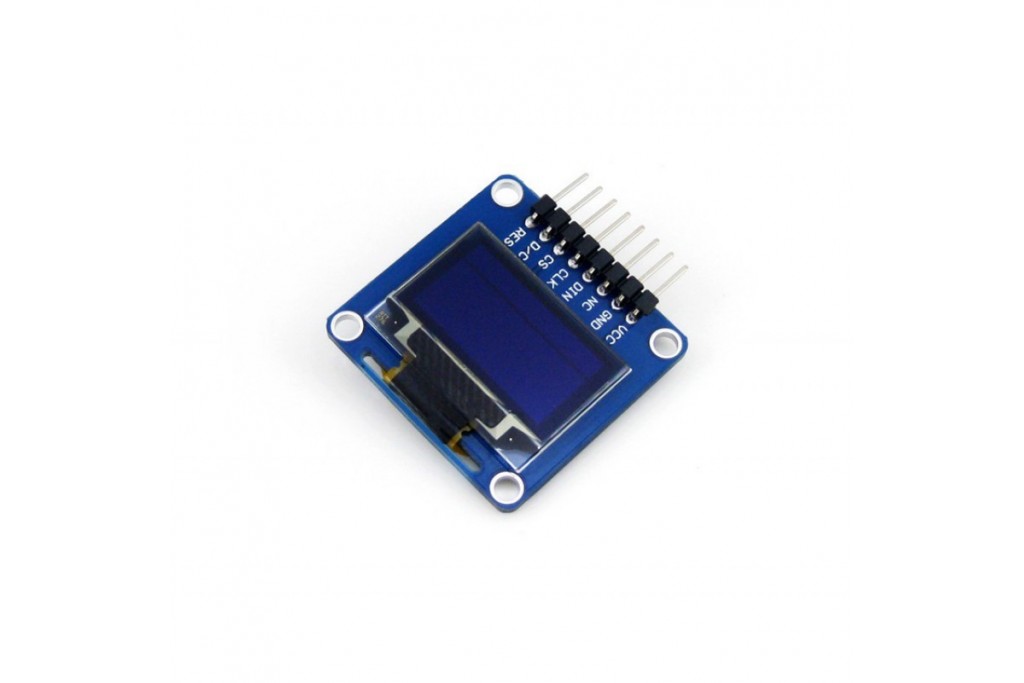

0.96inch OLED (A) View larger

0.96inch OLED (A)

WSM0097

New product

More info

0.96inch OLED, SPI/I2C interfaces, curved/horizontal pinheader

Key Parameters

Driver Chip SSD1306
Interface 3-wire SPI, 4-wire SPI, I2C
Resolution 128*64
Display Size 0.96inch
Colors Yellow, Blue
Visible Angle >160°
Dimension 33mm*33.50mm
Operating Temp. (℃) -20~70
Storage Temp. (℃) -30~80

Interface

PIN NO.SYMBOLDESCRIPTION
1 VCC Power positive (3.3~5V power input)
2 GND Ground
3 NC NC
4 DIN Data input
5 CLK Clock signal input
6 CS Chip selection, low active
7 D/C Command signal, low level for command, high level for data
8 RES Reset signal, low active

Hardware Config

Mode/InterfaceBS0/BS1DINSCK
3-wire SPI 1/0 MOSI SCLK
4-wire SPI 0/0
I2C 0/1 SDA SCL

Ordering Info

The 0.96inch OLED provides 2 options for the onboard pinheader:

  • 0.96inch OLED (A): curved/horizontal pinheader
  • 0.96inch OLED (B): straight/vertical pinheader

Downloads

Development resources: demo codes, schematic, datasheets, etc.
Wiki: www.waveshare.com/wiki/0.96inch_OLED_(A)

Photos

Dimension
