> >1.3inch OLED (A)

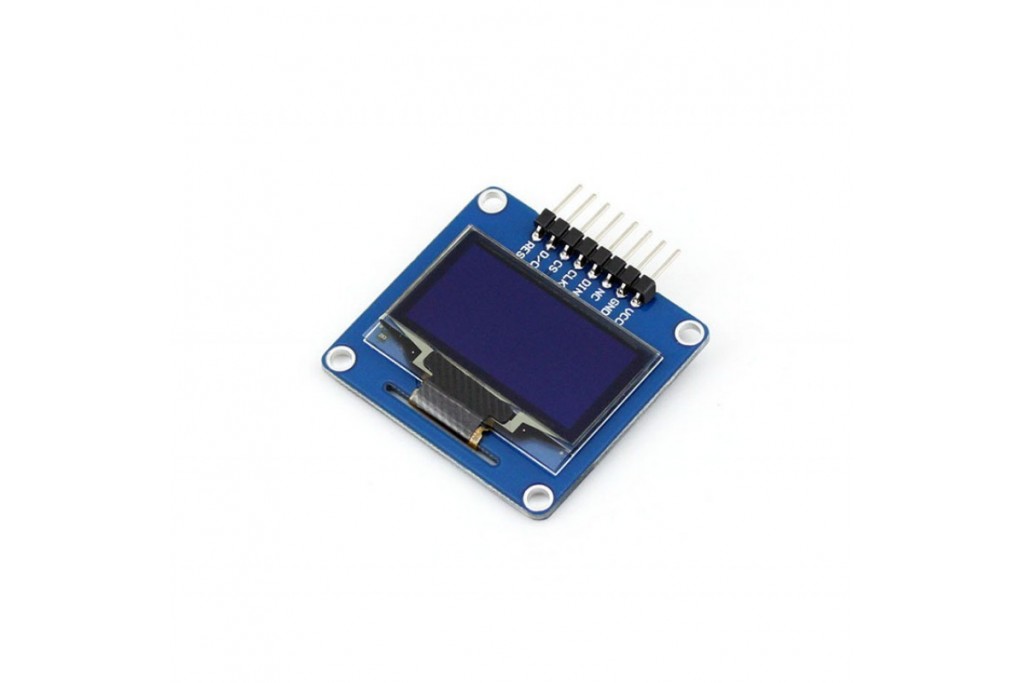

1.3inch OLED (A) View larger

1.3inch OLED (A)

WSM0102

New product

More info

1.3inch OLED, SPI/I2C interfaces, curved/horizontal pinheader

Key Parameters

Driver Chip SH1106
Interface 3-wire SPI, 4-wire SPI, I2C
Resolution 128*64
Display Size 1.3inch
Colors Blue
Visible Angle >160°
Dimension 40.50mm*37.50mm
Operating Temp. (℃) -30~70
Storage Temp. (℃) -30~80

Interface

PIN NO.SYMBOLDESCRIPTION
1 VCC Power positive (3.3~5V power input)
2 GND Ground
3 NC NC
4 DIN Data input
5 CLK Clock signal input
6 CS Chip selection, low active
7 D/C Command signal, low level for command, high level for data
8 RES Reset signal, low active

Hardware Config

Mode/InterfaceBS0/BS1DINSCK
3-wire SPI 1/0 MOSI SCLK
4-wire SPI 0/0
I2C 0/1 SDA SCL

Ordering Info

The 1.3inch OLED provides 2 options for the onboard pinheader:

  • 1.3inch OLED (A): curved/horizontal pinheader
  • 1.3inch OLED (B): straight/vertical pinheader

Downloads

Development resources: demo codes, schematic, datasheets, etc.
Wiki: www.waveshare.com/wiki/1.3inch_OLED_(A)

Photos

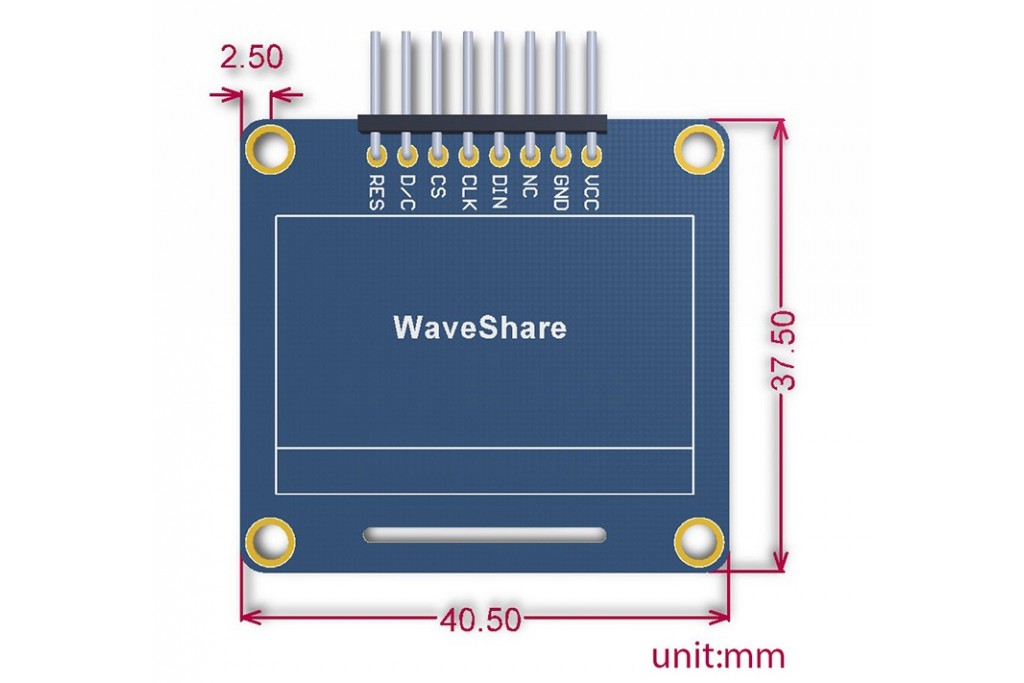

Dimension

Reviews

No customer reviews for the moment.

Write a review
