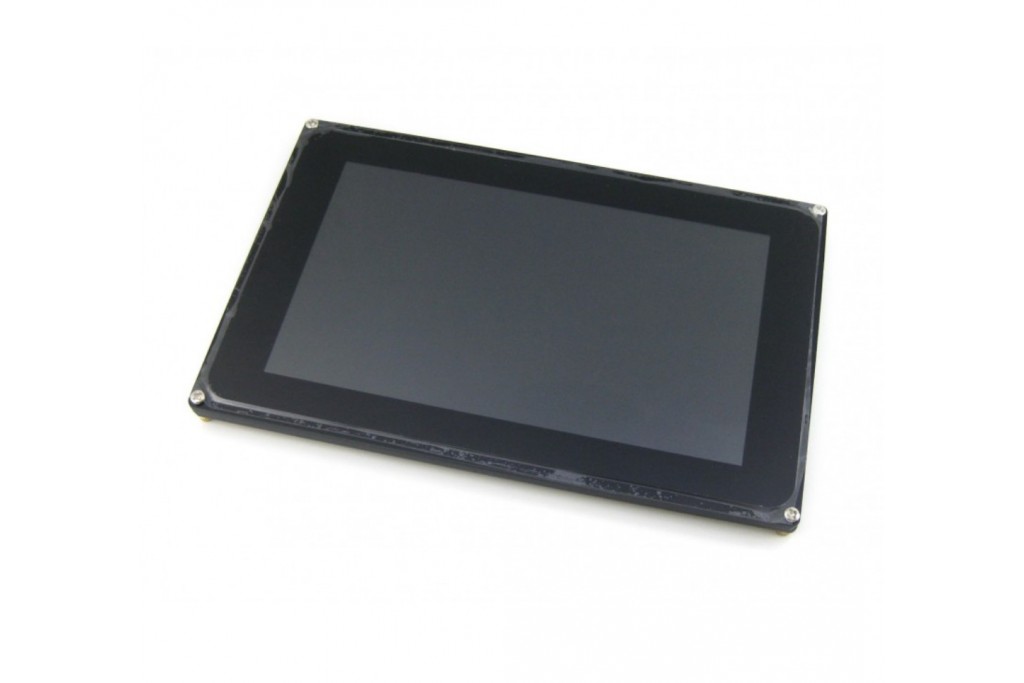

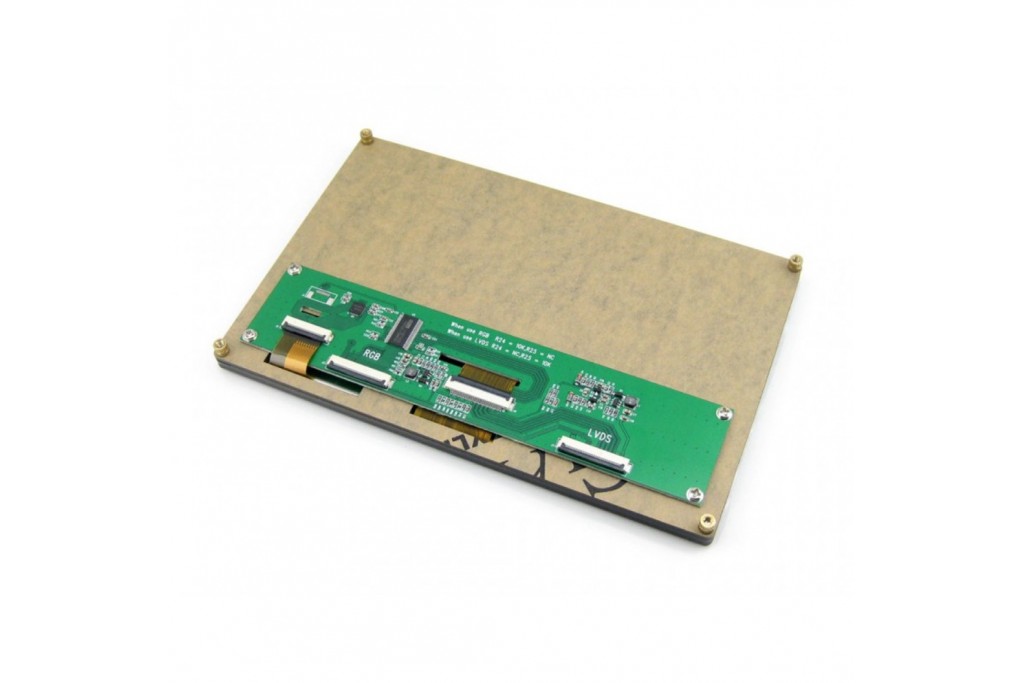

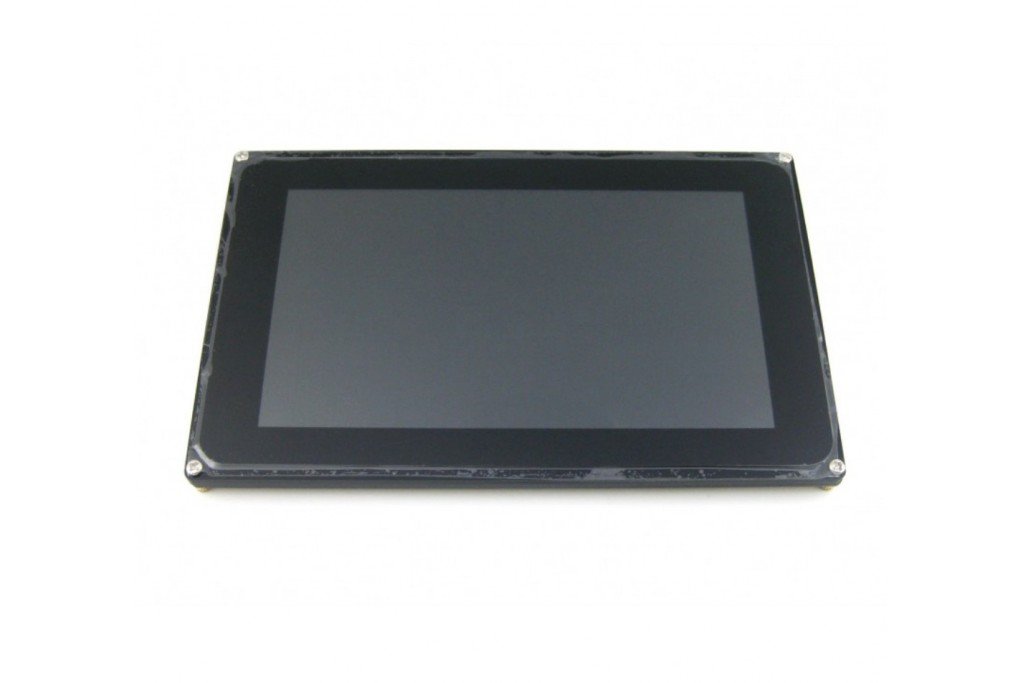

7inch Capacitive Touch LCD (D) 1024x600

Reference: WSM0078

Condition: New product

7 inch 1024*600 Multicolor Graphic LCD, with capacitive touch screen and stand-alone touch controller

Key Parameters

PIN NO.	SYMBOL	DESCRIPTION	Type	FUNCTION
1	BL_VDD	Power positive	Power	Backlight power, connects to 5V power supply
2	BL_VDD	Power positive		Backlight power, connects to 5V power supply
3	GND	Ground		GND
4	VDD	Power positive		Connects to 3.3V power supply
5	R0	Data pin	Input	Red data
6	R1
7	R2
8	R3
9	R4
10	R5
11	R6
12	R7
13	G0	Data pin	Input	Green data
14	G1
15	G2
16	G3
17	G4
18	G5
19	G6
20	G7
21	B0	Data pin	Input	Blue data
22	B1
23	B2
24	B3
25	B4
26	B5
27	B6
28	B7
29	GND	Ground	Power	GND
30	DCLK	LCD clock	Input	LCD clock signal
31	DISP	Backlight control enable	Input	Connects to VDD
32	HSYNC	Horizontal Synchronization	Input	Horizontal Synchronization signal input
33	VSYNC	Vertical Synchronization	Input	Vertical Synchronization signal input
34	DE	Control mode selection	Input	DE = 0 : SYNC mode DE = 1 : DE mode
35	PWM	Backlight brightness adjustment	Input	PWM signal for adjusting backlight
36	GND	Ground	Power	GND
37	I2C_SDA	I2C data	Input/Output	I2C data pin, read/write data
38	I2C_SCL	I2C clock	Input	I2C clock pin
39	CAP_WAKE	WAKEUP	Output	Wakeup external TP controller
40	CAP_INT	Interrupt	Output	External touch interrupt

PIN NO.	SYMBOL	DESCRIPTION	Type	FUNCTION
1	NC
2	VDD	Power positive	Power	Connects to 3.3V power supply
3	VDD
4	VDD
5	GND	Ground		GND
6	GND
7	GND
8	LVDS-D0N	Data pin	Input	Differential data input
9	LVDS-D0P	Data pin	Input	Differential data input
10	GND	Ground	Power	GND
11	LVDS-D1N	Data pin	Input	Differential data input
12	LVDS-D1P	Data pin	Input	Differential data input
13	GND	Ground	Power	GND
14	LVDS-D2N	Data pin	Input	Differential data input
15	LVDS-D2P	Data pin	Input	Differential data input
16	GND	Ground	Power	GND
17	LVDS-CLKN	Clock pin	Input	Differential clock input
18	LVDS-CLKP	Clock pin	Input	Differential clock input
19	GND	Ground	Power	GND
20	LVDS-D3N	Data pin	Input	Differential data input
21	LVDS-D3P	Data pin	Input	Differential data input
22	GND	Ground	Power	GND
23	NC
24	NC
25	GND	Ground	Power	GND
26	I2C_SDA	I2C data	Input/Output	I2C data pin, read/write data
27	I2C_SCL	I2C clock	Input	I2C clock pin
28	CAP_WAKE	WAKEUP	Output	Wakeup external TP controller
29	CAP_INT	Interrupt	Output	External touch interrupt
30	GND	Ground	Power	GND
31	BL_GND	Ground	Power	Backlight reference ground, connects to GND
32	BL_GND
33	BL_GND
34	NC
35	PWM	Backlight brightness adjustment	Input	PWM signal for adjusting backlight
36	DISP	Backlight control enable	Input	Connects to VDD
37	NC
38	BL_VDD	Power positive	Power	Backlight power, connects to 5V power supply

Wiki : www.waveshare.com/wiki/7inch_Capacitive_Touch_LCD_(D)

This item is compatible with the following products:

PartNumber	Touch Panel Type	Resolution	LCD Data Interface	Touch Controller	For Use With
7inch Resistive Touch LCD	Resistive	800x480	24PIN RGB	None	MCU with LCD controller and ADC
7inch Resistive Touch LCD (C)	Resistive	800x480	16PIN	Embedded RA8875	MCU without LCD controller
7inch Capacitive Touch LCD	Capacitive	800x480	24PIN RGB	FT5206GE1	MCU with LCD controller
7inch Capacitive Touch LCD (B)	Capacitive	800x480	24PIN RGB	GT811	MCU with LCD controller
7inch Capacitive Touch LCD (C)	Capacitive	800x480	16PIN	Embedded RA8875	MCU without LCD controller
7inch Capacitive Touch LCD (D)	Capacitive	1024x600	24PIN RGB/LVDS	FT5206GE1	MCU with LCD controller
10.1inch Capacitive Touch LCD (D)	Capacitive	1024x600	24PIN RGB/LVDS	FT5406	MCU with LCD controller
