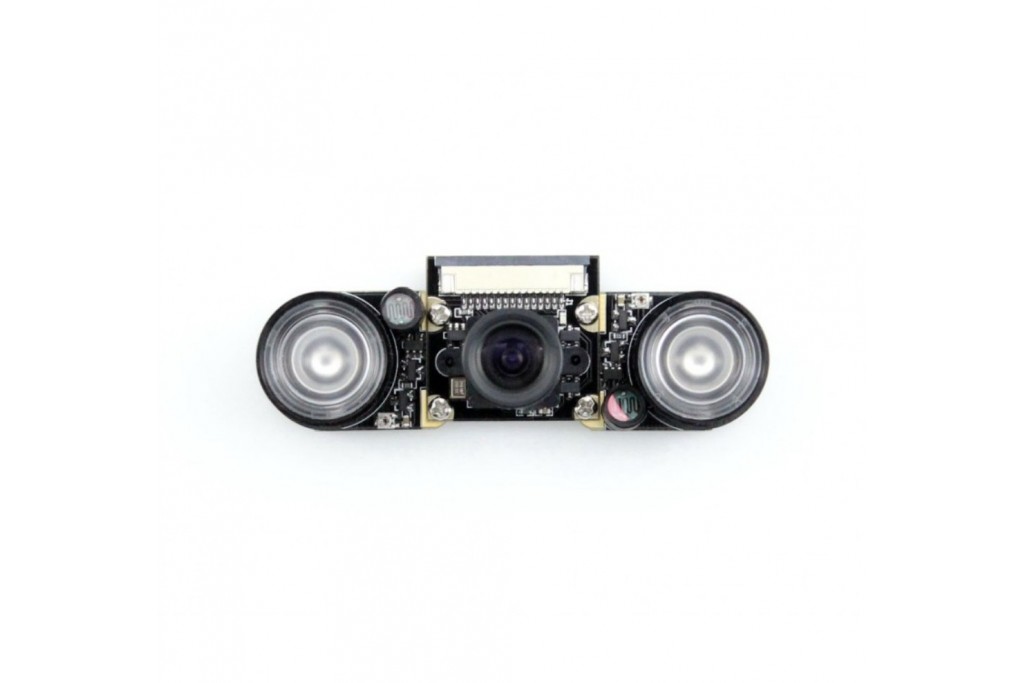

RPi Camera (F), Supports Night Vision, Adjustable-Focus

WSM0080

New product

More info

Raspberry Pi Camera Module, Supports Night Vision

Features

  • Raspberry Pi Night Vision Camera, supports all revisions of the Pi
  • 5 megapixel OV5647 sensor
  • Camera specifications
    • CCD size : 1/4inch
    • Aperture (F) : 1.8
    • Focal Length : 3.6MM (adjustable)
    • Diagonal : 75.7 degree
    • Sensor best resolution : 1080p
  • 4 screw holes
    • Used for attachment
    • Provides 3.3V power output
    • Supports connecting infrared LED and/or fill flash LED
  • Dimension : 25mm x 24mm

Downloads

Development resources:user manual, etc.
Download: www.waveshare.com/wiki/RPi_Camera_(F)

Selection Guide

PartnumberPixelsSensorAdjustable-focusInfrared LED IncludedAngle of View (degree)ManufacturerDimensions (mm)Recommendation *
RPi Camera 5 Mega OV5647 × × 72.4 element14 25x24x9 ★
RPi Camera (B) 5 Mega OV5647 √ × 75.7 Waveshare 32x32 ★★★★
RPi Camera (C) 5 Mega OV5647 × × 72.4 - 25x24x9 ★
RPi Camera (D) 5 Mega OV5647 × × 72.4 Waveshare 25x24x9 ★★★
RPi Camera (E) 5 Mega OV5647 × √ 72.4 Waveshare 25x24x6 ★★
RPi Camera (F) 5 Mega OV5647 √ √ 75.7 Waveshare 25x24 ★★☆
RPi Camera (G) 5 Mega OV5647 √ × 160 Waveshare 25x24 ★★★
RPi Camera (H) 5 Mega OV5647 √ √ 160 Waveshare 25x24 ★★★☆
RPi Camera (I) 5 Mega OV5647 √ × 170 Waveshare 32x32 ★★★☆

* The recommendation is considered from sales report and cost performance.
