RPi LED Matrix

WSM0110

New product

More info

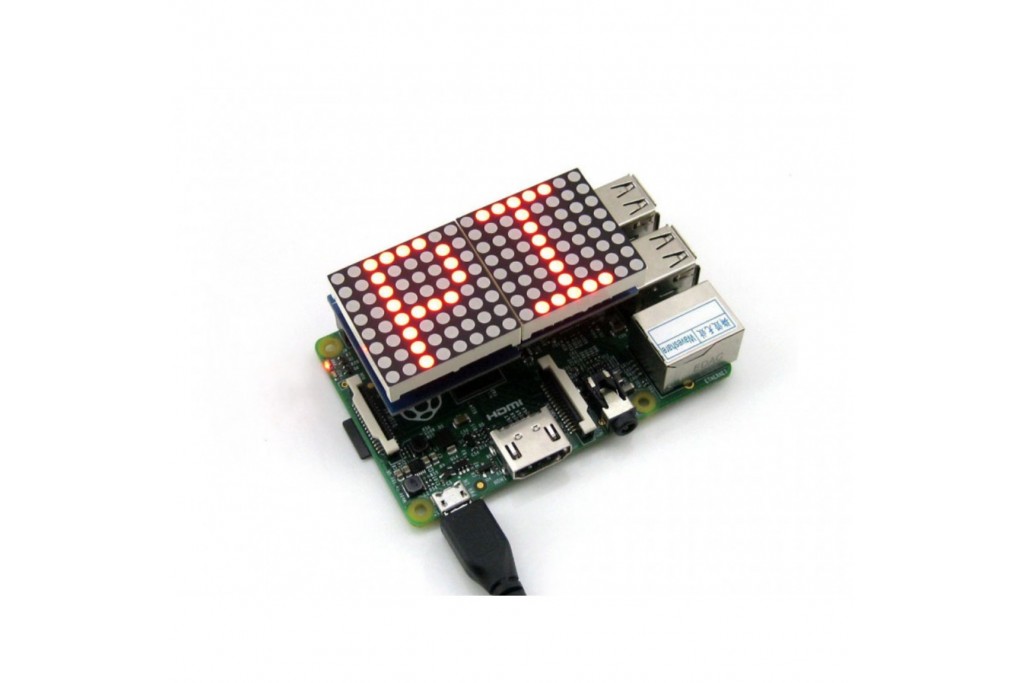

LED Matrix Designed for Raspberry Pi

Features

  • Supports any revision of Raspberry Pi (directly-pluggable)
  • Driver : MAX7219
  • Matrix type : 8 × 8 common cathode LEDs
  • Color : red
  • Dimension : 64.3 × 35.0 × 26.5mm

Interface

PIN NO.SYMBOLDESCRIPTION
1, 17 3.3V power positive (3.3V input)
2, 4 5V power positive (5V input)
3, 5, 7, 8, 10, 11, 12, 13, 15, 16, 18, 21, 22, 26 NC NC
6, 9, 14, 20, 25 GND ground
19 MOSI data input
23 SCK clock
24 CE0 chip selection

Downloads

Development resources:Image, schematic, dimension, software, etc.
Download: www.waveshare.com/wiki/RPi_LED_Matrix
