Raspberry Pi Zero Package B, with Official Case

Reference: WSM0114

Condition: New product

Send to a friend

Send to a friend

Raspberry Pi Zero Package B, with Official Case

Recipient :

Name of your friend ^* :

E-mail address of your friend ^* :

^* Required fields

or Cancel
Print

More info

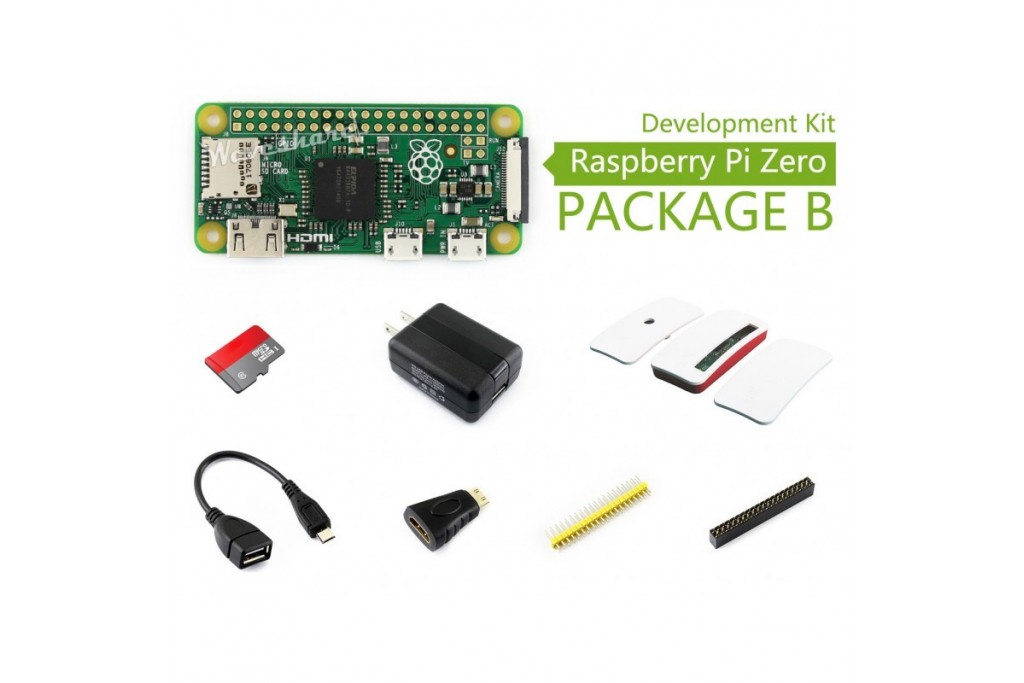

Raspberry Pi Zero V1.3 Development Kit Type B, Micro SD Card, Power Adapter, Official Case, and Basic Components

Overview

This development kit includes: the Raspberry Pi Zero V1.3, 16GB Micro SD Card, 5V 2.5A Power Adapter, the Official Raspberry Pi Zero Case to keep your Pi Zero clean and safe.

The kit also comes with some most basic components you may need to get going with your Pi Zero: Mini HDMI to HDMI Adapter, Micro USB OTG Cable, and 2×20-pin 2.54 male/female pinheader strips.

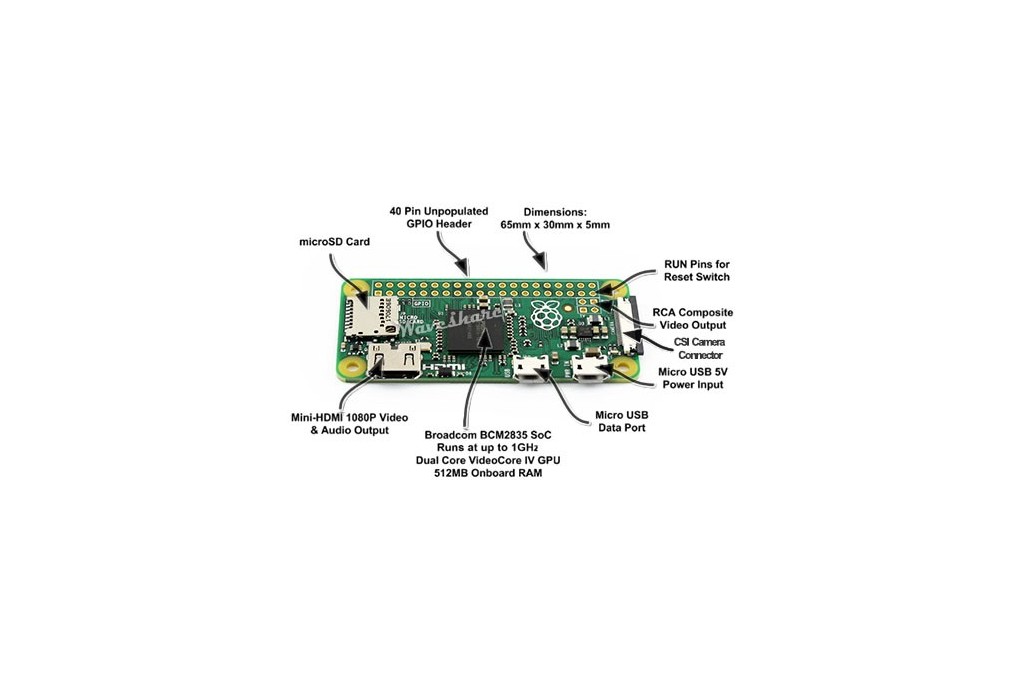

Raspberry Pi Zero Features

Broadcom BCM2835
- 1GHz ARM11 single-core processor
512MB RAM
Micro SD card slot
Mini-HDMI port (1080p60 video output)
Micro-USB power
Micro-USB OTG port
40PIN unpopulated GPIO header (compatible with A+/B+/2B/3B)
CSI camera connector
Composite video header
Composite reset header
Dimension: 65mm x 30mm x 5mm

Selection Guide

Package Contents		Products
Item	Description	Standard	Package A	Package B	Package D	Package E
Raspberry Pi Zero	Raspberry Pi Zero original V1.3	√	√	√	√	√
Mini HDMI to HDMI Adapter	Mini HDMI male to standard HDMI female		√	√	√	√
Micro USB OTG Cable	Micro USB to USB		√	√	√	√
2x20-pin 2.54 male pinheader strip	Can be soldered in the Zero		√	√	√	√
2x20-pin 2.54 female pinheader strip	Can be soldered in the Zero		√	√	√	√
Micro SD Card 16GB	Class 10 16GB Micro SD Card			√	√	√
5V 2.5A Power Adapter	5V 2.5A output			√	√	√
Raspberry Pi Zero Case	Official Case for the Zero			√
USB HUB HAT	USB HUB, USB to UART				√
2.13inch e-Paper HAT (B)	2.13inch e-ink display, three-color: red, black, and white					√
