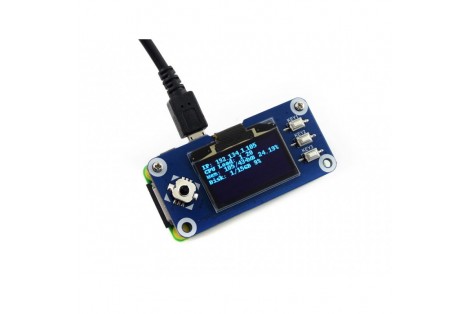

128x64, 1.3inch OLED display HAT for Raspberry Pi

Reference: WSM0117

Condition: New product

Detail about 1.3inch OLED display HAT for Raspberry Pi, 128x64 pixels, SPI/I2C interface

This is an OLED display HAT for Raspberry Pi, 1.3inch diagonal, 128x64 pixels, with embedded controller, communicating via SPI or I2C interface.

Trying to add a control interface for your Pi? This compact display would be the ideal choice.

Standard Raspberry Pi connectivity, compatible with and direct-pluggable onto Raspberry Pi 2B/3B/Zero/Zero W

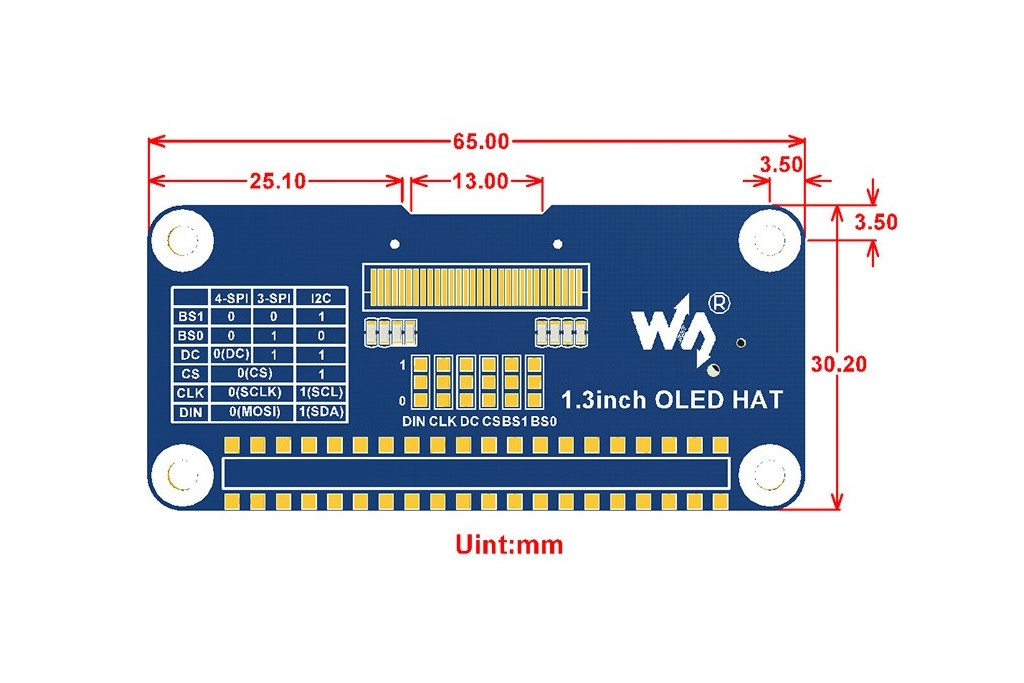

Optional interfaces: 4-wire SPI, 3-wire SPI, I2C, configured via onboard resistor
1x joystick (5-position), 3x pushbuttons, handy and useful
Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)

SYMBOL	Raspberry Pi PIN (BCM)	DESCRIPTION
KEY1	P21	Button 1/GPIO
KEY2	P20	Button 2/GPIO
KEY3	P16	Button 3/GPIO
Joystick Up	P6	Joystick Up
Joystick Down	P19	Joystick Down
Joystick Left	P5	Joystick Left
Joystick Right	P26	Joystick Right
Joystick Press	P13	Joystick Press
SCLK	P11/SCLK	SPI clock input
MOSI	P10/MOSI	SPI data input
DC	P24	Data/Command selection (high for data, low for command)
CS	P8/CE0	Chip selection, low active
RST	P25	Reset, low active
