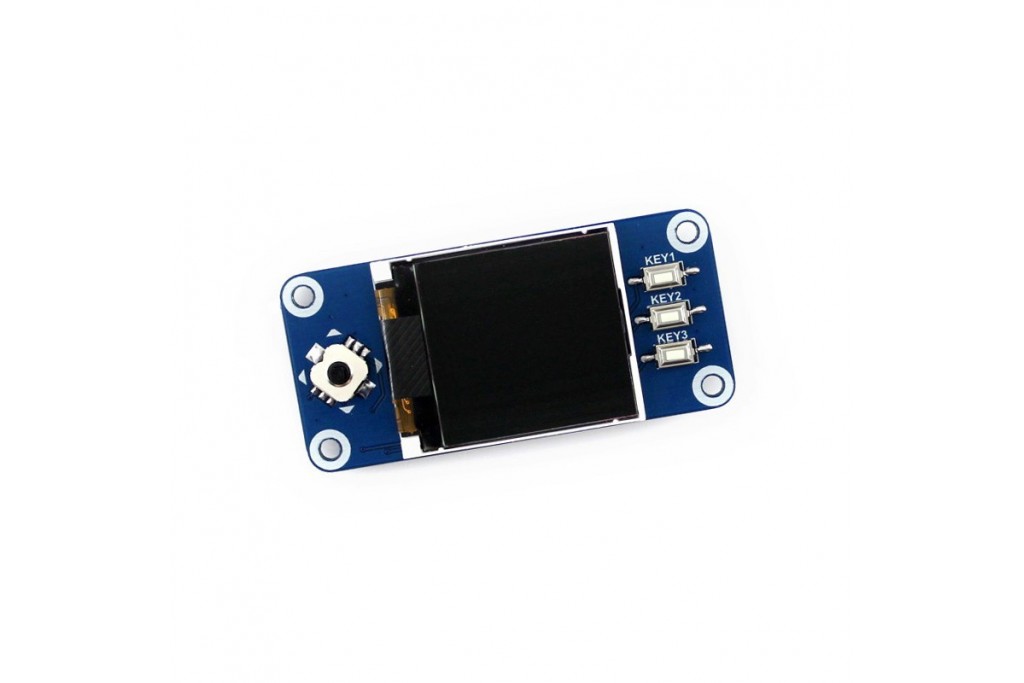

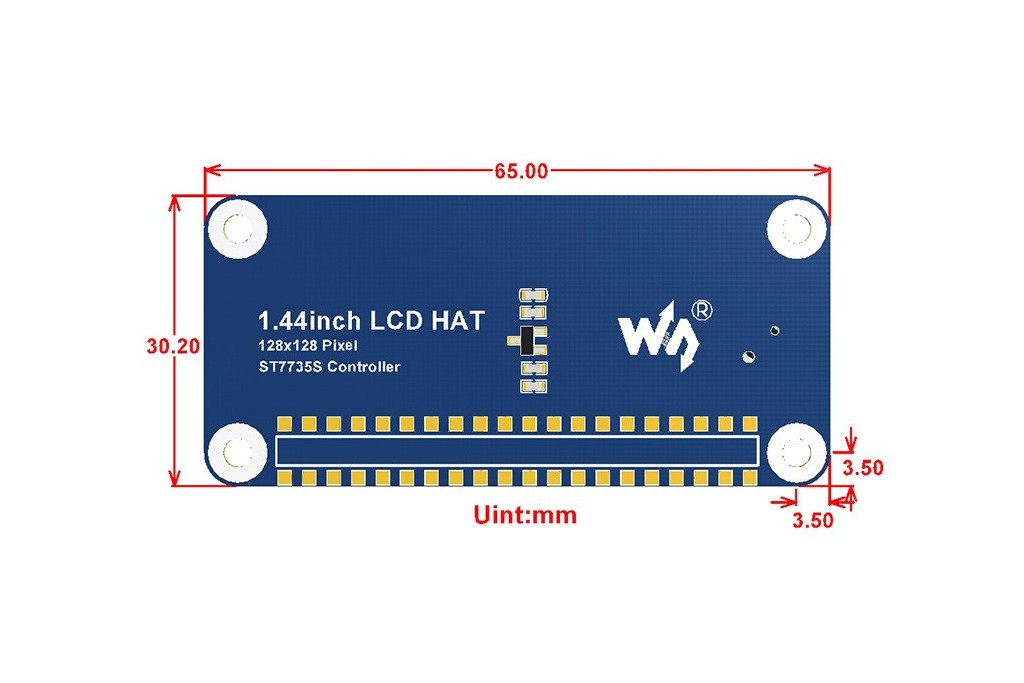

128x128, 1.44inch LCD display HAT for Raspberry Pi

Reference: WSM0118

Condition: New product

Detail about 1.44inch LCD display HAT for Raspberry Pi, 128x128 pixels, SPI interface

This is an LCD display HAT for Raspberry Pi, 1.44inch diagonal, 128x128 pixels, with embedded controller, communicating via SPI interface.

Trying to add a control interface for your Pi? This compact display would be the ideal choice.

Standard Raspberry Pi connectivity, compatible with and direct-pluggable onto Raspberry Pi 2B/3B/Zero/Zero W
1x joystick (5-position), 3x pushbuttons, handy and useful
Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)

SYMBOL	Raspberry Pi PIN (BCM)	DESCRIPTION
KEY1	P21	Button 1/GPIO
KEY2	P20	Button 2/GPIO
KEY3	P16	Button 3/GPIO
Joystick Up	P6	Joystick Up
Joystick Down	P19	Joystick Down
Joystick Left	P5	Joystick Left
Joystick Right	P26	Joystick Right
Joystick Press	P13	Joystick Press
SCLK	P11/SCLK	SPI clock input
MOSI	P10/MOSI	SPI data input
DC	P25	Data/Command selection (high for data, low for command)
CS	P8/CE0	Chip selection, low active
RST	P27	Reset, low active
BL	P24	Backlight
