128x160, General 1.8inch LCD display Module

Reference: WSM0119

Condition: New product

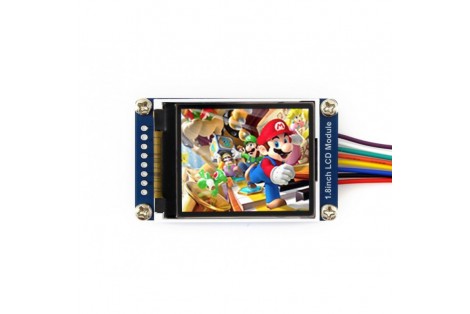

Detail about 1.8inch LCD display Module, 128x160 pixels, SPI interface

This is a general LCD display Module, 1.8inch diagonal, 128x160 pixels, with embedded controller, communicating via SPI interface.

SPI interface, requires minimum GPIO for controlling
Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)

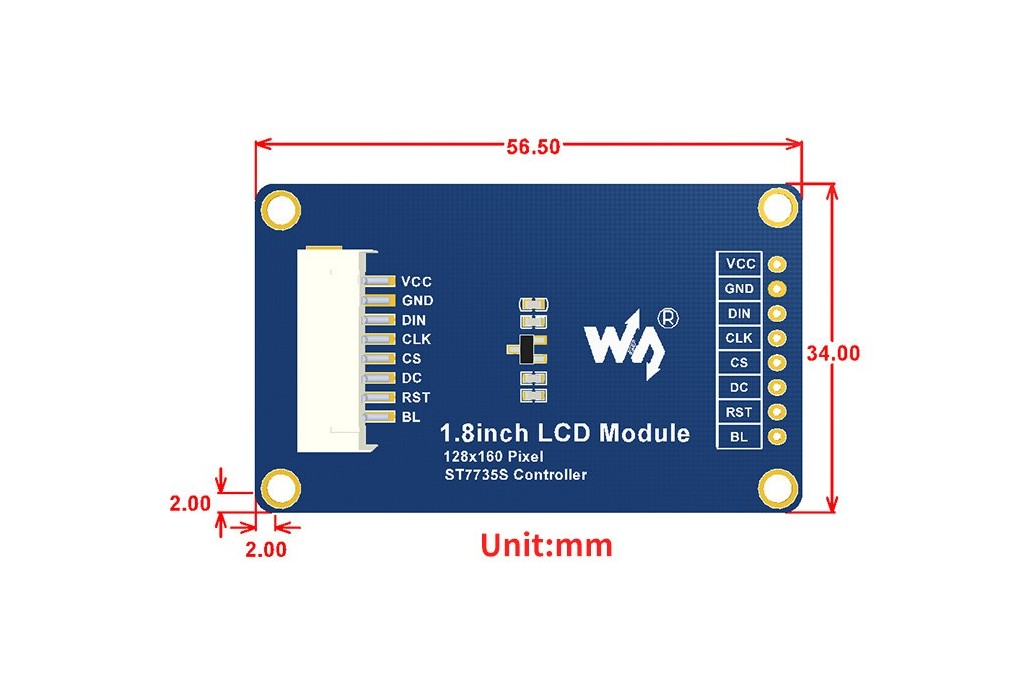

SYMBOL	DESCRIPTION
VCC	Power (3.3V input)
GND	Ground
DIN	SPI data input
CLK	SPI clock input
CS	Chip selection, low active
DC	Data/Command selection (high for data, low for command)
RST	Reset, low active
BL	Backlight
