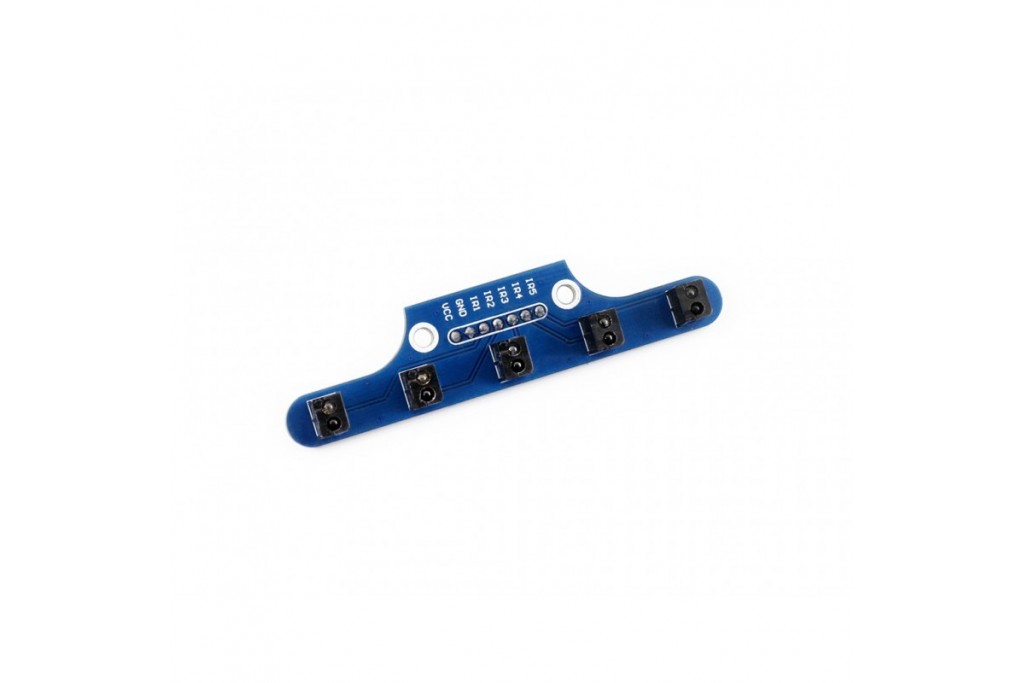

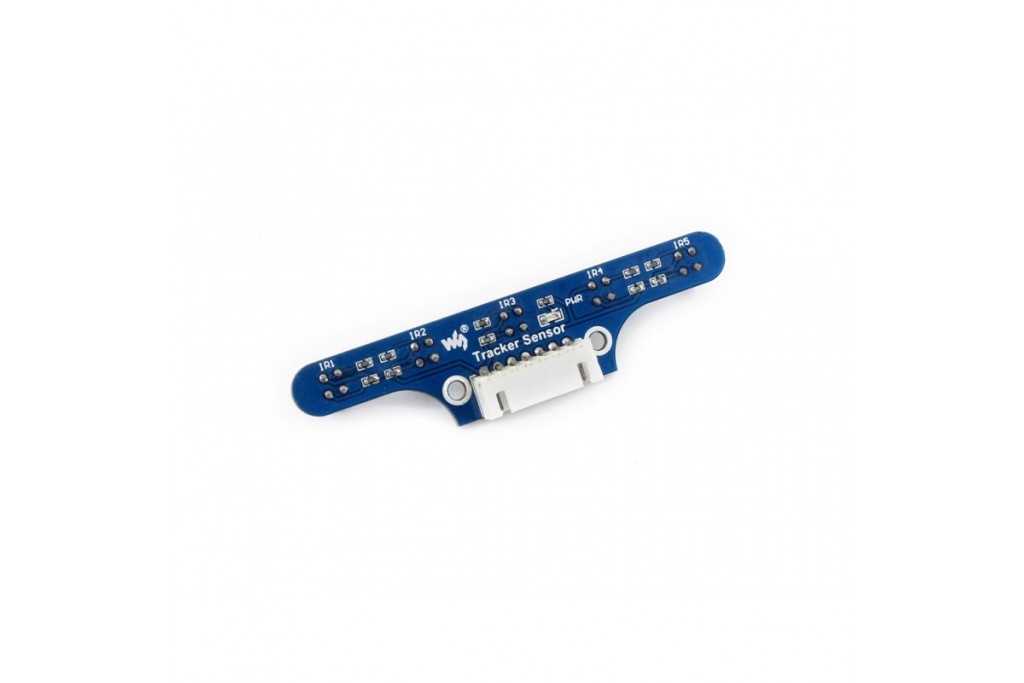

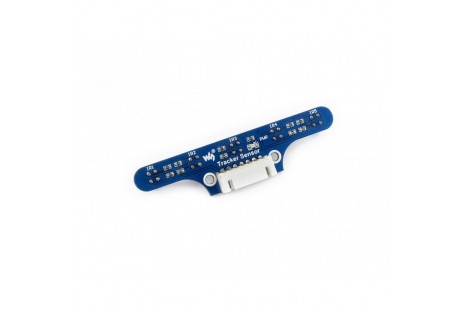

Tracker Sensor, Infrared Line Tracking

WSM0123

New product

More info

Detail about of Tracker Sensor, robot infrared line tracking

Overview

  • 5-ch ITR20001/T infrared detector, high sensitivity, anti-jamming, stable performance
  • High precision analog output, combined with PID control algorithm, allows the robot tracks lines more stable

Specifications

  • Power: 3.3V ~ 5V
  • Dimension: 78mm × 18mm
  • Detector spacing: 16mm
  • Mounting holes size: 3mm
  • Detection range: 1cm ~ 5cm

Applications

  • Robot line tracking

How to Use

In the case of working with a MCU:

  • VCC ↔ 3.3V ~ 5V
  • GND ↔ GND
  • IR1 ↔ MCU.IO (ch1, analog output)
  • IR2 ↔ MCU.IO (ch2, analog output)
  • IR3 ↔ MCU.IO (ch3, analog output)
  • IR4 ↔ MCU.IO (ch4, analog output)
  • IR5 ↔ MCU.IO (ch5, analog output)

Dimensions

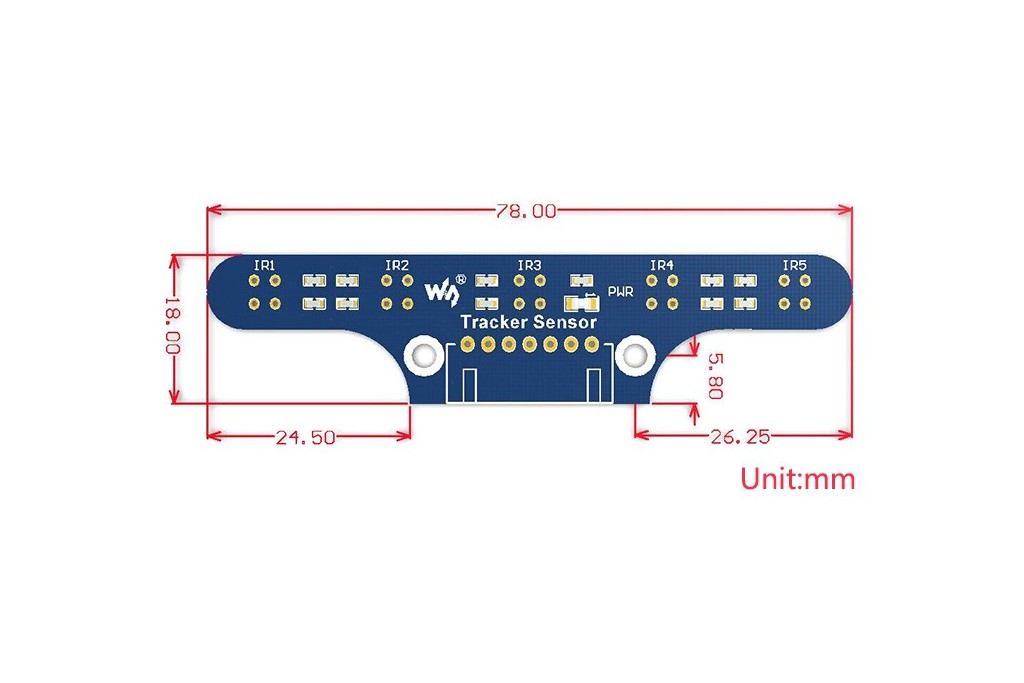

Tracker Sensor dimensions

Development Resources

Wiki : www.waveshare.com/wiki/Tracker_Sensor
