4inch RPi LCD (A), 480x320, IPS

More info

Details about 4 inch Touch Screen TFT LCD Designed for Raspberry Pi

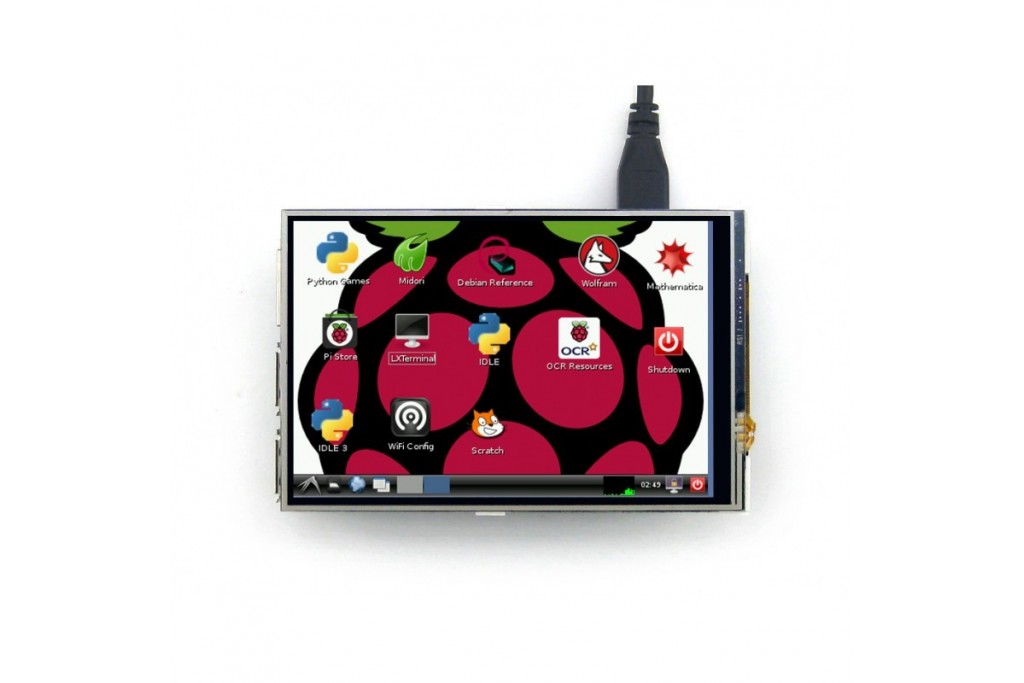

Features

Designed for Raspberry Pi
Supports any revision of Raspberry Pi (directly-pluggable)
Drivers provided (works with your own Raspbian/Ubuntu directly)
IPS technology, high quality and perfect displaying from very wide viewing angle
320×480 resolution
Convenient Men-Machine interface for Raspberry Pi, combined with the portable power, DIY anywhere anytime
Supports Raspbian system, enables your system to:
- Take photos by touching (up to 17 camera modes)
- Support software keyboard (system interaction without keyboard/mouse)

Key Parameters

LCD Type	TFT
LCD Interface	SPI
Touch Screen Type	Resistive
Touch Screen Controller	XPT2046
Colors	65536
Backlight	LED
Resolution	320*480 (Pixel)
Aspect Ratio	8:5
Power Consumption	TBD
Backlight Current	TBD
Operating Temp. (℃)	TBD

Photos

Interface

PIN NO.	SYMBOL	DESCRIPTION
1, 17	3.3V	Power positive (3.3V power input)
2, 4	5V	Power positive (5V power input)
3, 5, 7, 8, 10, 12, 13, 15, 16	NC	NC
6, 9, 14, 20, 25	GND	Ground
11	TP_IRQ	Touch Panel interrupt, low level while the Touch Panel detects touching
18	LCD_RS	Instruction/Data Register selection
19	LCD_SI / TP_SI	SPI data input of LCD/Touch Panel
21	TP_SO	SPI data output of Touch Panel
22	RST	Reset
23	LCD_SCK / TP_SCK	SPI clock of LCD/Touch Panel
24	LCD_CS	LCD chip selection, low active
26	TP_CS	Touch Panel chip selection, low active

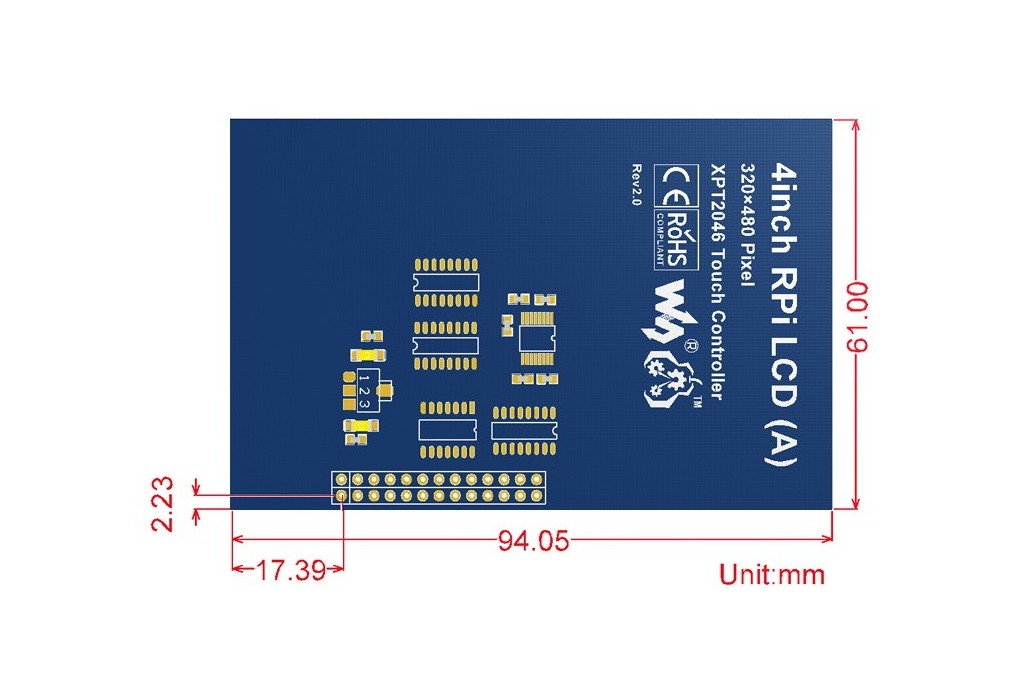

External Dimension

Downloads

Development resources:Image, schematic, dimension, software, etc.
Download: www.waveshare.com/wiki/4inch_RPi_LCD_(A)

FAQ

Why the LCD doesn't work with my Raspbian?: To use the LCD with the Raspberry Pi official image, driver should be installed first. Please refer to the user manual.
However, for the first testing, you may want to use our provided image directly.
Why the LCD still doesn't work with the Waveshare provided image?: Make sure the hardware connection is correct and connects fine.
Make sure the image in TF card is burnt correctly.
The PWR will keep on and the ACT will keep blinking when the Raspberry Pi starts up successfully, in case both of the two LEDs keep on, it is possible that the image was burnt incorrectly OR the TF card was in bad contact.
Which power supply should I use?: It is recommended to use a 5V/2A power adapter for the Raspberry Pi other than USB connection, otherwise the Pi may failed to start up because the PC's USB port might have not enough power.
For large size LCDs, say, 10inch diagonal or more, another stand-alone power adapter is also required to provide power to the LCD.

For more info, please check the wiki page.
