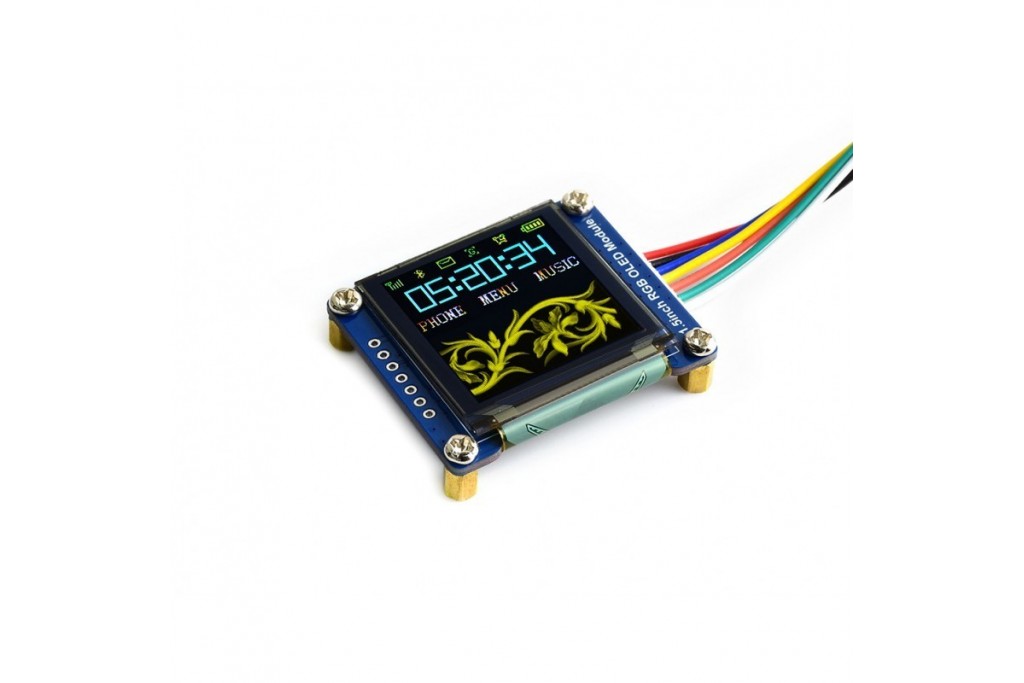

1.5inch RGB OLED Module IC Test Board View larger

128x128, General 1.5inch RGB OLED display Module, 16-bit high color

WSM0129

New product

More info

1.5inch RGB OLED display module, 128x128 pixels, 16-bit high color, SPI interface

Overview

This is a general RGB OLED display Module, 1.5inch diagonal, 128x128 pixels, 16-bit high color (65K colors), with embedded controller, communicating via SPI interface.

Features

  • 128x128 high resolution, 65K colors, clearly displays colorful images
  • Supports 4-wire SPI OR 3-wire SPI interface, configured via onboard resistor
  • Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)

Specifications

  • Driver: SSD1351
  • Interface: 4-wire SPI, 3-wire SPI
  • Display color: RGB, 65K colors
  • Resolution: 128x128
  • Viewing angle: >160°
  • Operating voltage: 3.3V / 5V
  • Dimension: 44.5 x 37 (mm)

Interface

SYMBOLDESCRIPTION
VCC Power (3.3~5V input)
GND Ground
DIN Data input
CLK Clock data input
CS Chip selection, low active
DC 4-wire SPI: Data/Command selection (high for data, low for command)
3-wire SPI: Connects to GND, keeps low
RST Reset, low active

There are two available drive interfaces for this RGB OLED module: 4-wire SPI (default) and 3-wire SPI:

 BSDC
4-wire SPI 0 DC
3-wire SPI 1 Connects to GND

Dimensions

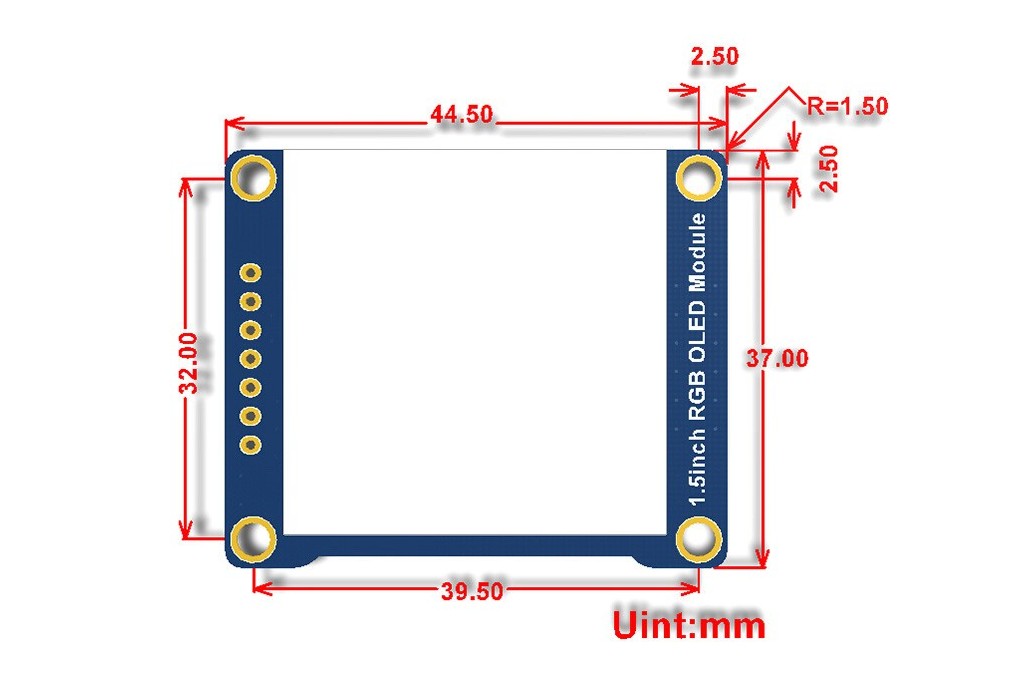

1.5inch RGB OLED Module dimensions

Development Resources

Wiki : www.waveshare.com/wiki/1.5inch_RGB_OLED_Module

Selection Guide

Part NumberTypeColorResolutionDisplay Size (mmxmm)InterfacesDriverDimension (mmxmm)Pinheader
0.91inch OLED Module OLED White 128x32 22.38x5.58 I2C SSD1306 36.0x12.5 PH2.0 connector
0.95inch RGB OLED (A) OLED 65K colorful 96x64 20.14x13.42 SPI(4-wire SPI) SSD1331 31.7x37.0 angled/horizontal
0.95inch RGB OLED (B) OLED 65K colorful 96x64 20.14x13.42 SPI(4-wire SPI) SSD1331 31.7x37.0 straight/vertical
0.96inch LCD Module IPS 65K colorful 160x80 21.70x10.80 4-wire SPI ST7735S 32.5x26.0 PH2.0 connector
0.96inch OLED (A) OLED 1/4 yellow section, 3/4 blue section 128x64 21.7x11.2 3-wire SPI, 4-wire SPI, I2C SSD1306 33.0x33.5 angled/horizontal
0.96inch OLED (B) OLED 1/4 yellow section, 3/4 blue section 128x64 21.7x11.2 3-wire SPI, 4-wire SPI, I2C SSD1306 33.0x33.5 straight/vertical
1.3inch LCD Module IPS 65K colorful 240x240 23.40x23.40 4-wire SPI ST7789 45.0x31.0 PH2.0 connector
1.3inch OLED (A) OLED Blue 128x64 29.42x14.7 3-wire SPI, 4-wire SPI, I2C SH1106 40.5x37.5 angled/horizontal
1.3inch OLED (B) OLED Blue 128x64 29.42x14.7 3-wire SPI, 4-wire SPI, I2C SH1106 40.5x37.5 straight/vertical
1.5inch OLED Module OLED White (16 gray scale) 128x128 26.86x26.86 4-wire SPI, I2C SSD1327 44.5x37.0 PH2.0 connector
1.5inch RGB OLED Module OLED 65K colorful 128x128 26.86x26.86 3-wire SPI, 4-wire SPI SSD1351 44.5x37.0 PH2.0 connector
1.8inch LCD Module TFT 65K colorful 160x128 34.50x28.30 4-wire SPI ST7735S 56.5x34.0 PH2.0 connector

Note: the 0.96inch OLED consists of 1/4 yellow upper section and 3/4 blue lower section, not a regular dual-color display.
