PL2303 USB UART Board (micro) IC Test Board

View larger

PL2303 USB UART Board (micro) IC Test Board

Reference: WSM0134

Condition: New product

Send to a friend

Send to a friend

PL2303 USB UART Board (micro) IC Test Board

Recipient :

Name of your friend ^* :

E-mail address of your friend ^* :

^* Required fields

or Cancel
Print

More info

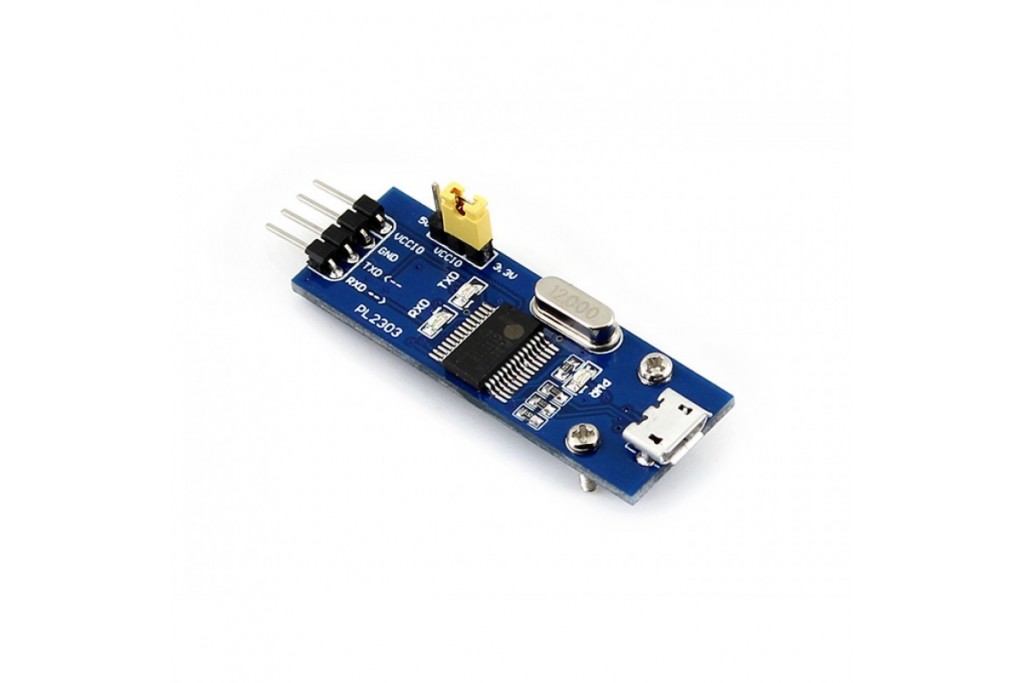

USB TO UART solution with USB micro connector

Features

PL2303TA onboard (the latest device, compatible with PL2303HXA)
Supports windows XP/7/8/8.1/10/...
3 power mode : 5V output, 3.3V output, or powered by target board (3.3V-5V)
3 LEDs: TXD LED, RXD LED, POWER LED

How to Use

In the case of working with a MCU:

VCCIO ↔ 3.3V or 5V output (the module is powered from USB, onboard jumper should be shorted to 3.3V or 5V)
GND ↔ GND
TXD ↔ MCU.RX (signal direction: MCU.RX << PL2303 << PC.TX)
RXD ↔ MCU.TX (signal direction: MCU.TX >> PL2303 >> PC.RX)

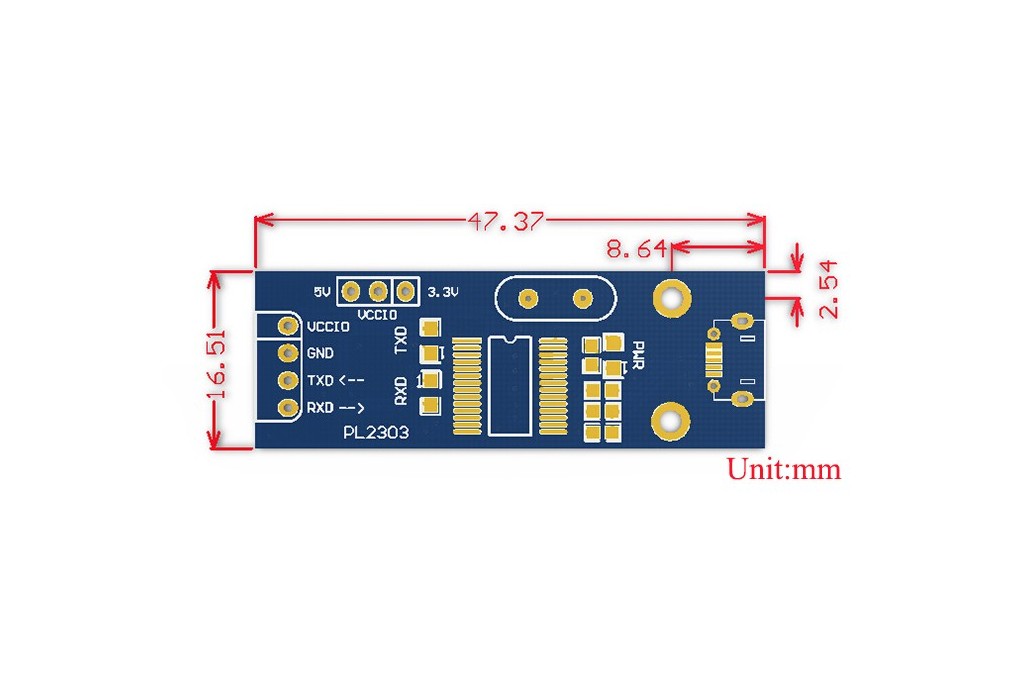

Dimension

Development Resources

Wiki : www.waveshare.com/wiki/PL2303_USB_UART_Board_(micro)
