RPi Camera V2

WSM0141

New product

More info

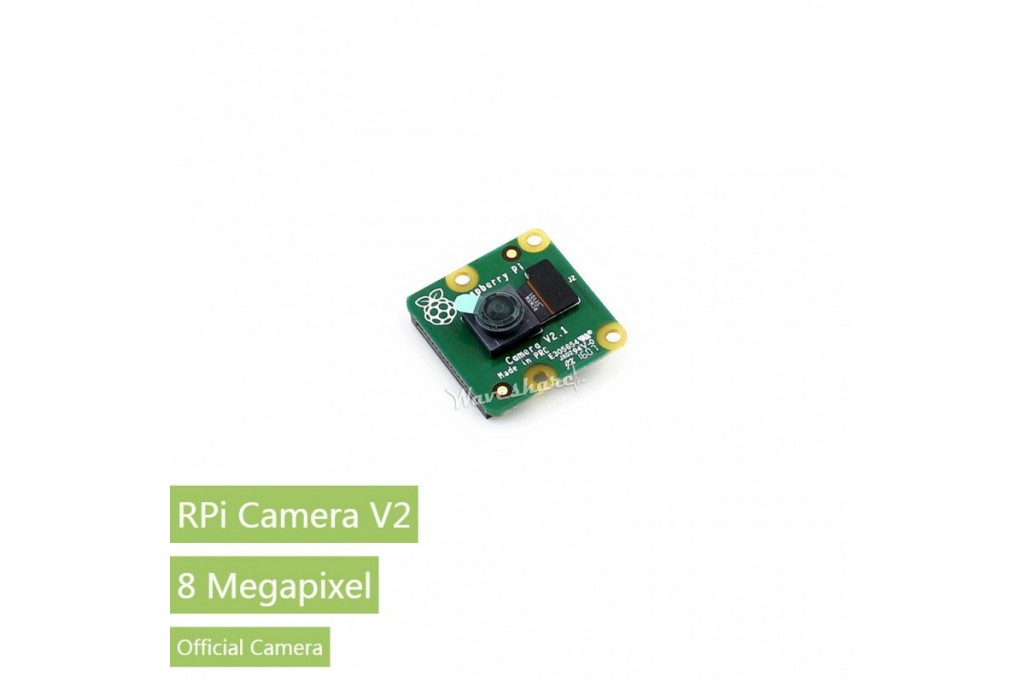

Official Raspberry Pi Camera Board V2

Features

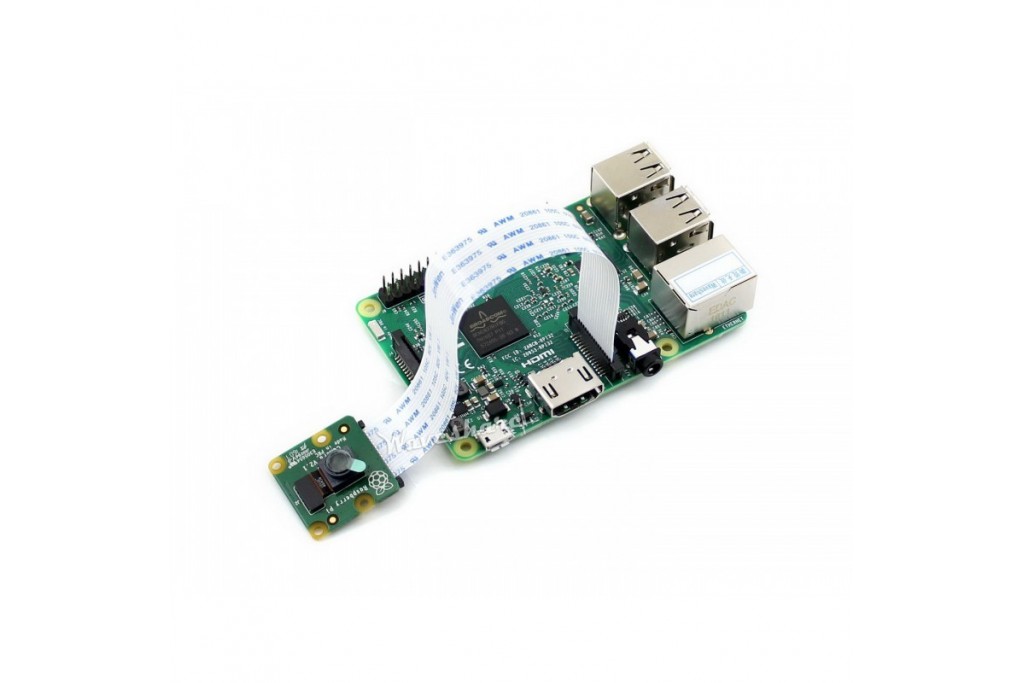

  • Official Raspberry Pi Camera Board, supports Raspberry Pi and Jetson Nano
  • Sony IMX219 8-megapixel sensor
  • Camera specifications
    • CCD size : 1/4inch
    • Aperture (F) : 2.0
    • Focal Length : 3.04mm
    • Angle of View (diagonal) : 62.2 degree
  • 3280 × 2464 still picture resolution
  • Support 1080p30, 720p60 and 640x480p90 video record
  • Dimension: 25mm × 24mm × 9mm

Note: to use the camera with Raspberry Pi Zero / Zero W / Zero WH, you need to buy a specific cable: Raspberry Pi Zero v1.3 Camera Cable

Development Resources

Wiki : www.waveshare.com/wiki/RPi_Camera_V2

Selection Guide

PARTNUMBERPIXELSSENSORADJUSTABLE FOCUS DISTANCEINFRARED NIGHT VISIONANGLE OF VIEW (DIAGONAL) (DEGREE)MANUFACTURERDIMENSIONS (MM)RECOMMENDATION1
RPi Camera V2 8 Mega IMX219 × × 62.2 element14 25x24x9 ★★★☆
RPi NoIR Camera V2 8 Mega IMX219 × √ 62.2 element14 25x24x9 ★★★☆
RPi Camera (B) 5 Mega OV5647 √ × 60.6 Waveshare 32x32 ★★★
RPi Camera (D) 5 Mega OV5647 × × 66 Waveshare 25x24x9 ★★
RPi Camera (E) 5 Mega OV5647 × √ 69.1 Waveshare 25x24x6 ★★
RPi Camera (F) 5 Mega OV5647 √ √ 75 Waveshare 25x24 ★★★★
RPi Camera (G) 5 Mega OV5647 √ × 160 Waveshare 25x24 ★★★★
RPi Camera (H) 5 Mega OV5647 √ √ 160 Waveshare 25x24 ★★★★
RPi Camera (I) 5 Mega OV5647 √ × 170 Waveshare 32x32 ★★★
RPi Camera (M) 5 Mega OV5647 √ × 200 Waveshare 25x24 ★★★☆
RPi IR-CUT Camera2 5 Mega OV5647 √ √ 75.7 Waveshare 31x32 ★★★★
RPi IR-CUT Camera (B)2 5 Mega OV5647 √ √ 40 Waveshare 31x32 ★★★★
RPi Zero V1.3 Camera3 5 Mega OV5647 × × 69.1 Waveshare 60x11.5x5 ★★★
RPi FPC Camera 5 Mega OV5647 × × 72 Waveshare 300x16x5 ★★★
  1. The recommendation is considered from sales report and cost performance.
  2. While normal IR cameras will take curious reddish pictures by daylight for lacking of IR filter in the CCD, the RPi IR-CUT Camera can take better pictures in correct color by daylight, and still features the ability to see in the dark.
  3. RPi Zero V1.3 Camera supports only Raspberry Pi Zero V1.3, Raspberry Pi Zero W, and Raspberry Pi Zero WH
